Entrées de graisses

Système d’ajout d’humidité HC 50

PRODUIT

for moisturizing cake (other crops requiring moisture) in soybean, sunflower processing lines (or other lines)

CARACTÉRISTIQUES

Introducing moisture into the cake, %

5 ... 10

Spraying capacity of one nozzle, l / min.

25 ... 50

Number of nozzles, pcs.

2

Tank volume, l

1000

Length, mm

1397

Width, mm

1268

Height, mm

1217

Installed power, kW

0,5

Allows you to controllably and evenly increase the moisture content of the cake

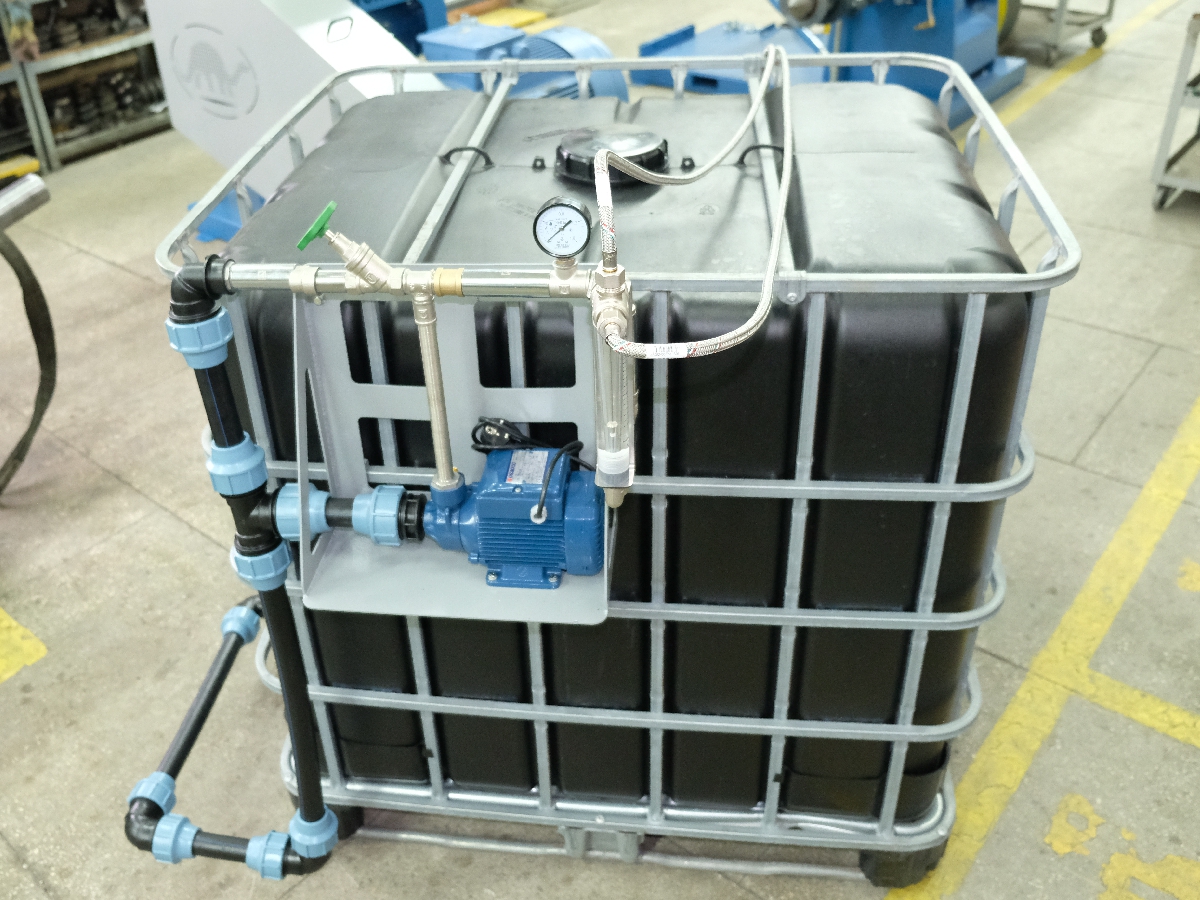

Oil cake humidifier HC-50 is used to humidify oil cake (other crops requiring humidification) in lines for
processing of soybeans, sunflowers, rapeseed or other crops.

The principle of operation is as follows: by adjusting the liquid supply system for a given amount of humidification, you need to turn on the pump.
The regulation is carried out by means of a direct flow valve and a bypass valve.



The humidifier can be made in 2 versions:

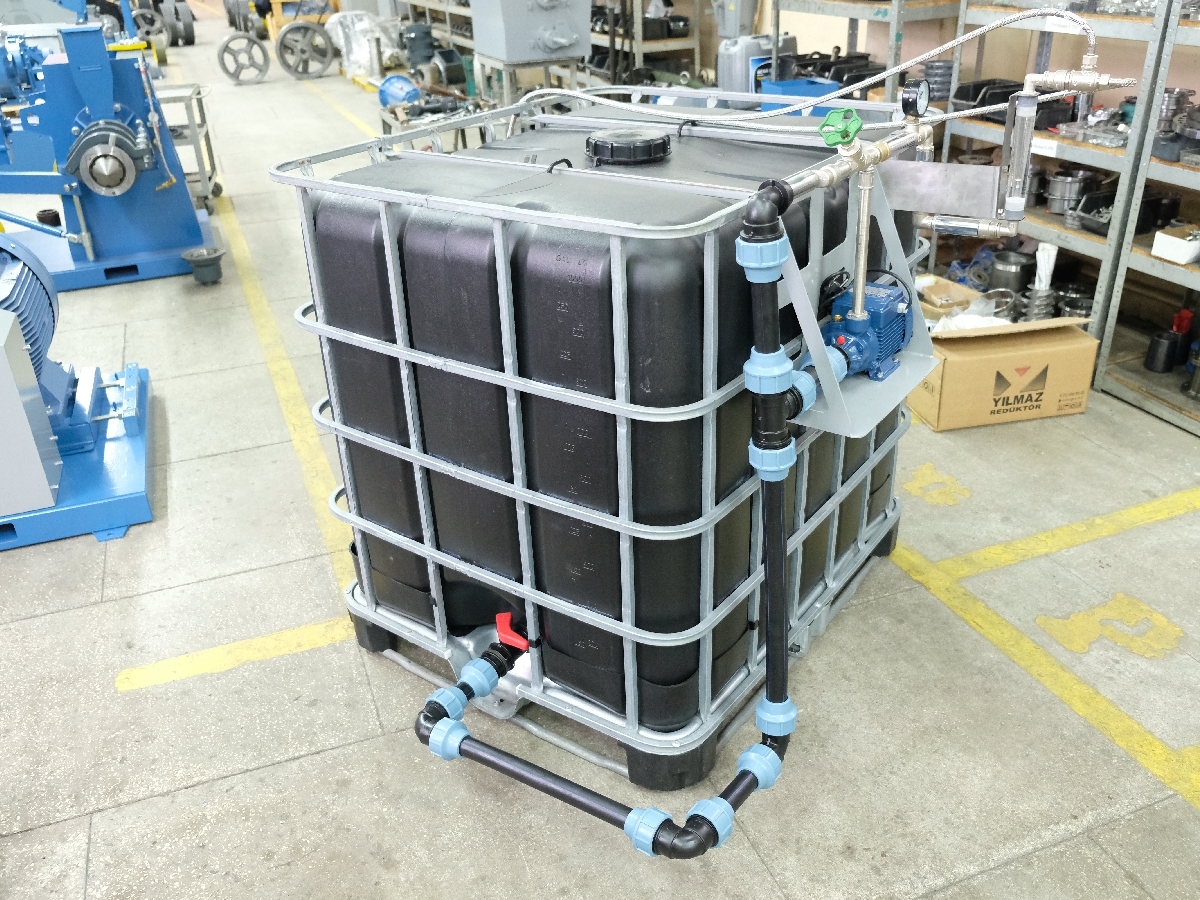

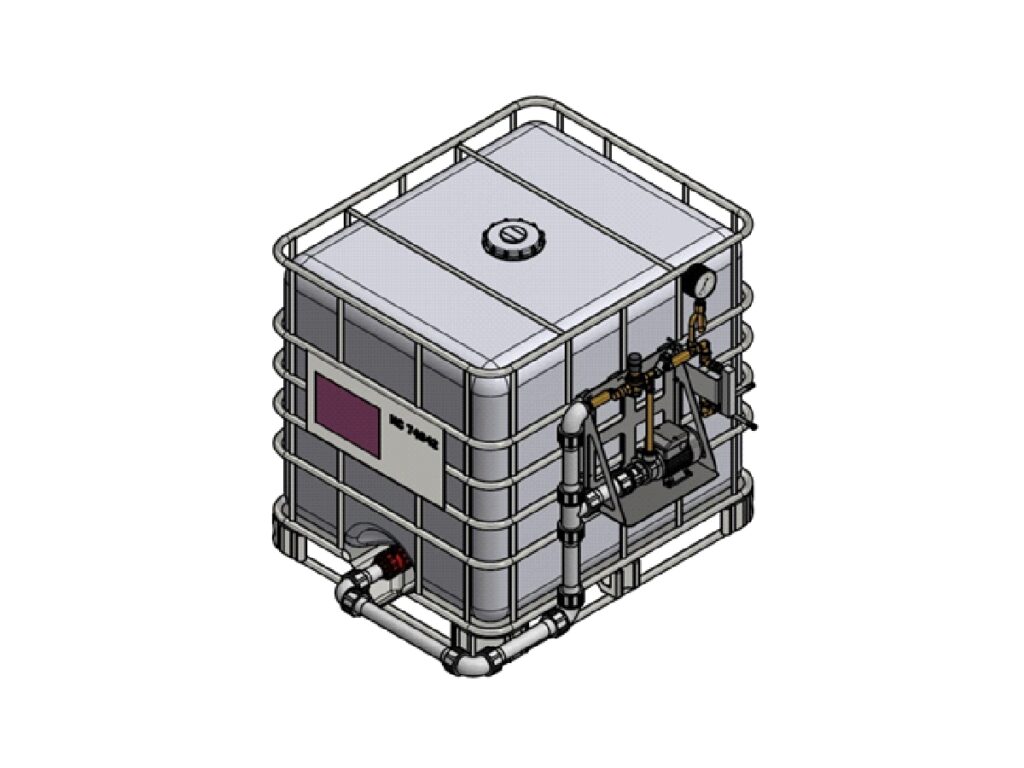

  • HC-50.00.00.000 – Oil cake humidifier with euro cube, used in enterprises that do not have water supply in the workshop

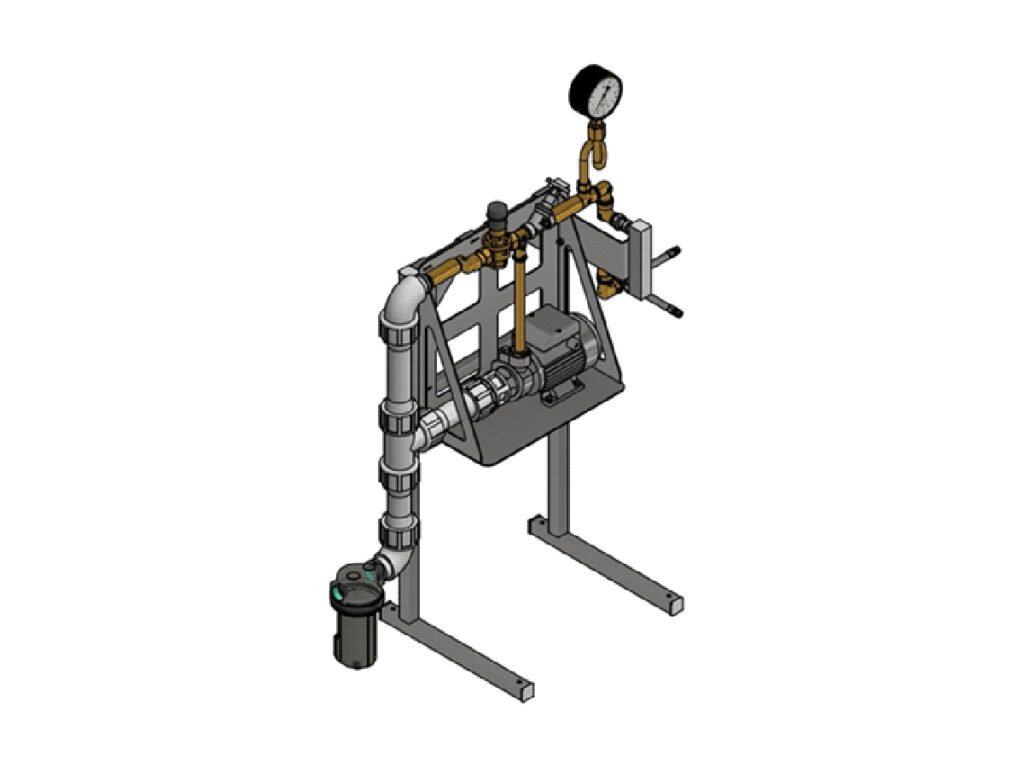

  • HC-50.00.00.000-01 – Oil cake humidifier (option with a stand), used in enterprises with a built-in water supply system in the workshop

Ask a question

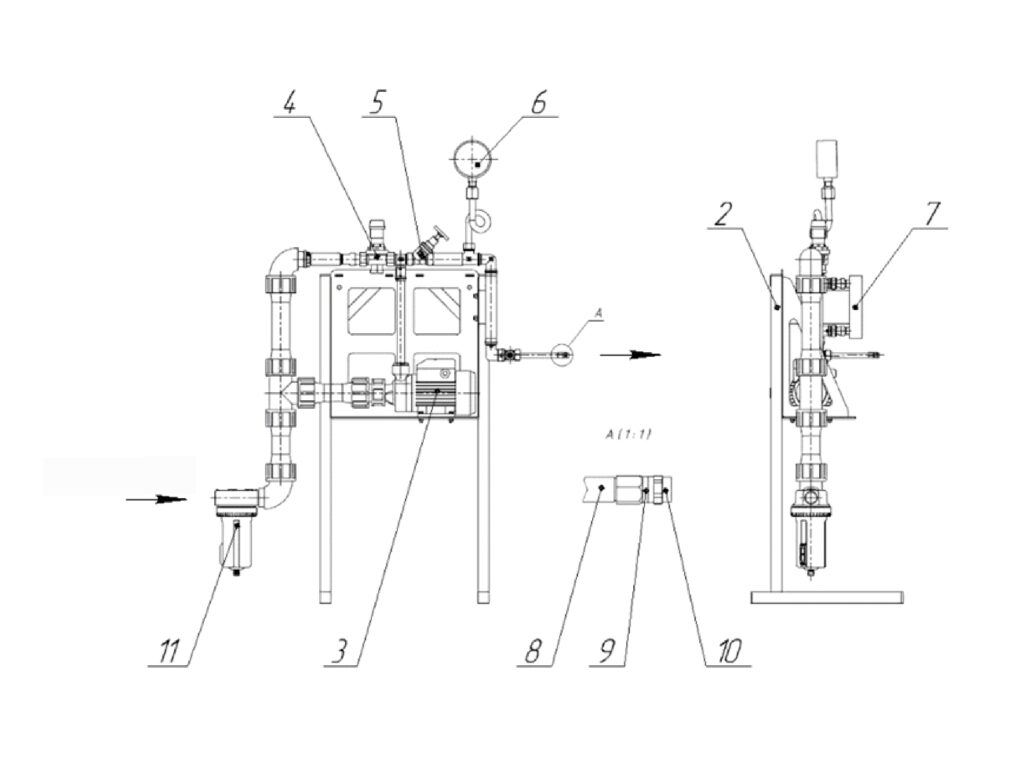

The humidifier consists of the following parts: a container or stand (depending on the version), a pump frame, a centrifugal pump and a fluid supply control system.

The system for regulating the supply of liquid is designed to regulate the required amount of water through the nozzles to achieve the required moisture in the cake.

  1. Capacity
  2. Stand
  3. Centrifugal pump
  4. Bypass valve
  5. Direct-flow valve
  6. Pressure gauge
  7. Rotameter
  8. Sleeve
  9. Gaskets
  10. Axial nozzles
  11. Filter
