Convoyeur ondulé à parois latéral IBC
CRÉÉ POUR
- feed pellets transporting, texturized (TVP) products transporting
PRODUIT
feed pellets, TVP products
Matière première
delicate transporting of feed or food products
CARACTÉRISTIQUES
Productivity in producing of feed pellets
up to 1500 kg / h
Bulk weight of raw material
250 ... 850 kg / m³
Belt width
400 / 500 / 600 / 700 mm
Rotation angle
0 / 15 / 30 / 45 / 60 grad
Inclination angle of straight section
60 grad
PVC Belt
corrugated board with cross bars
POWER
0,37 / 0,75 / 1,5 kW
For gentle handling of feed pellets between processing units
POSSIBILITÉ
- PVC Belt: corrugated board with cross bars
SÉQUENCE DE TRAVAIL
- Raw materials are loaded into the belt of the horizontal section of the conveyor

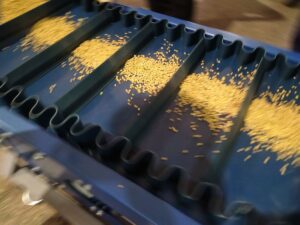

- The pellets are held in place by transverse strips fixed to the belt
- The belt moves the pellet along the inclined and horizontal sections of the feeder and lifts the product up
- Product is discharged from the upper section of the conveyor
Assurance qualité
Warranty period is 1 year
- all machines are certified according to ISO 9001: 2015
- our feeder are designed for continuous and trouble-free operation

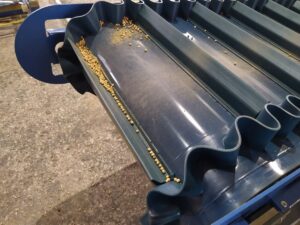

Raw materials are transported in tape cells formed from glued fences
