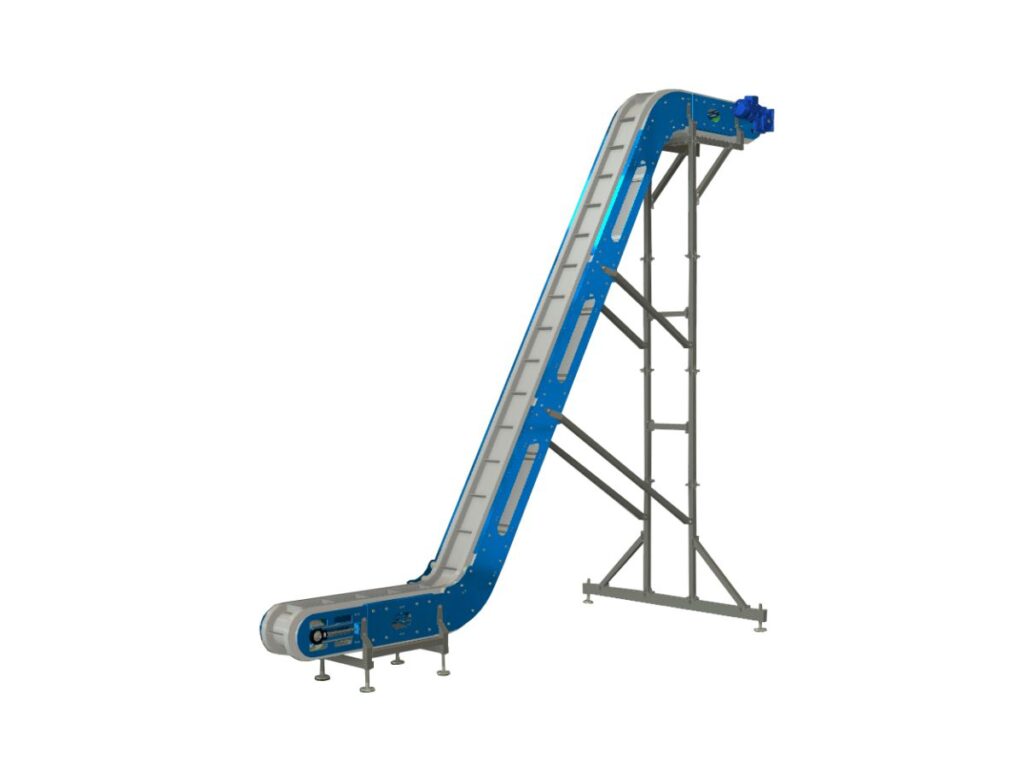

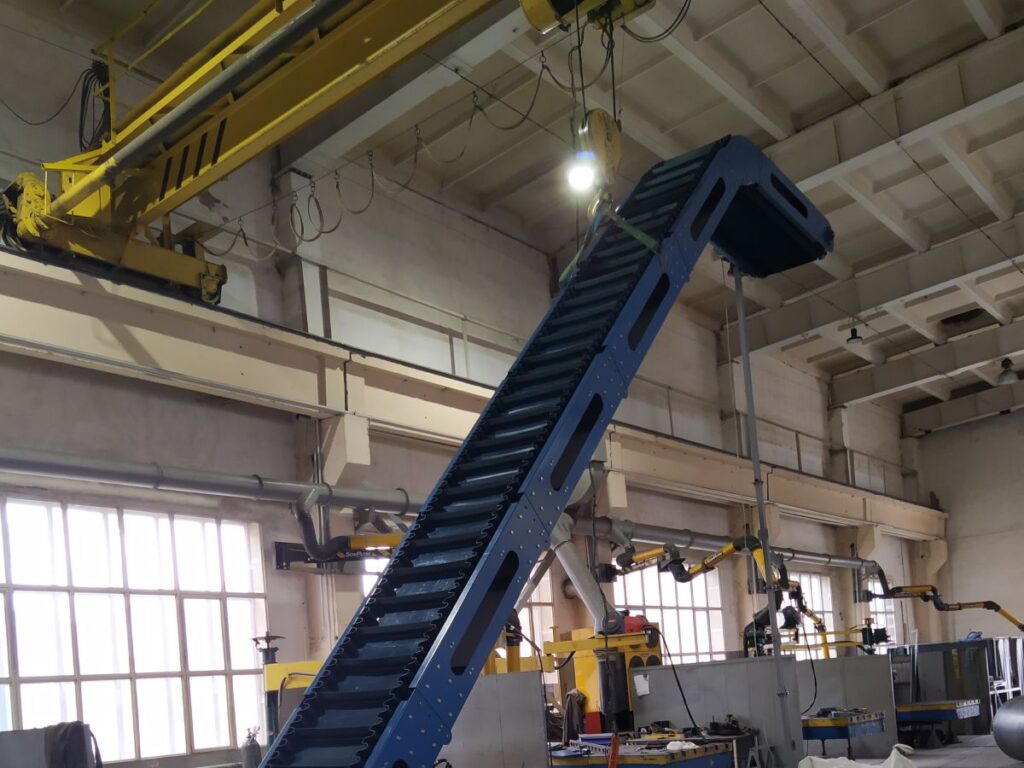

CORRUGATED SIDEWALL CONVEYOR IBC

USED FOR

  • feed pellets transporting, texturized (TVP) products transporting

FINAL PRODUCT

feed pellets, TVP products

RAW MATERIALS

feed pellets, TVP products

delicate transporting of feed or food products

TECHNICAL SPECIFICATIONS

Productivity in producing of feed pellets

up to 1500 kg / h

Bulk weight of raw material

250 ... 850 kg / m³

Belt width

400 / 500 / 600 / 700 mm

Rotation angle

0 / 15 / 30 / 45 / 60 grad

Inclination angle of straight section

60 grad

PVC Belt

corrugated board with cross bars

POWER

0,37 / 0,75 / 1,5 kW

For gentle handling of feed pellets between processing units

ADVANTAGES

  • PVC Belt: corrugated board with cross bars

SEQUENCE OF OPERATION

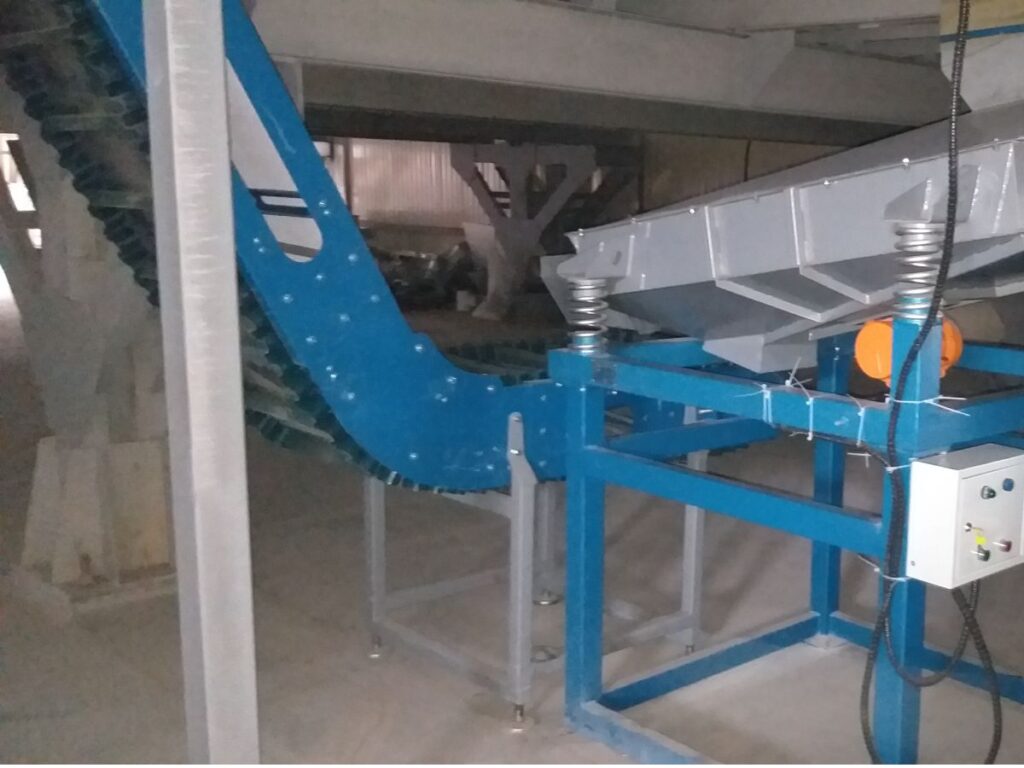

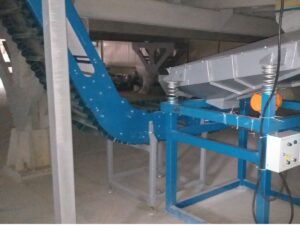

  • Raw materials are loaded into the belt of the horizontal section of the conveyor

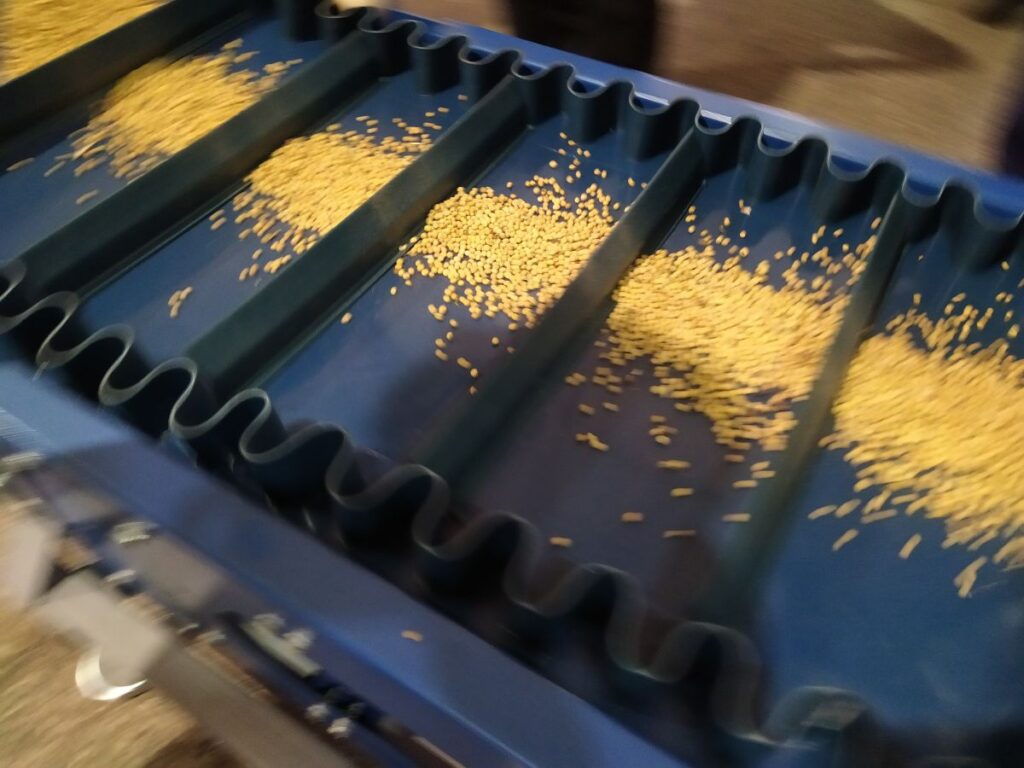

  • The pellets are held in place by transverse strips fixed to the belt
  • The belt moves the pellet along the inclined and horizontal sections of the feeder and lifts the product up

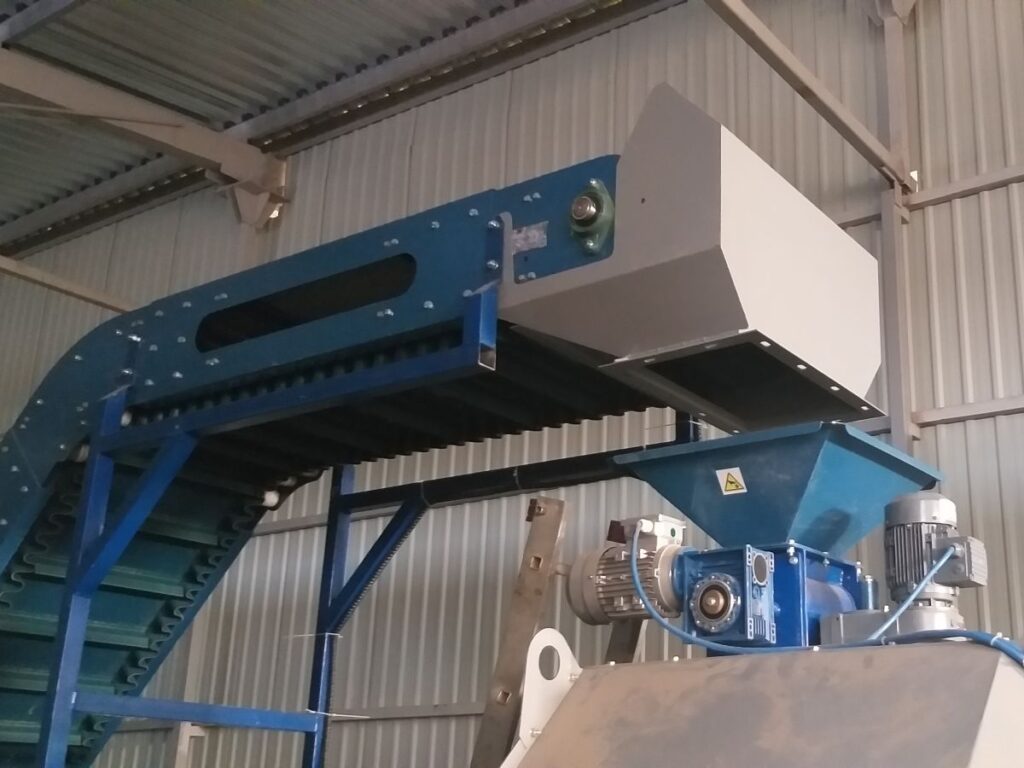

  • Product is discharged from the upper section of the conveyor

QUALITY ASSURANCE

Warranty period is 1 year

  • all machines are certified according to ISO 9001: 2015
  • our feeder are designed for continuous and trouble-free operation
WARRANTY SUPPORT

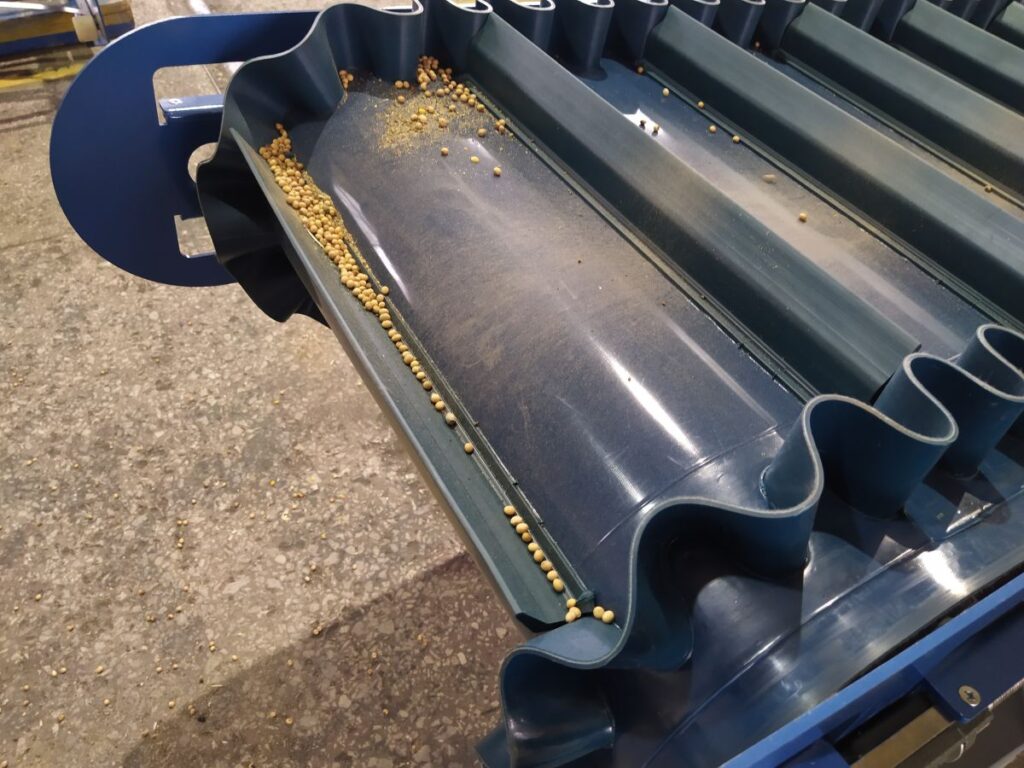

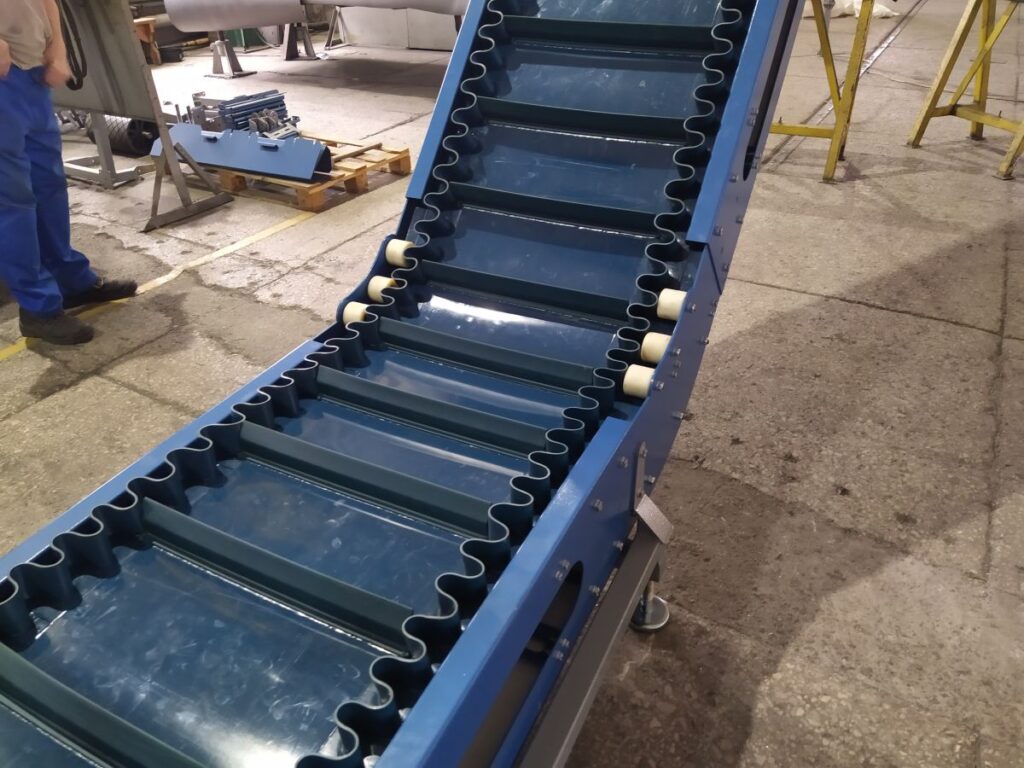

Raw materials are transported in tape cells formed from glued fences
