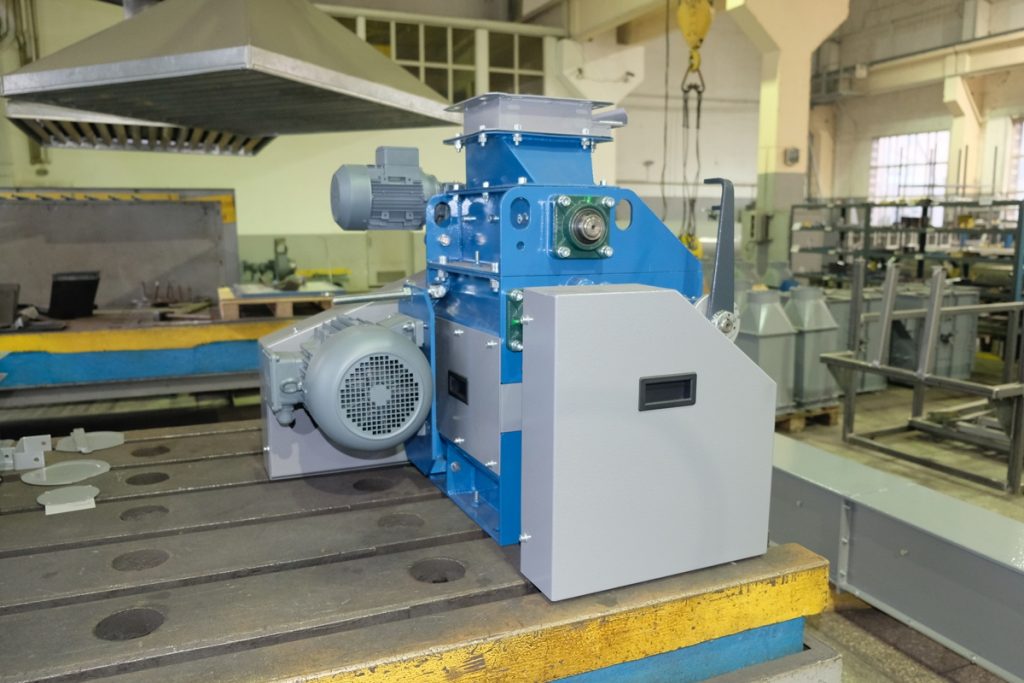

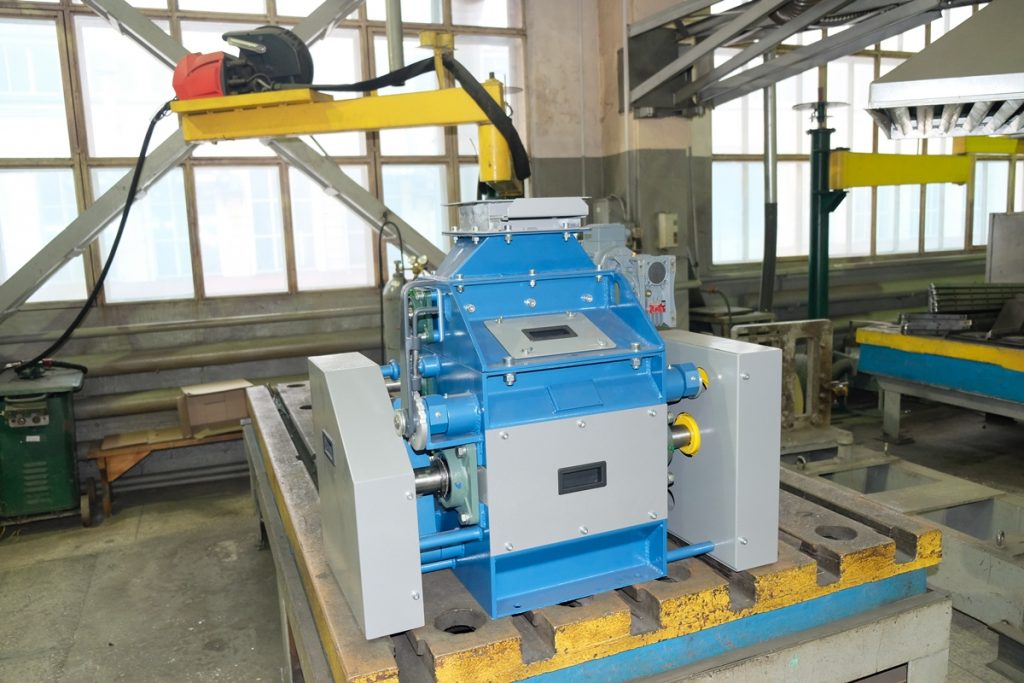

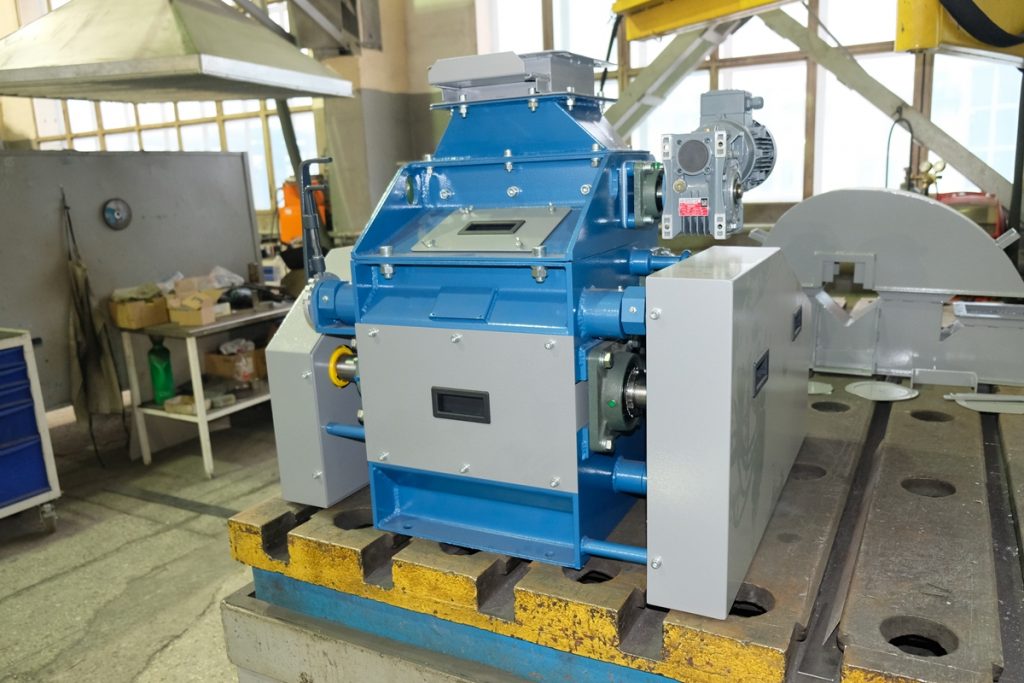

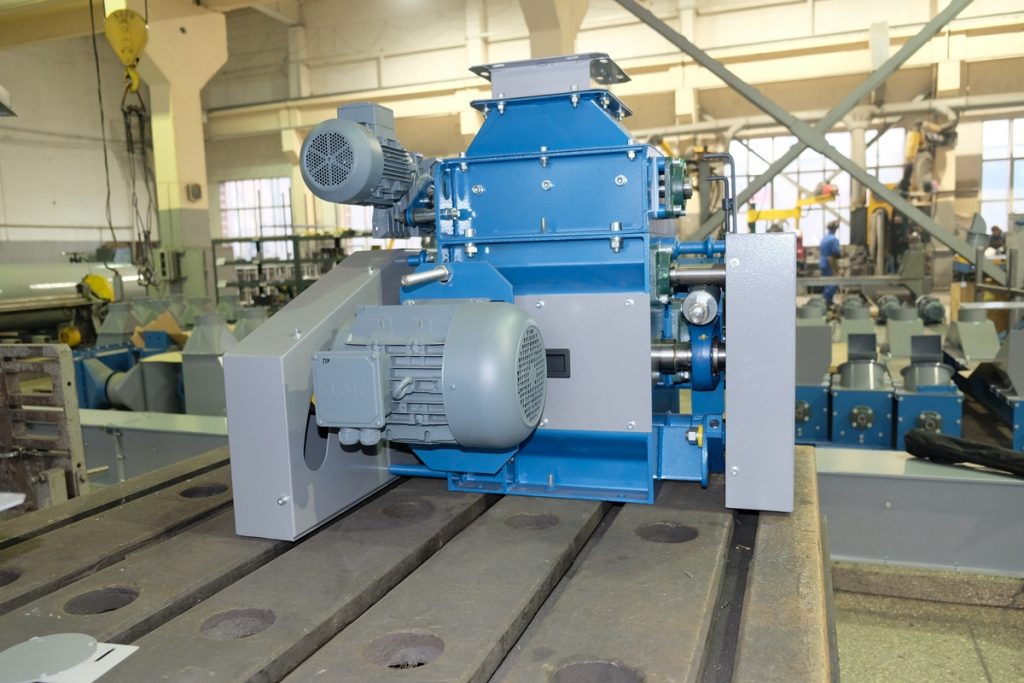

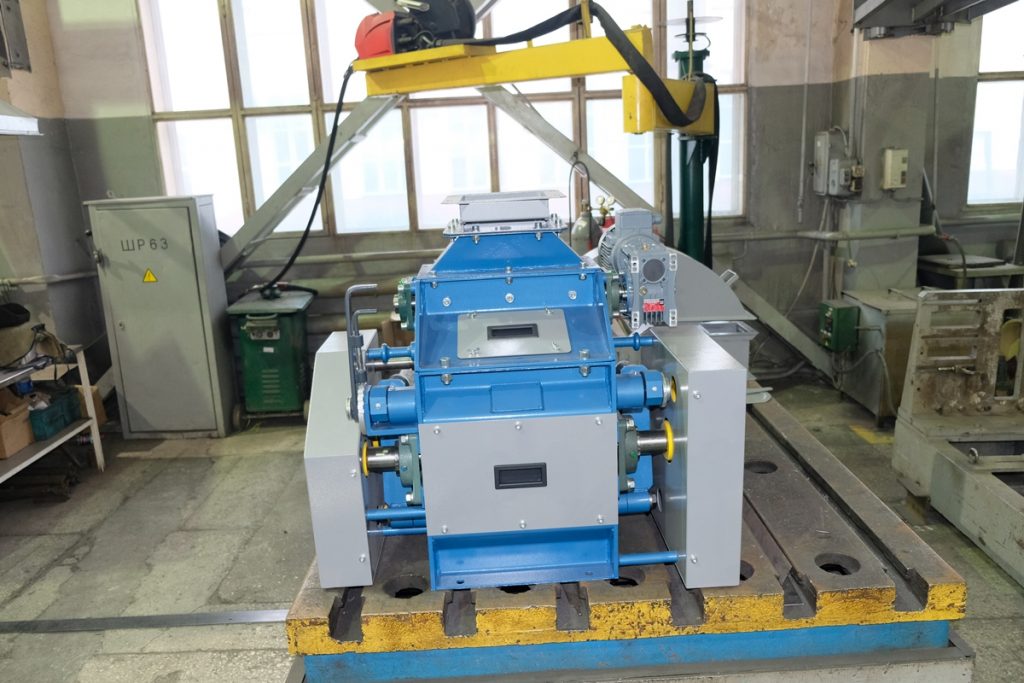

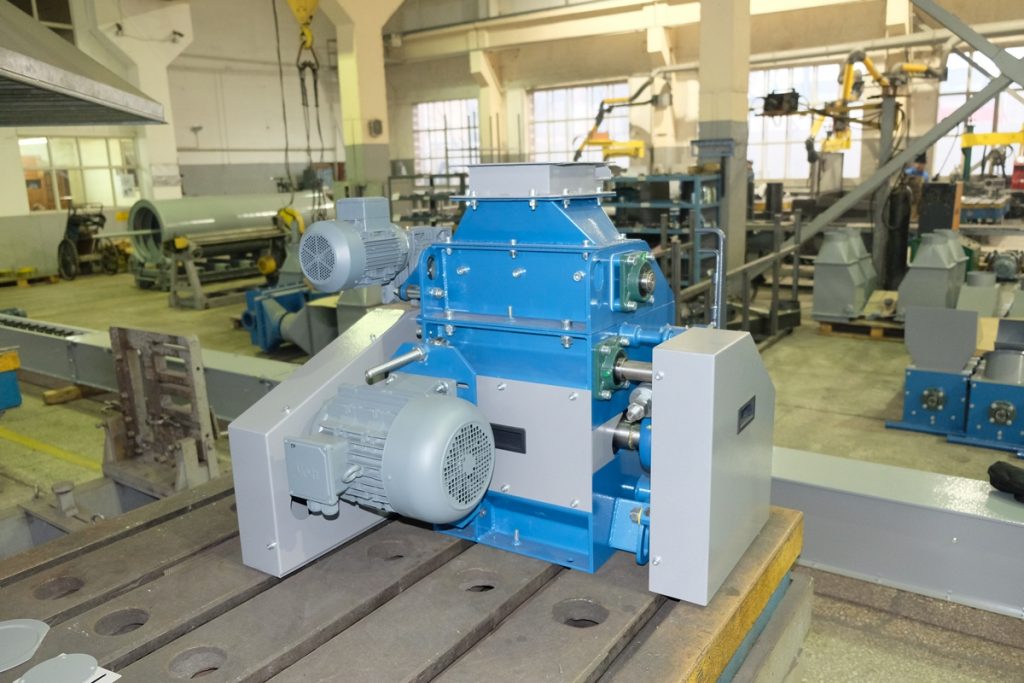

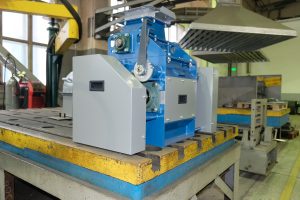

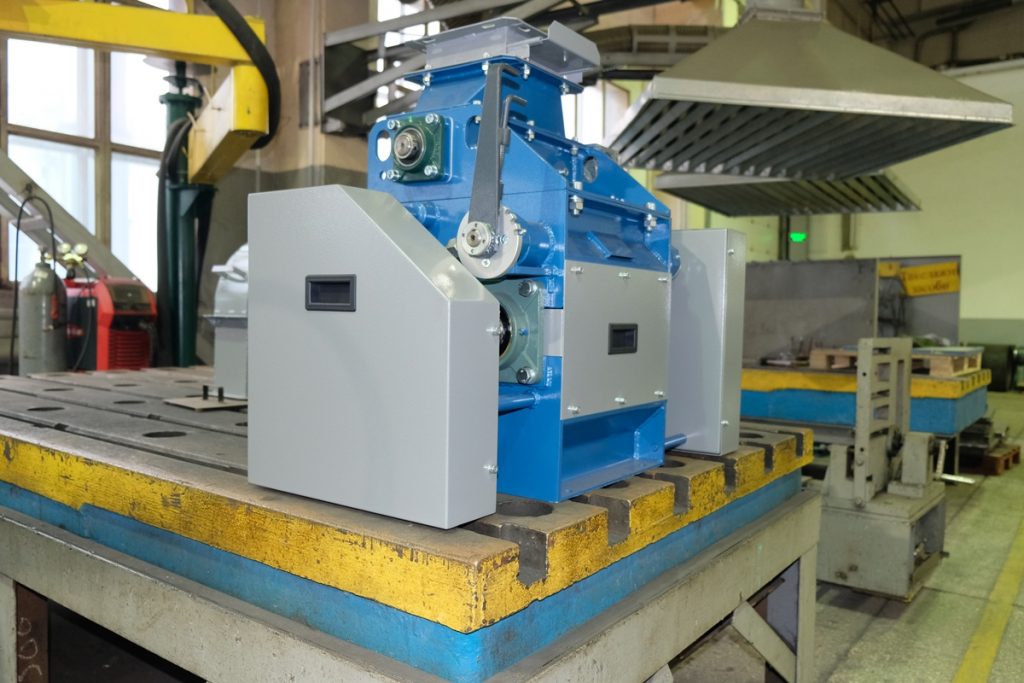

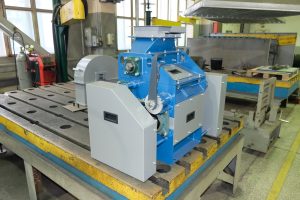

Broyeur à rouleaux SG-1
CRÉÉ POUR
- for grinding grain, oilseeds and legumes between two rolls
PRODUIT
MILLED GRAIN, BEAN AND OIL CROPS (fraction 3 ... 8 mm)
CARACTÉRISTIQUES
Productivity
max 2000 kg / h
Bulk weight of raw materials
mіn 700 kg / m³
Humidity of the feedstock
7 ... 10%
Length
1025 mm
Width
950 mm
Height
875 mm
Weight
520 kg
POWER
6.25 kW
Feeder turns – are set and supported from the control panel.
POSSIBILITÉ
- crusher gate feeder speed - adjustable
- the gap between the rolls - adjustable during operation
- can be used as an independent technological unit
- can be used in technological lines
SÉQUENCE DE TRAVAIL
• Raw materials are fed into the hopper above the crusher
• The gateway feeder shaft rotates at a variable speed
• Raw material moves from the hopper to the crushing zone
• Rolls rotate towards each other
• The grain falls into the gap between the rolls (adjustable) and is split by the notches of the rolls
• The crushed product pours out from the bottom of the roller crusher
Size of oilcake before grinding in SG-1:
Size of oilcake after grinding in SG-1:
Assurance qualité
Warranty period is 1 year
• all machines are certified according to ISO 9001: 2015
• our extruders are designed for continuous and trouble-free operation
