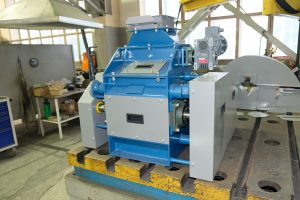

ROLLER MILL GRINDER SG-1

grinds to a fraction of 3 … 8 mm

USED FOR

  • for grinding grain, oilseeds and legumes between two rolls

FINAL PRODUCT

MILLED GRAIN, BEAN AND OIL CROPS (fraction 3 ... 8 mm)

RAW MATERIALS

humidity: max 10%

TECHNICAL SPECIFICATIONS

Productivity

max 2000 kg / h

Bulk weight of raw materials

mіn 700 kg / m³

Humidity of the feedstock

7 ... 10%

Length

1025 mm

Width

950 mm

Height

875 mm

Weight

520 kg

POWER

6.25 kW

Feeder turns – are set and supported from the control panel.

ADVANTAGES

  • crusher gate feeder speed - adjustable
  • the gap between the rolls - adjustable during operation
  • can be used as an independent technological unit
  • can be used in technological lines

SEQUENCE OF OPERATION

• Raw materials are fed into the hopper above the crusher
• The gateway feeder shaft rotates at a variable speed
• Raw material moves from the hopper to the crushing zone
• Rolls rotate towards each other
• The grain falls into the gap between the rolls (adjustable) and is split by the notches of the rolls
• The crushed product pours out from the bottom of the roller crusher



Size of oilcake before grinding in SG-1:



Size of oilcake after grinding in SG-1:

QUALITY ASSURANCE

Warranty period is 1 year

• all machines are certified according to ISO 9001: 2015

• our extruders are designed for continuous and trouble-free operation

WARRANTY SUPPORT

The rolls are protected against ingress of solid and metal objects.
