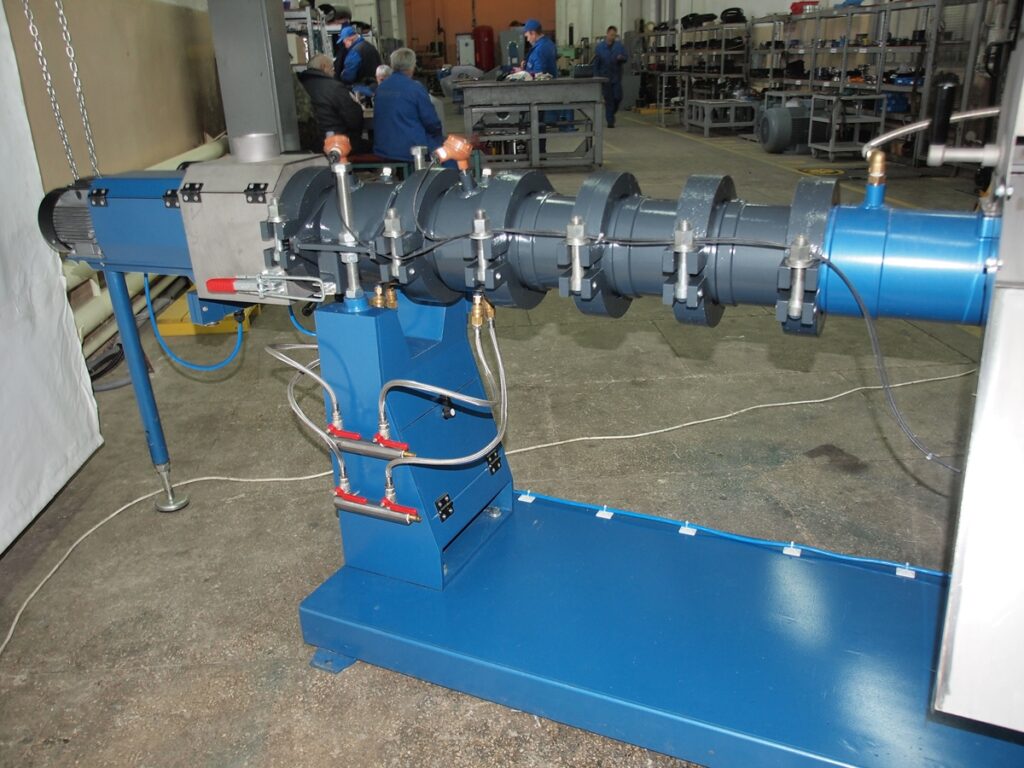

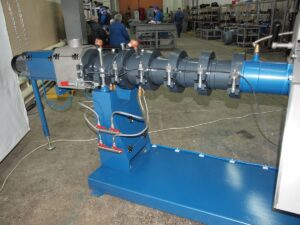

Extrudeuse E-1500

BRONTO / Catalogue d’appareils / Extrudeuses / Extrudeuse E-1500

Producteur

ТМ BRONTO

CRÉÉ POUR

production of all-in-one feed pellets
pellet mixed feed chunks for poultry and pets (cats and dogs), predators and fish
textured or texturized vegetable protein(TVP), also known as textured soy protein (TSP), soy meat or soya chunks and nuggets.

CATALOGUE (PDF)

PRODUIT

EXTRUDED FEED PELLET for industrial fish, pets, predators

Matière première

Humidity: up to 10%

CARACTÉRISTIQUES

Productivity

up to 1000 kg / hour

Steam consumption

up to 60 kg/hour

Length

2400 mm

Width

2400 mm

Height

2850 mm

Weight

4000 kg

POWER

103 kW

FINAL PRODUCT: EXTRUDED FEED PELLET

for industrial fish, pets, predators

RAW MATERIALS:

soybean meal, sunflower meal, animal components, grains and cereals of wheat, rye, maize, barley, peas, as well as complex mineral supplements and soy flour

POSSIBILITÉ

Improves protein quality in feed
Provides eatability of all feed components
Helps regulate feed weight
Disinfects harmful microorganisms and anti-nutritional substances

SÉQUENCE DE TRAVAIL

EXTRUDER CAPABILITY:

moisture of the mixture – from 10%
water input to the mixture – up to 15%
steam injection into the mixture – up to 6%
preconditioning of the mixture – up to 3 minutes
cooling of the screw part of the extruder

OPERATIONAL FLOW OF EXTRUDER:

Adjustable mixture feed through the feeder / steam lock
Spraying water into the feed mixture
Steam input in raw materials
Mixing and heating
Retention
Fat input (up to 2%)
Loading into the screw part of the feed extruder
Compressing, mixing and heating the mixture
Homogenization
The product is expanded right at the die surface
Squeezing the feed pellet through the forming die – obtaining the pellets form
The pellets are cut – obtaining the pellets thickness

Assurance qualité

Warranty period is 1 year

• all machines are certified according to ISO 9001: 2015
• our extruders are designed for continuous and trouble-free operation

SOUTIEN DE LA GARANTIE

Production of all-in-one feed pellets
