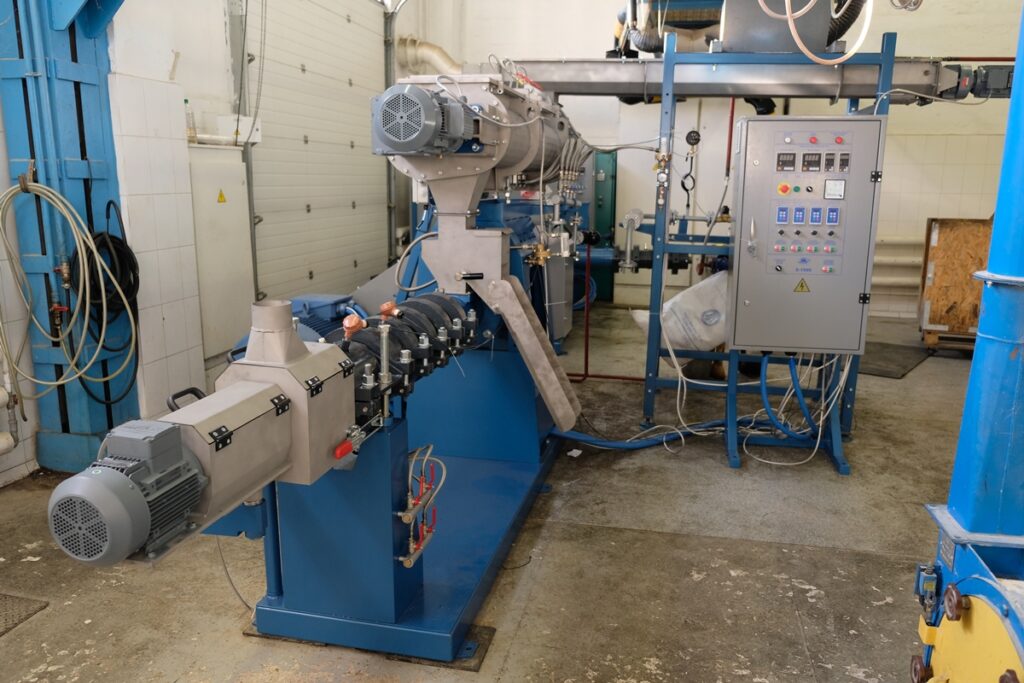

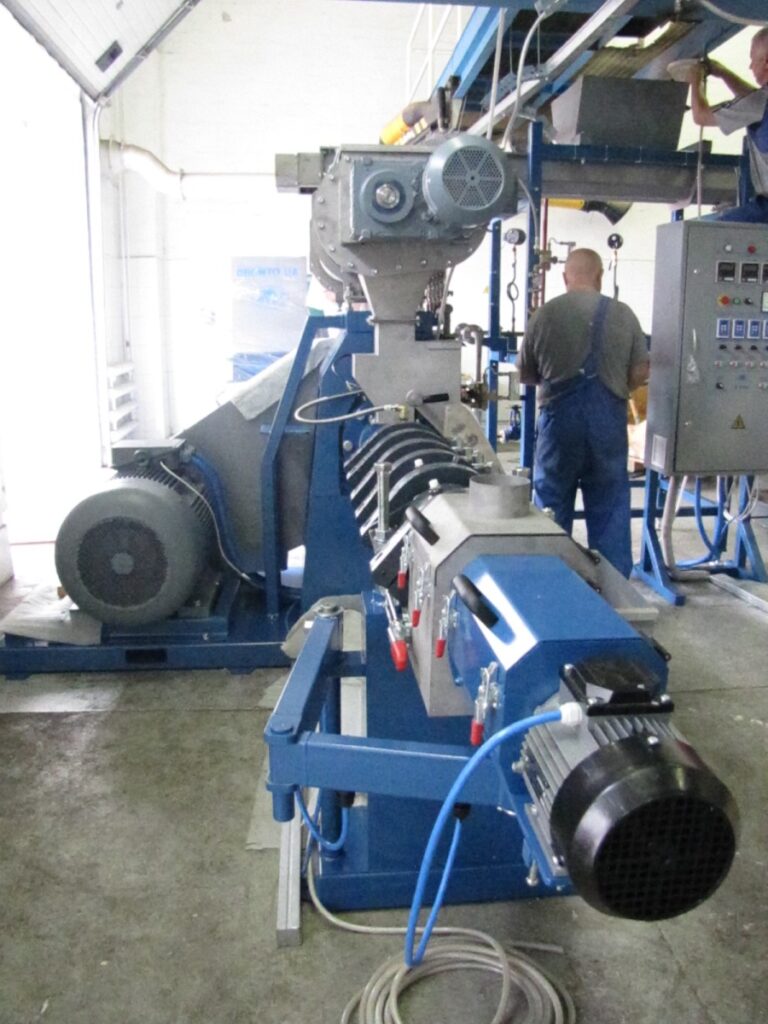

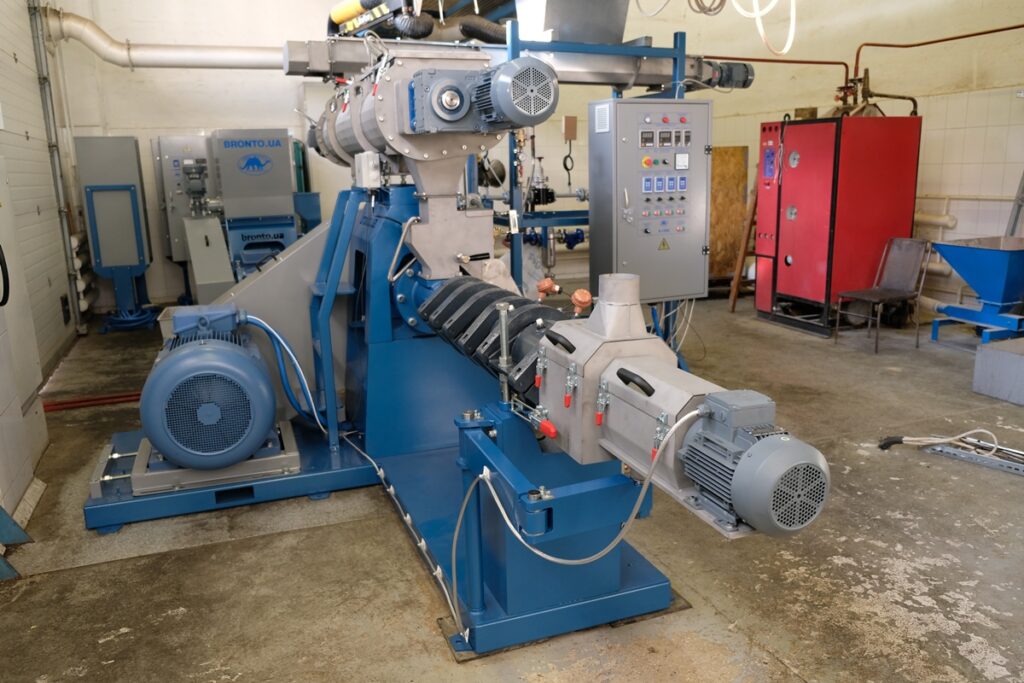

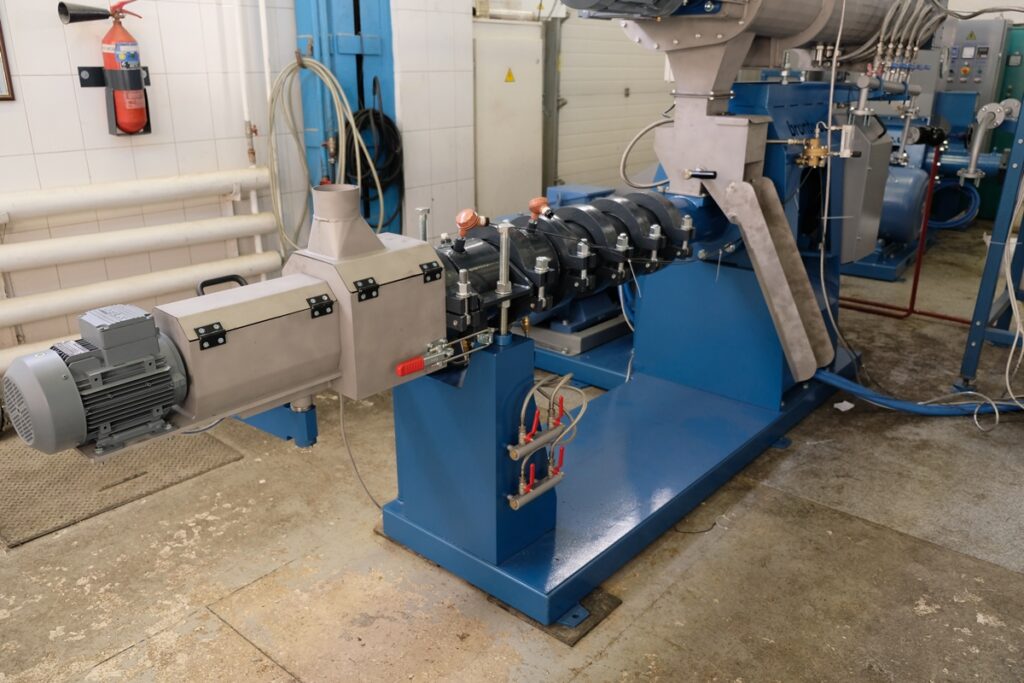

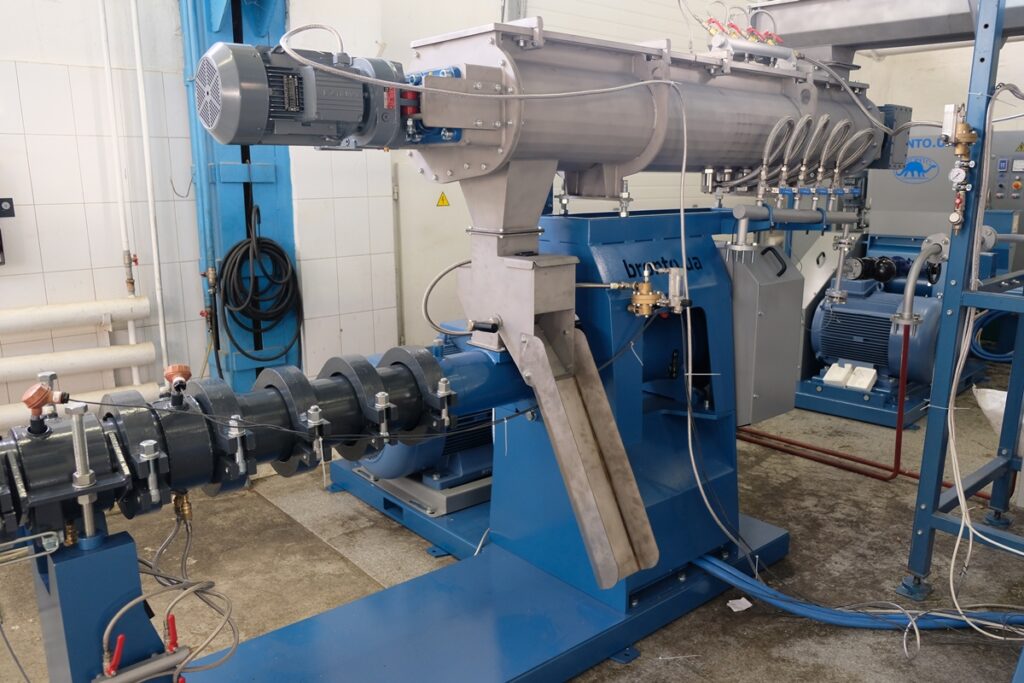

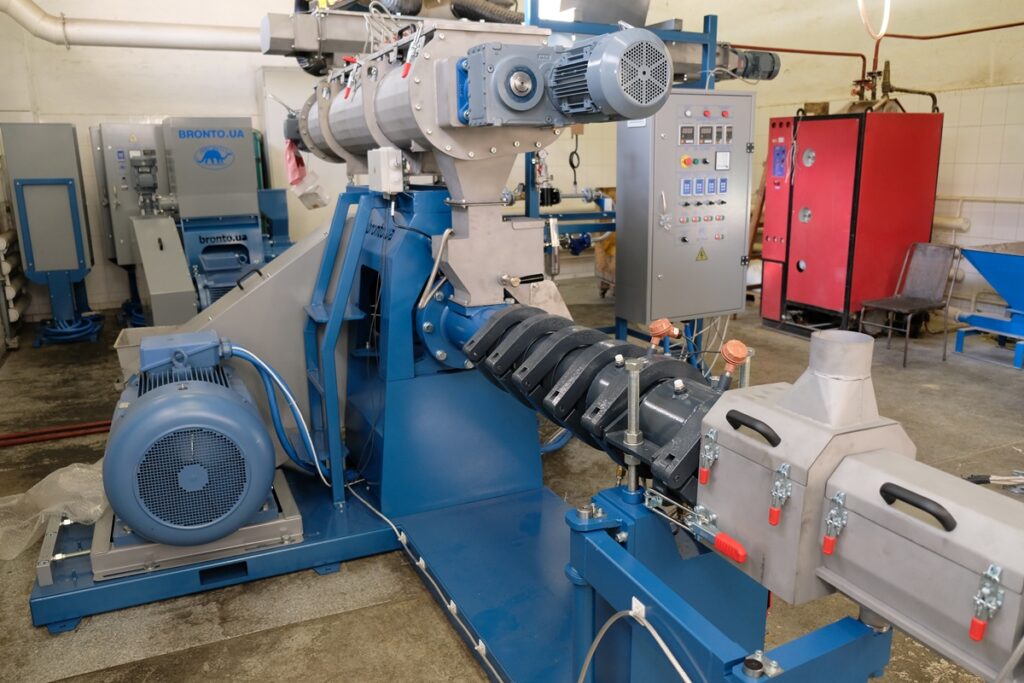

EXTRUDER E-1500

Used for production of feed pellets

Manufacturer

ТМ BRONTO

USED FOR

  • production of all-in-one feed pellets
  • pellet mixed feed chunks for poultry and pets (cats and dogs), predators and fish
  • textured or texturized vegetable protein(TVP), also known as textured soy protein (TSP), soy meat or soya chunks and nuggets.

FINAL PRODUCT

EXTRUDED FEED PELLET for industrial fish, pets, predators

TECHNICAL SPECIFICATIONS

Productivity

up to 1000 kg / hour

Steam consumption

up to 60 kg/hour

Length

2400 mm

Width

2400 mm

Height

2850 mm

Weight

4000 kg

POWER

103 kW

FINAL PRODUCT: EXTRUDED FEED PELLET

for industrial fish, pets, predators

RAW MATERIALS:

soybean meal, sunflower meal, animal components, grains and cereals of wheat, rye, maize, barley, peas, as well as complex mineral supplements and soy flour

ADVANTAGES

  • Improves protein quality in feed
  • Provides eatability of all feed components
  • Helps regulate feed weight
  • Disinfects harmful microorganisms and anti-nutritional substances

SEQUENCE OF OPERATION

EXTRUDER CAPABILITY:

  • moisture of the mixture – from 10%
  • water input to the mixture – up to 15%
  • steam injection into the mixture – up to 6%

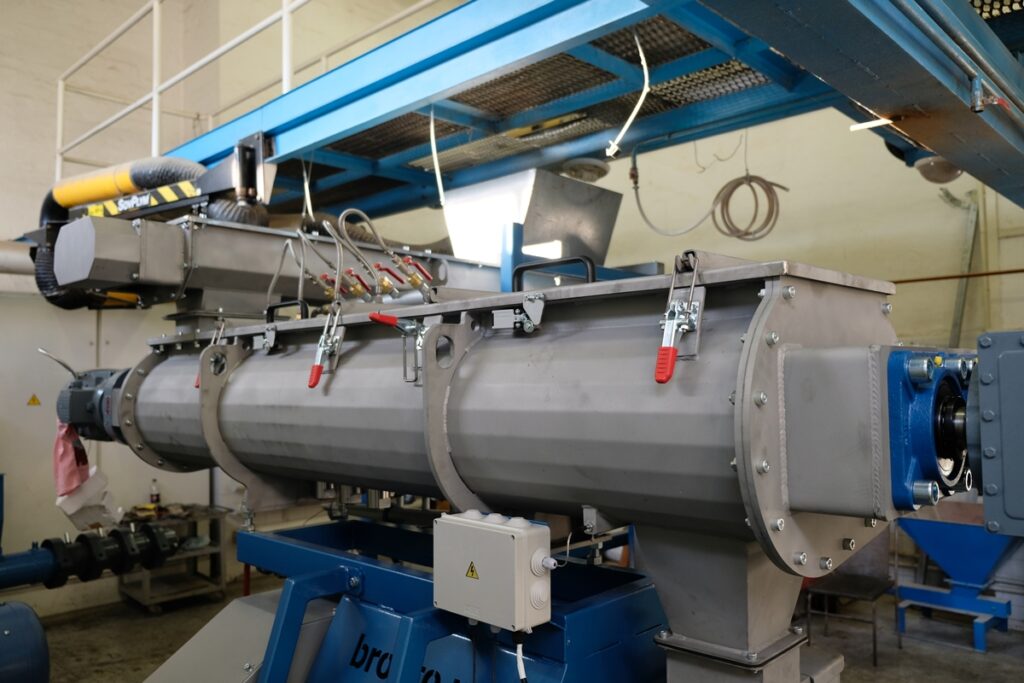

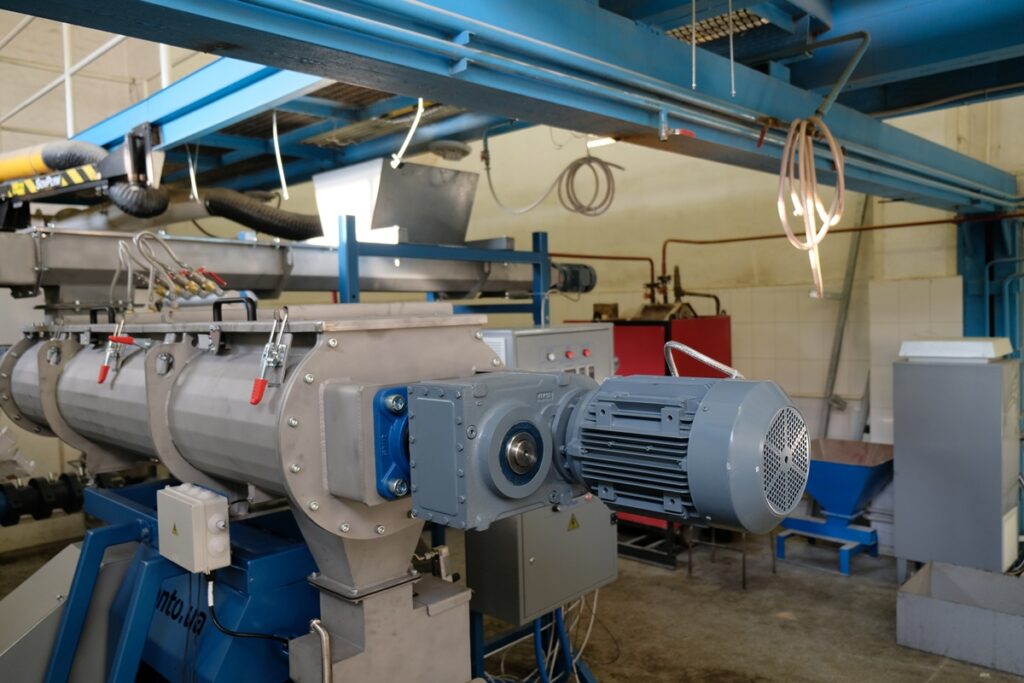

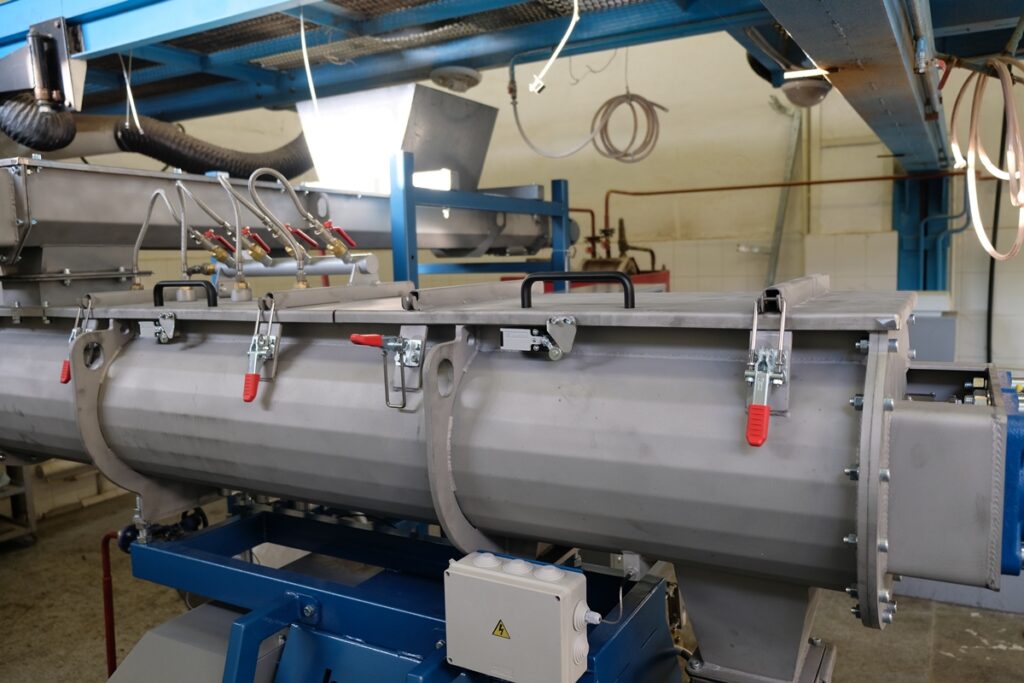

  • preconditioning of the mixture – up to 3 minutes
  • cooling of the screw part of the extruder



OPERATIONAL FLOW OF EXTRUDER:

  • Adjustable mixture feed through the feeder / steam lock
  • Spraying water into the feed mixture
  • Steam input in raw materials
  • Mixing and heating
  • Retention
  • Fat input (up to 2%)
  • Loading into the screw part of the feed extruder

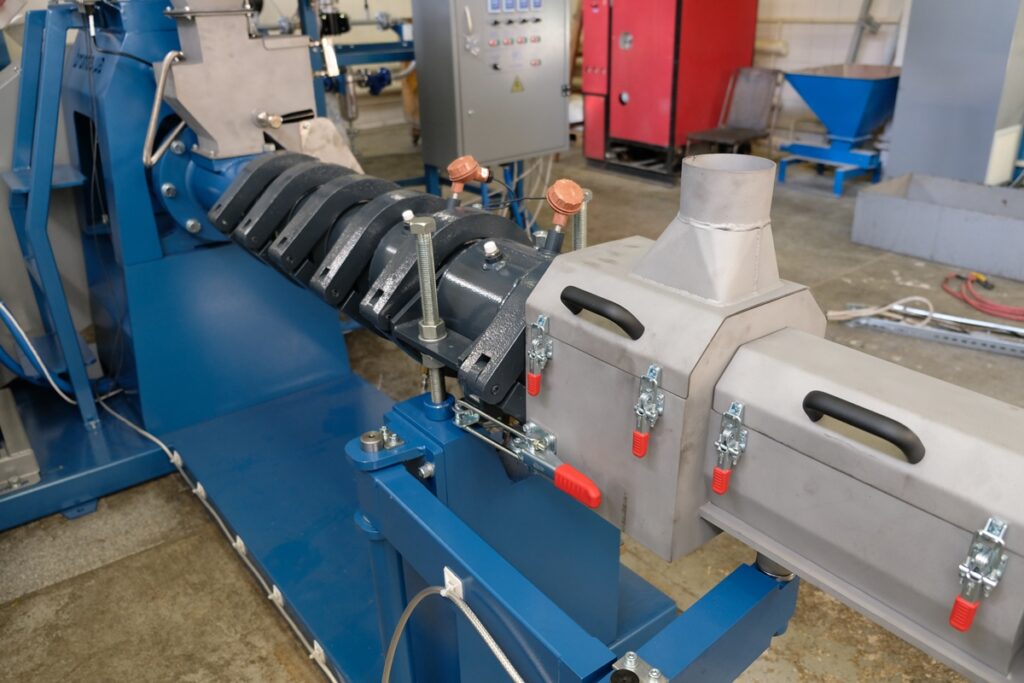

  • Compressing, mixing and heating the mixture
  • Homogenization
  • The product is expanded right at the die surface
  • Squeezing the feed pellet through the forming die – obtaining the pellets form

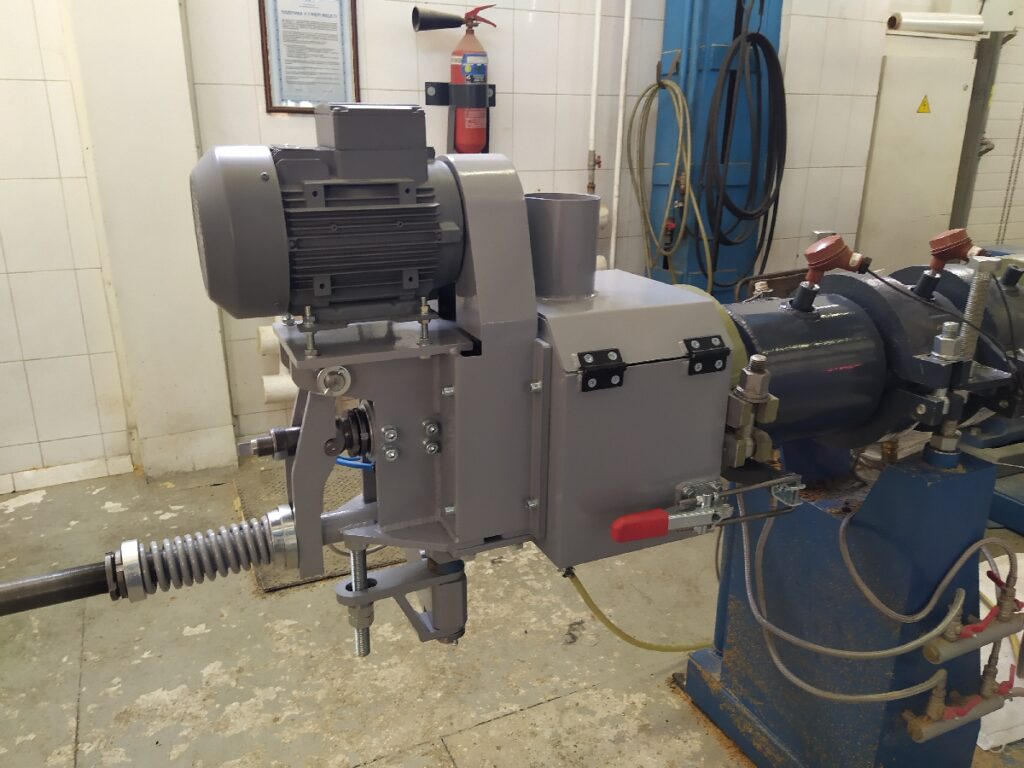

  • The pellets are cut – obtaining the pellets thickness

QUALITY ASSURANCE

Warranty period is 1 year

• all machines are certified according to ISO 9001: 2015
• our extruders are designed for continuous and trouble-free operation

WARRANTY SUPPORT

Production of all-in-one feed pellets
