Séchoir à bande BDP-1000
PRODUIT
dried soya chunks (TVP), soya nuggets, pet food, dog food, fish feed pellets after extrusion or desiccated fruits. Lowering their moisture content from 25% to 8%
CARACTÉRISTIQUES
Capacity
1000 kg / hour
Moisture content
max 8 %
Moisture of raw material
max 25 %
Drying agent temperature
60 ... 110 ºС
Product fraction
3 ... 25 mm
Bulk weight of raw materials
0,3 ... 0,5 t/m³
Air consumption
10 000 m³ / hour
Length
21 100 mm
Width
3 900 mm
Height
4 000 mm
Product loading height
2 850 mm
Product discharge height
700 mm
Weight
max 20,000 kg
Steam consumption
430 kg / hour
Thermal power of steam heaters
2х115=230 kW
POWER (without steam)
not more than 18 kW
Drying purpose:
We propose to prepare a solution that will help:
POSSIBILITÉ
Belt dryer BDP-1000 to dry up to 3 m³ / hour of raw material, which is distributed over the plates of the drying floor with a maximum layer of 140 mm.
The product passes through a drying zone and a cooling zone. The residence time in the dryer: 15 to 40 minutes.
Fraction of raw materials for our belt dryer: 3 … 25 mm

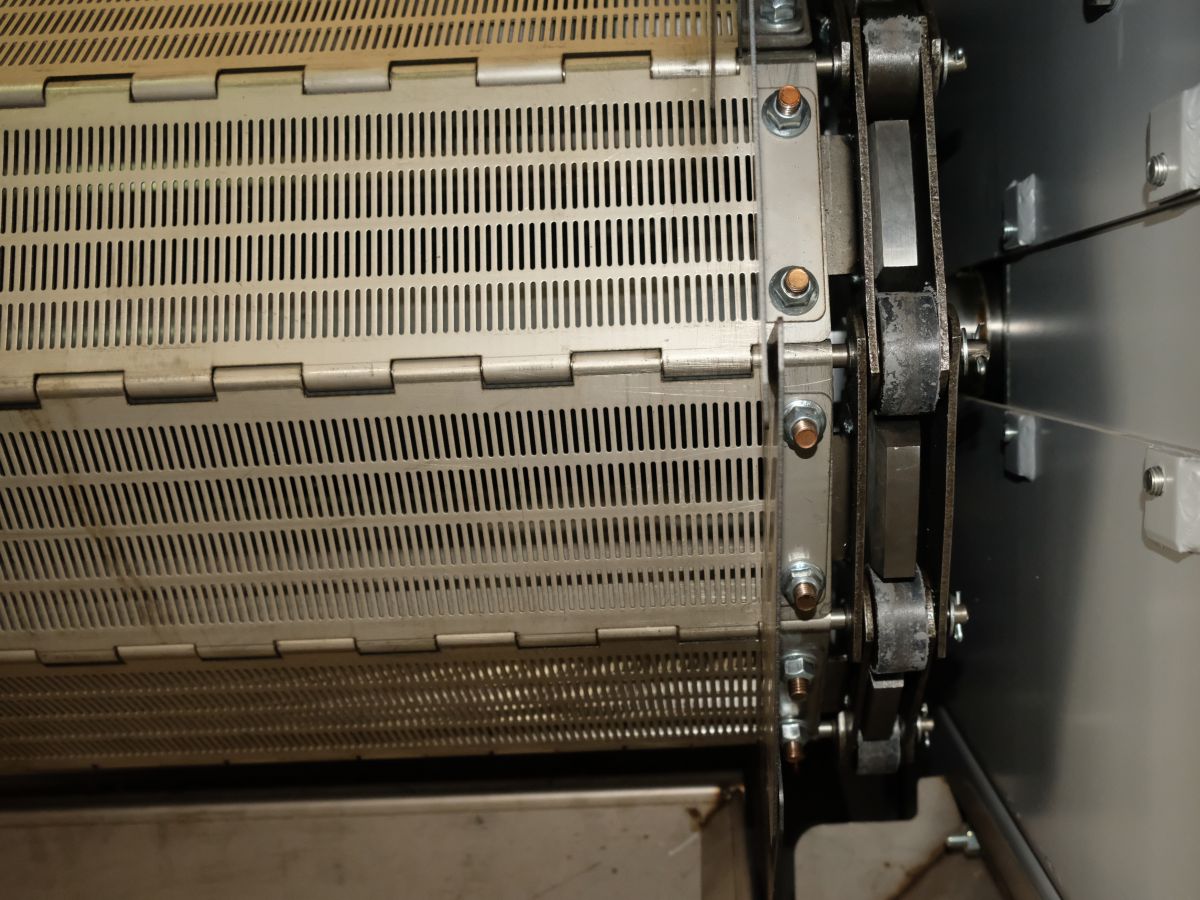

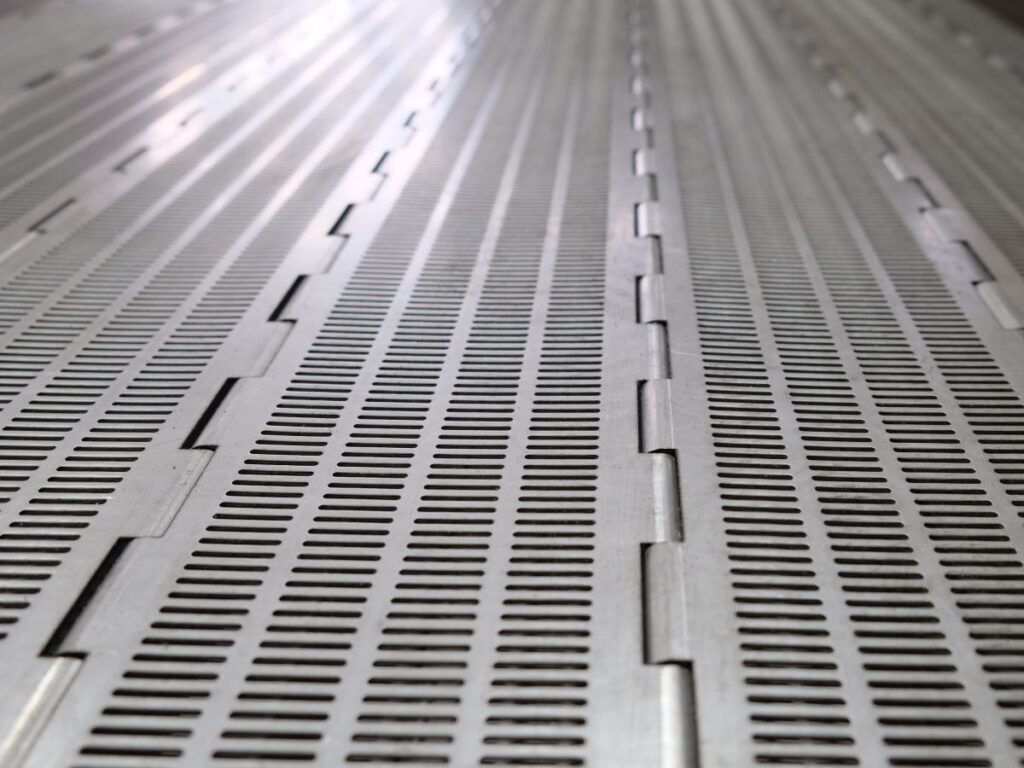

Drying floor is assembled from perforated plates.
Floor area:
Temperature and humidity sensors are installed in the drying and cooling chamber.
Warranty period – 1 year
production is ISO 9001:2015 certified
our belt dryer machines are designed for continuous and uninterrupted operation
Once the warranty period has expired, we will continue to provide support for the sold equipment: we sell spare parts and perform technical service not limiting the support period.
SÉQUENCE DE TRAVAIL

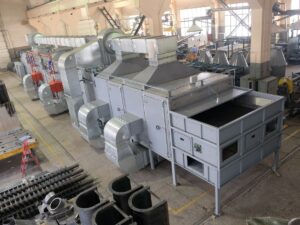

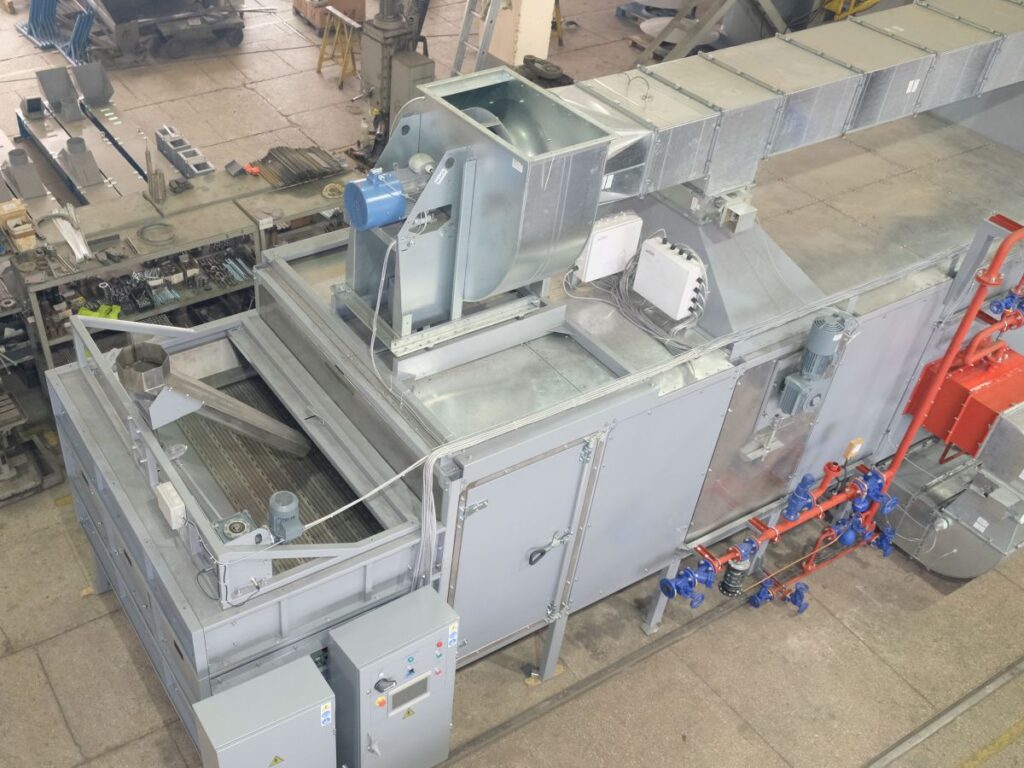

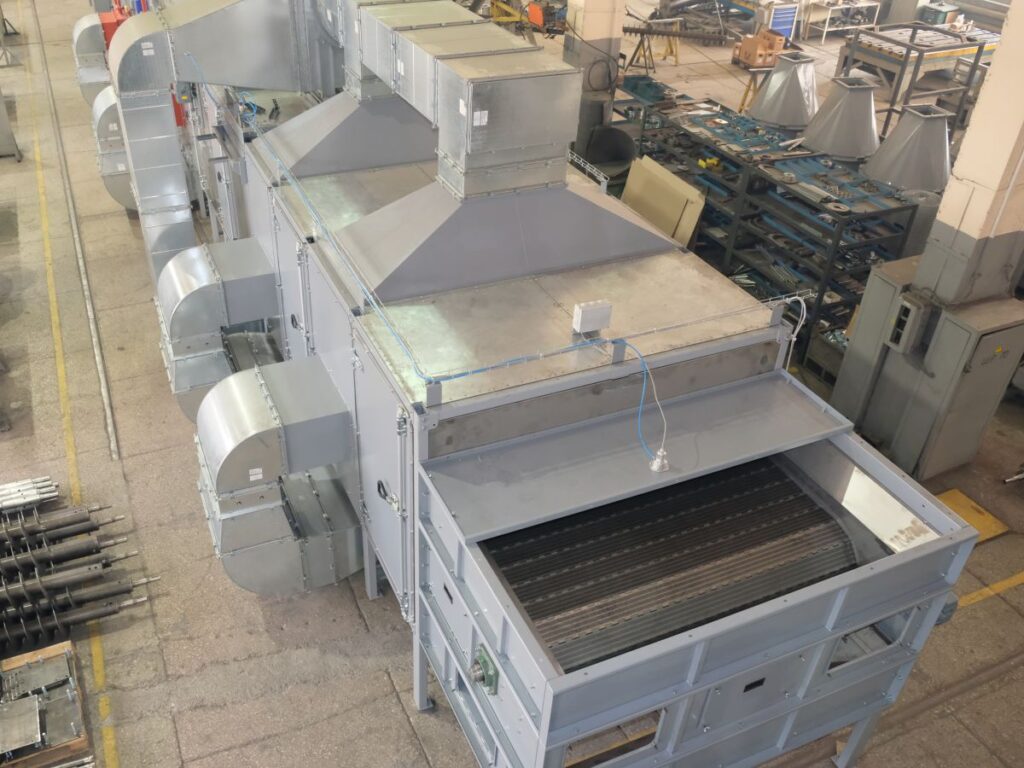

The BDP-1000 BELT DRYER is typically integrated into texturized, pet food and complete aquaculture feed lines.
It provides efficient, gentle and homogeneous drying of granules, snacks, fruits and guarantees high-quality drying of the final product.
Product movement.

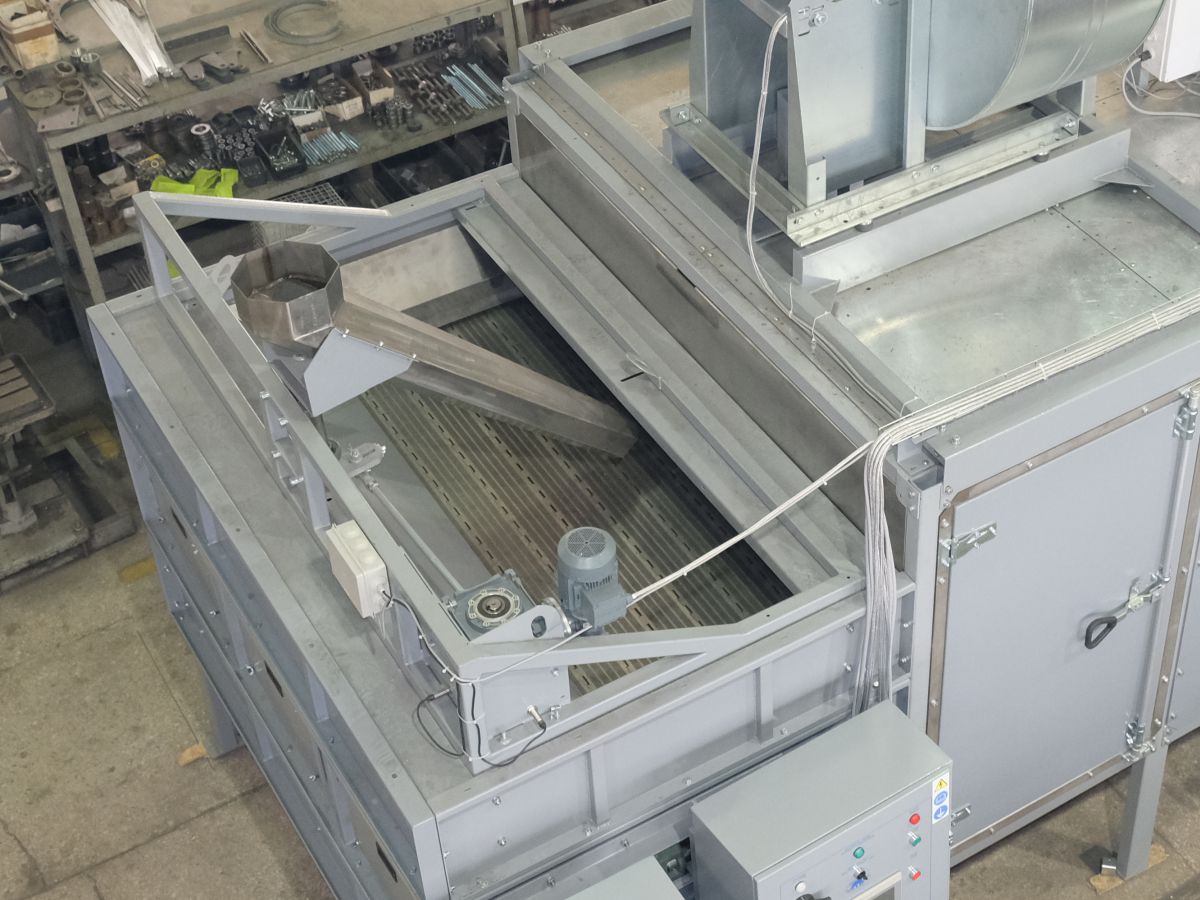

Raw materials are continuously fed and evenly distributed over the deck plates.

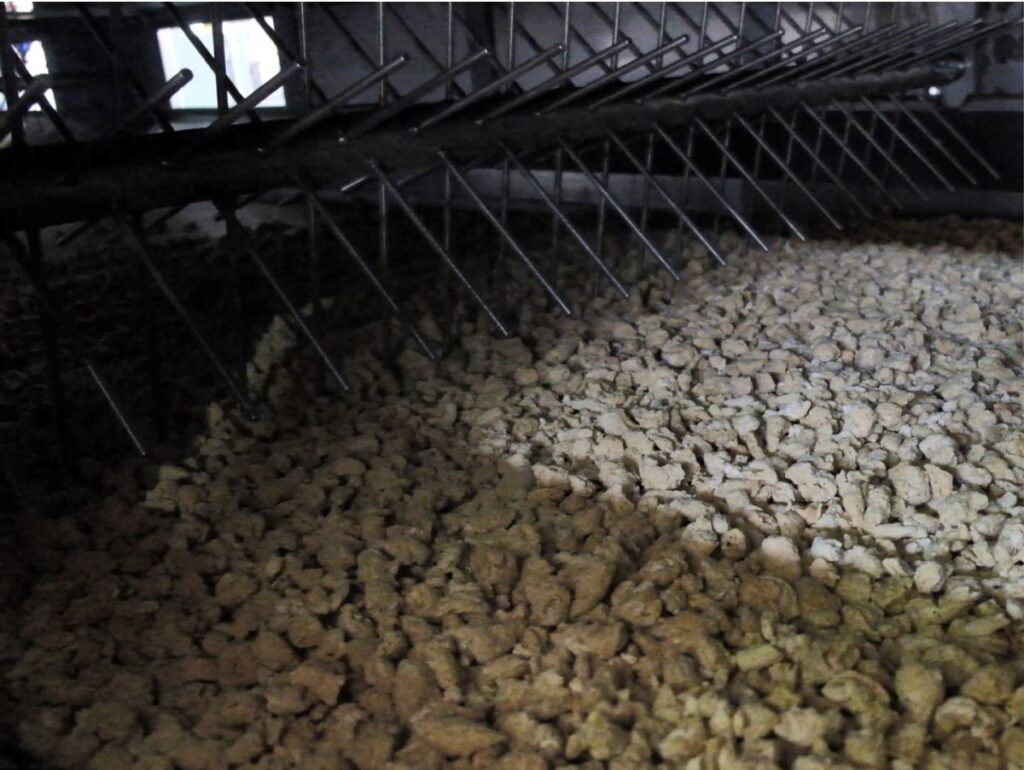

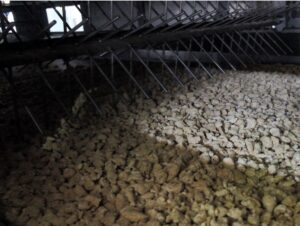

During drying, the product is mixed with special agitators.
After passing through the drying stage, the product is transported to the final cooling zone.
Built-in cooler, allows you to lower the product temperature to ambient temperature or above ambient temperature by 10 ° C.
The ability to adjust the flooring speed ensures an even distribution of the product. The speed of movement of the decking in the dryer, drying temperature, inlet air flow and exhaust air flow are controlled for each section of the dryer.
How the air flows
The air is blown through the openings in the deck plates in the cooling zone by means of a blower fan. Fan speed (air volume) is controlled from the control panel.
The blower fan blows air from the cooling zone to the air heaters of the drying zone.
Then, with the help of 2 air heaters, the air that is drawn from the cooling zone is heated and evenly passes through the product bed.
With the help of an exhaust fan, moist hot air is removed from the drying zone – the product is dried.
The temperature inside the drying chamber is constantly measured, these measurements automatically control the speed of the deck plate, which ensures the most efficient drying time and consistent product quality.
The moisture content of the product is controlled by a laboratory method.
