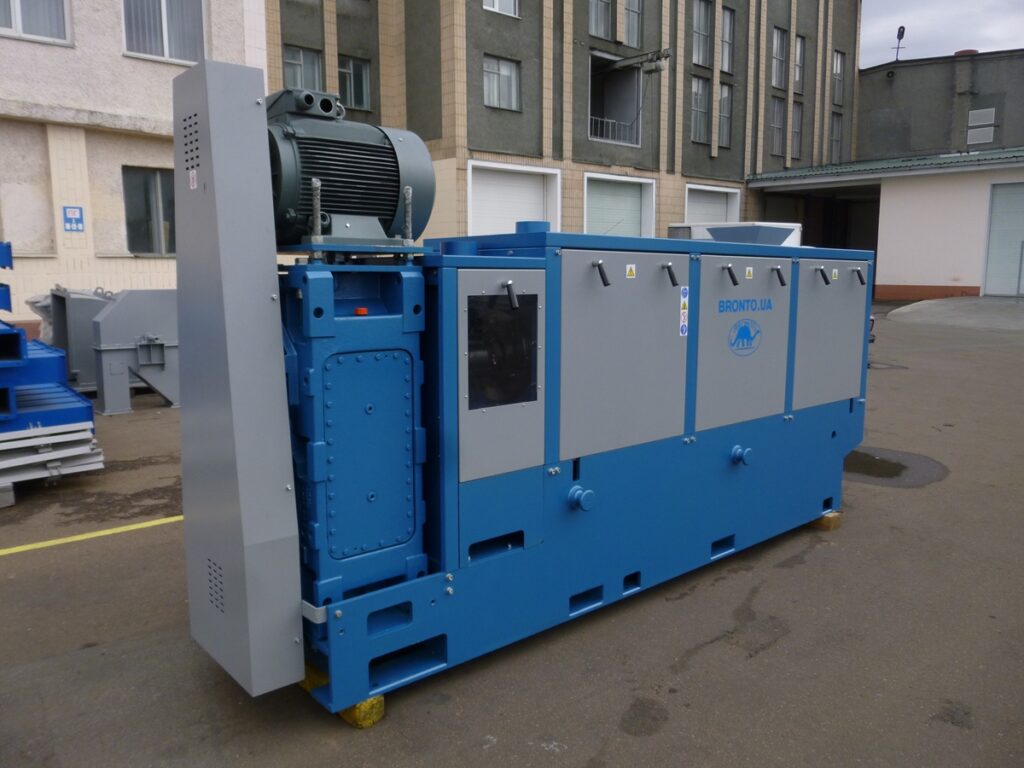

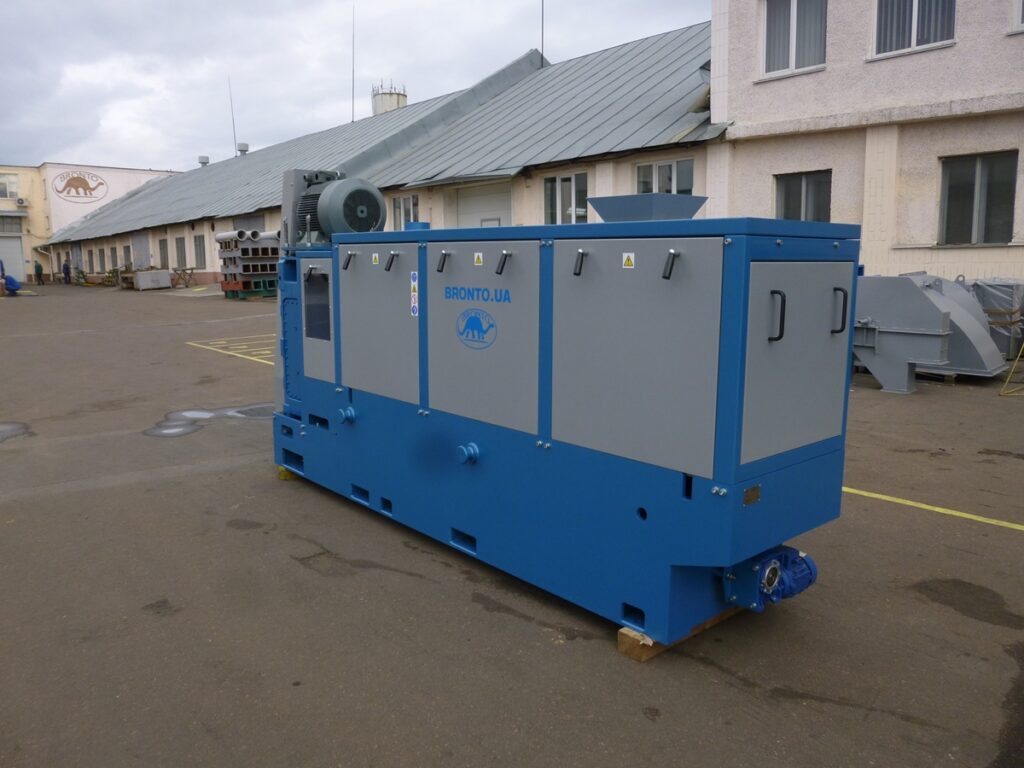

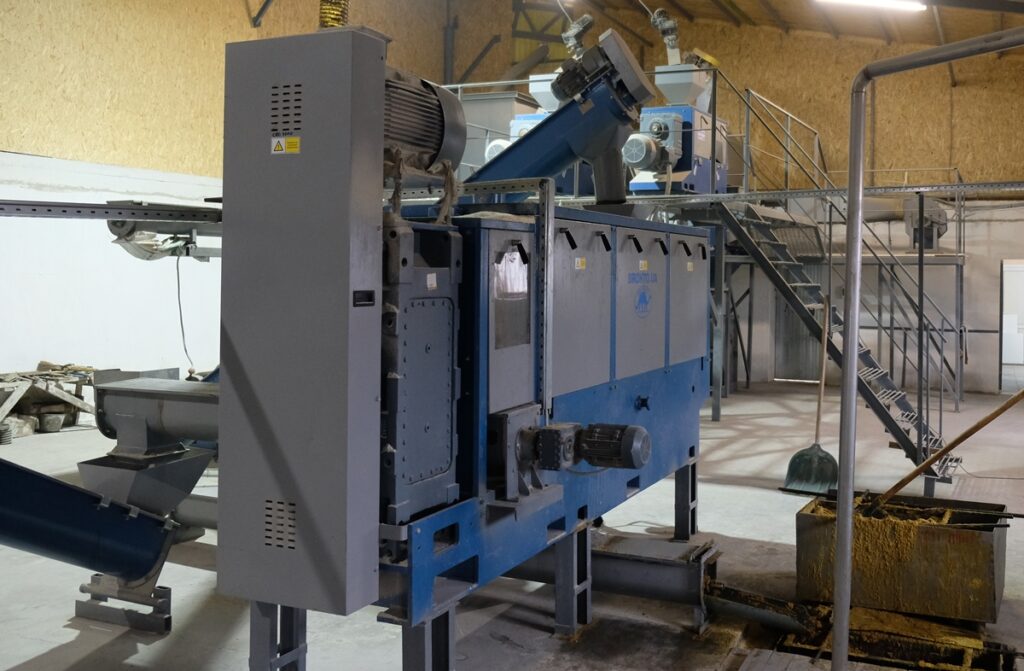

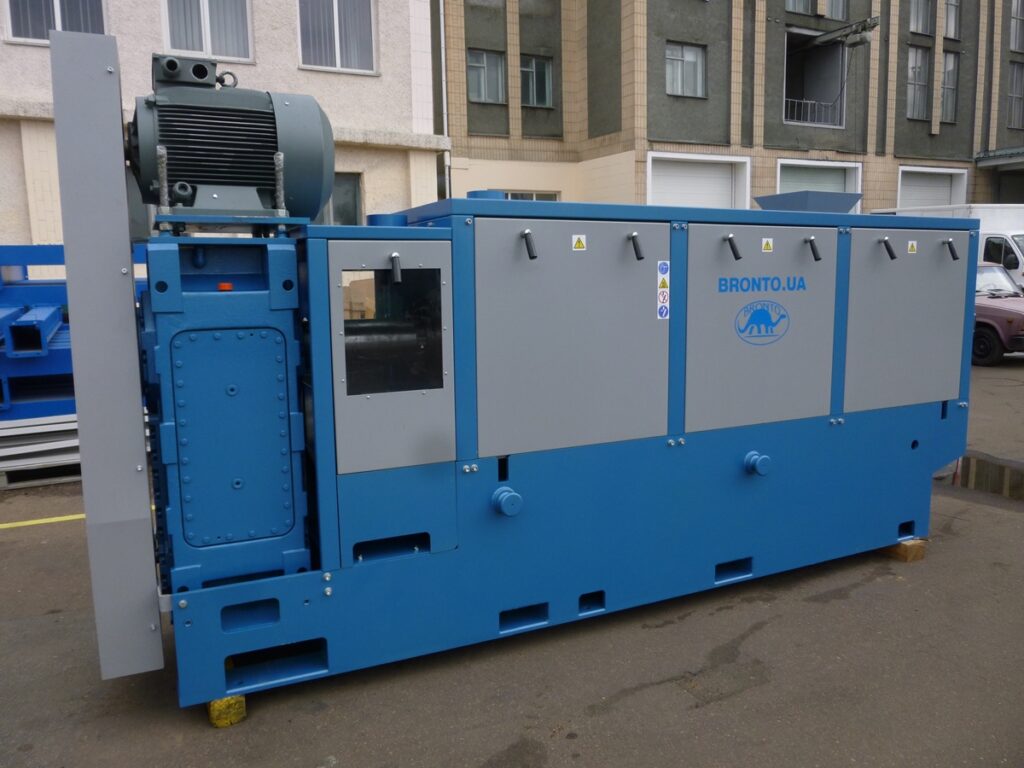

PRESSE A HUILE RP-1000
CRÉÉ POUR
PRODUIT
oil cake, vegetable oil
Matière première
RAW MATERIALS: oil cake after the first extraction of oil, humidity: 8 ... 12%
CARACTÉRISTIQUES
Productivity
1000 kg / hour
Oilcake of oilcake
7 ... 10%
Oil content of raw materials
22 ... 26%
Humidity of raw materials
6 ... 7%
Length
3970 mm
Width
960 mm
Height
2200 mm
Weight
6950 kg
POWER
45.6 kW
For the final extraction of oil in lines with double mechanical extraction of oil
POSSIBILITÉ
SÉQUENCE DE TRAVAIL
Raw materials are loaded into the nozzle of the press
Material is lowered into the loading unit
The helical shaft moves the raw materials from the loading unit to the extraction unit
The diameter of the hollows of the screws increases, the free volume for raw materials decreases. This leads to compression and grinding of seeds. The process of grinding seeds under pressure heats the mass and leads to the extrusion of vegetable oil
The oil flows into the collection chamber created by the elements of the press frame, and then through the nozzle in the lower part of the press is discharged to the workshop oil collection system
The cake continues to move along the oil extraction unit, and at the exit it is crushed by the impeller and removed from the press into the workshop system for transporting the cake.
Warranty period is 1 year
For edible oil pressing. It is used as a final oil press also called as an expeller in the double pressing line
