Oil presses

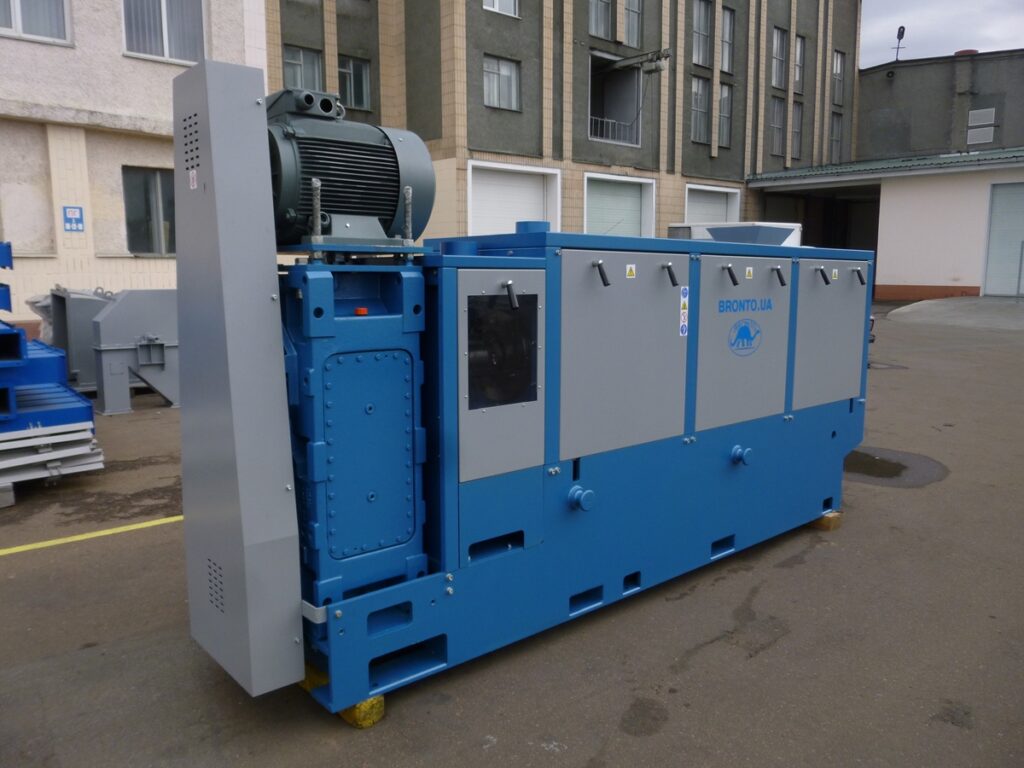

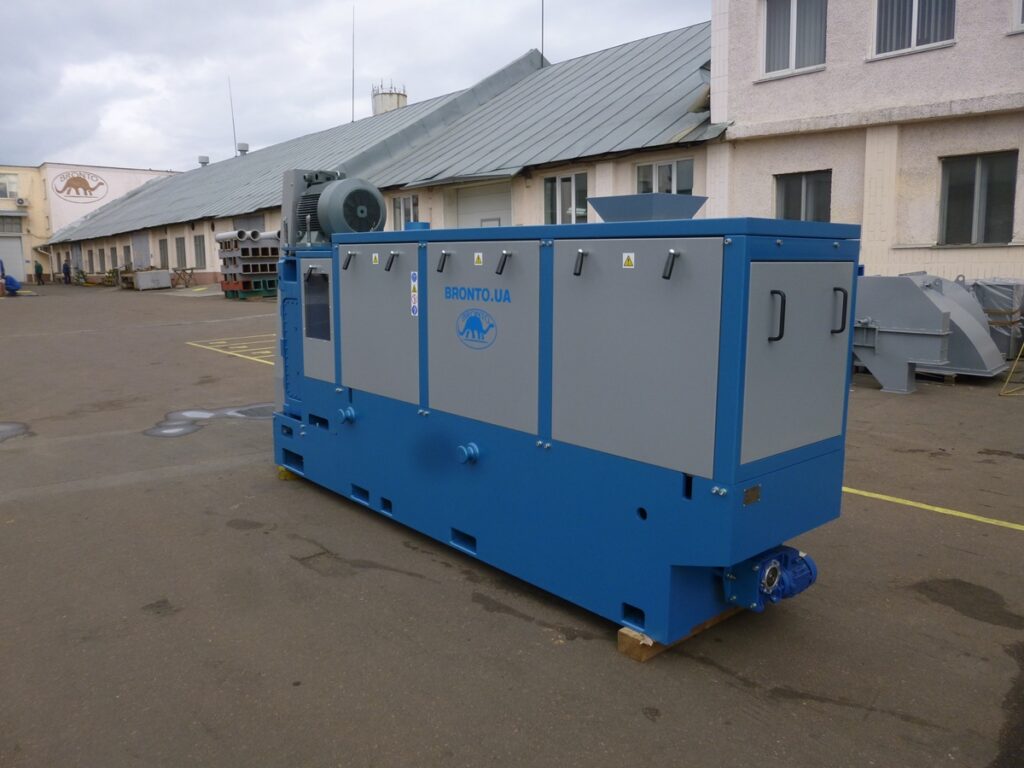

OIL PRESS RP-1000

USED FOR

  • for the final extraction of oil in lines with double mechanical extraction of oil
  • residual oil content of oil cake max 10%

FINAL PRODUCT

oil cake, vegetable oil

RAW MATERIALS

RAW MATERIALS: oil cake after the first extraction of oil, humidity: 8 ... 12%

TECHNICAL SPECIFICATIONS

Productivity

1000 kg / hour

Oilcake of oilcake

7 ... 10%

Oil content of raw materials

22 ... 26%

Humidity of raw materials

6 ... 7%

Length

3970 mm

Width

960 mm

Height

2200 mm

Weight

6950 kg

POWER

45.6 kW

For the final extraction of oil in lines with double mechanical extraction of oil

ADVANTAGES

  • reduced main shaft speed
  • resistance of working parts up to 5000 t
  • the oil press cage is easy to maintain
  • it is assembled and disassembled without the use of lifting equipment

SEQUENCE OF OPERATION

Raw materials are loaded into the nozzle of the press
Material is lowered into the loading unit
The helical shaft moves the raw materials from the loading unit to the extraction unit
The diameter of the hollows of the screws increases, the free volume for raw materials decreases. This leads to compression and grinding of seeds. The process of grinding seeds under pressure heats the mass and leads to the extrusion of vegetable oil
The oil flows into the collection chamber created by the elements of the press frame, and then through the nozzle in the lower part of the press is discharged to the workshop oil collection system
The cake continues to move along the oil extraction unit, and at the exit it is crushed by the impeller and removed from the press into the workshop system for transporting the cake.

QUALITY ASSURANCE

Warranty period is 1 year

  • all machines are certified according to ISO 9001: 2015
  • our oil press are designed for continuous and trouble-free operation
WARRANTY SUPPORT

For edible oil pressing. It is used as a final oil press also called as an expeller in the double pressing line
