Coaters

VACUUM COATER VC-1000

USED FOR

  • for application of up to 25% of FAT, LIQUID and DRY ADDITIVES with the uniform pellet coating

FINAL PRODUCT

aquafeed or petfood pellet (with fat content of 15 ... 35%)

RAW MATERIALS

aquafeed or petfood pellet (with fat content of 5 ... 10%)

high percentage of input fat

TECHNICAL SPECIFICATIONS

Productivity

1000 kg / h

Bulk weight of raw materials

0.5 t / m³

Total volume of the tank

450 l

Working volume of the tank

300 l

Air pressure (in control devices)

4 ... 6 bar

Air Consumption

150 l / min

Dosing of liquid additives

5 ... 15%

Length

1855 mm

Width

2500 mm

Height

4200 mm

Weight

2500 kg

POWER

6.5 kW

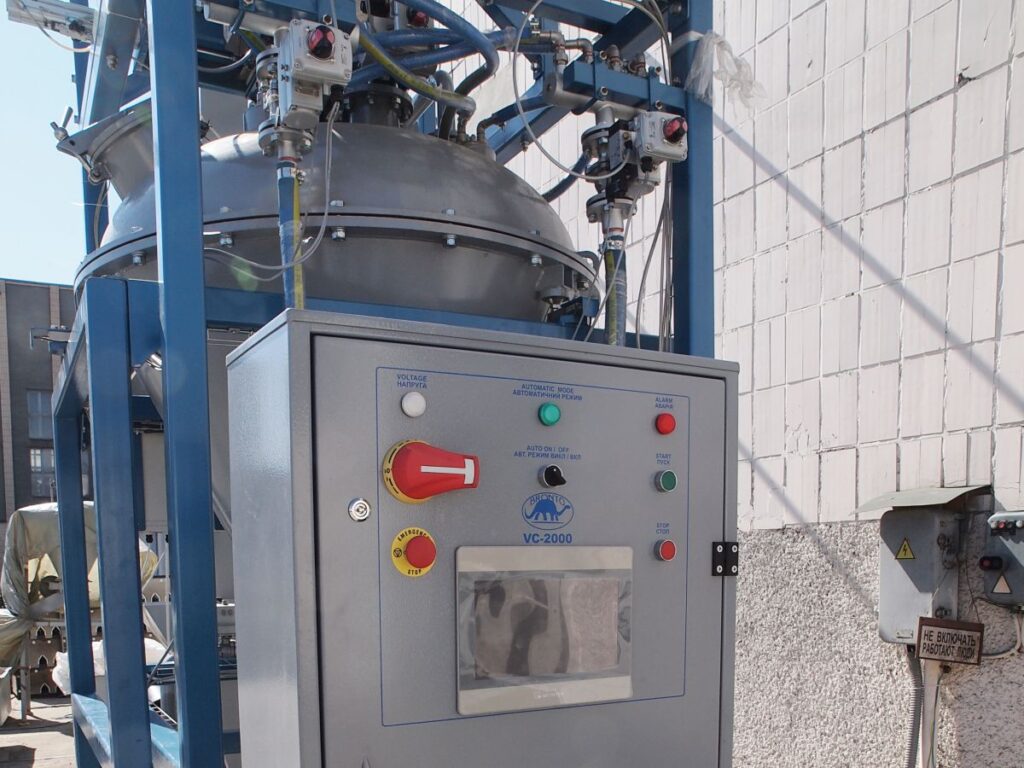

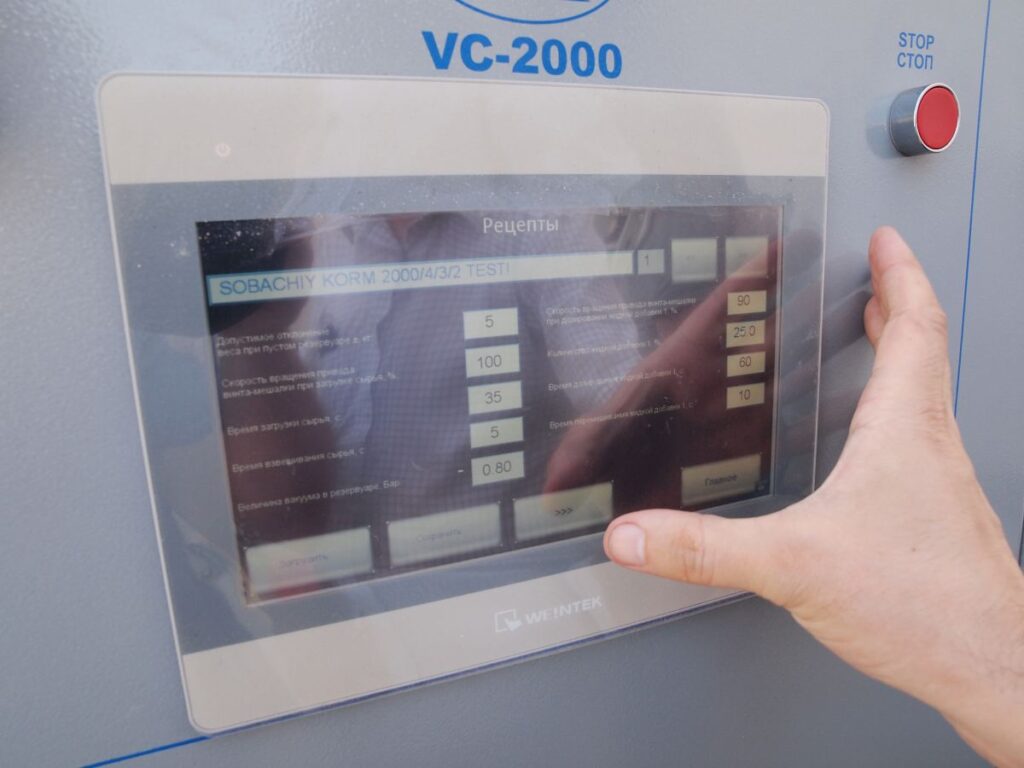

All processes are programmed from the control panel

  • high levels of fat addition
  • up to 3 different liquids and 1 dry additive
  • uniform degree of absorption and penetration of fat inside the pellets

ADVANTAGES

  • high percentage of input fat
  • introduction of up to 3 liquid and one dry additive
  • uniform introduction of fat into the pellets

SEQUENCE OF OPERATION

BENEFITS OF VACUUM COATER

The extruded pellets have a very porous inner structure. It is within the pores of this internal structure that added liquid is retained. The objective of vacuum coating is to use a pressure differential to force liquids through the outer layer and deeply into the porous area of the pellet



  • Measurement of the weight of the empty volume of the coater

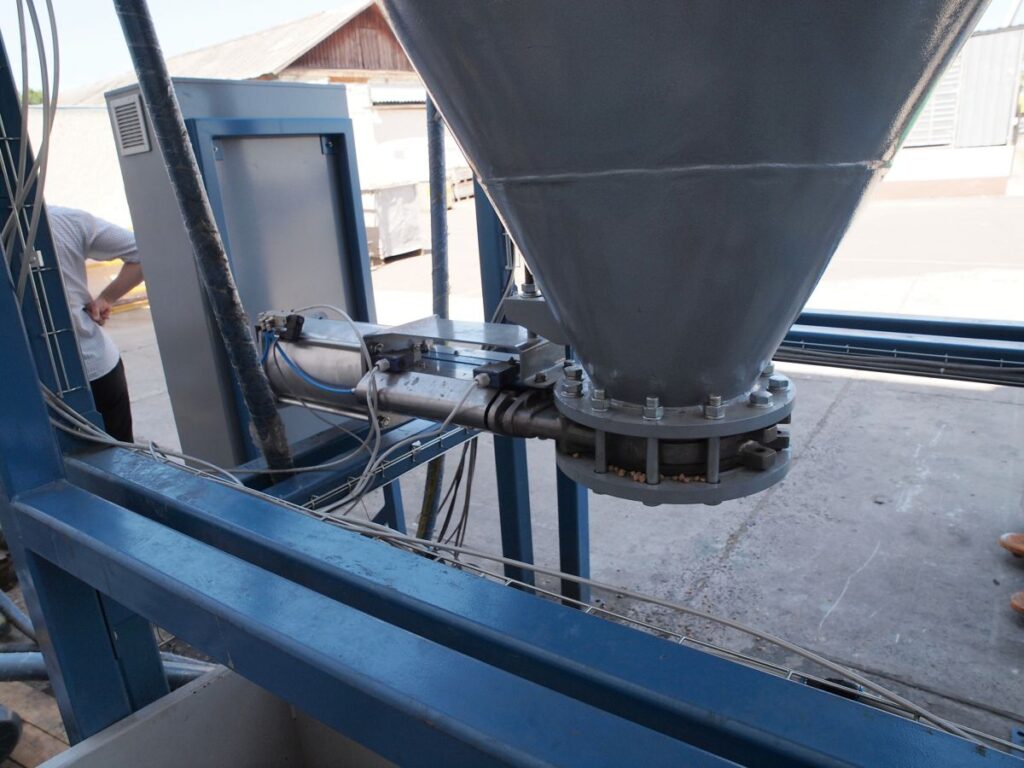

  • Filling the volume with dry pellet
  • Mixing pellets in a coater
  • Measurement of the weight of the filled coater

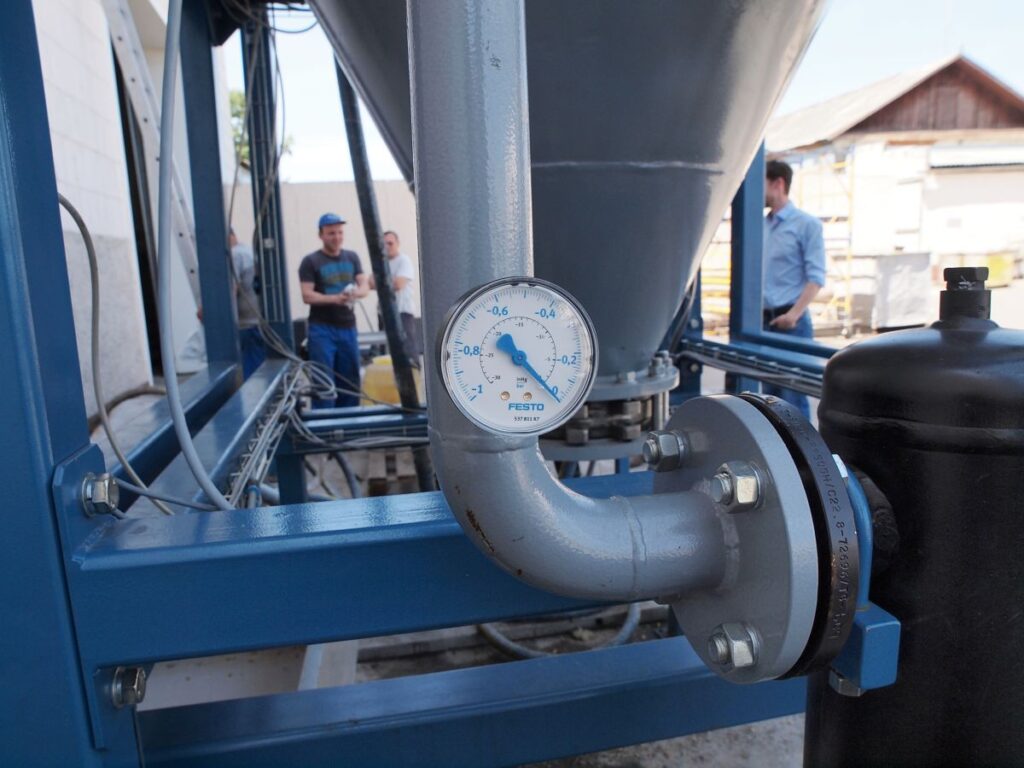

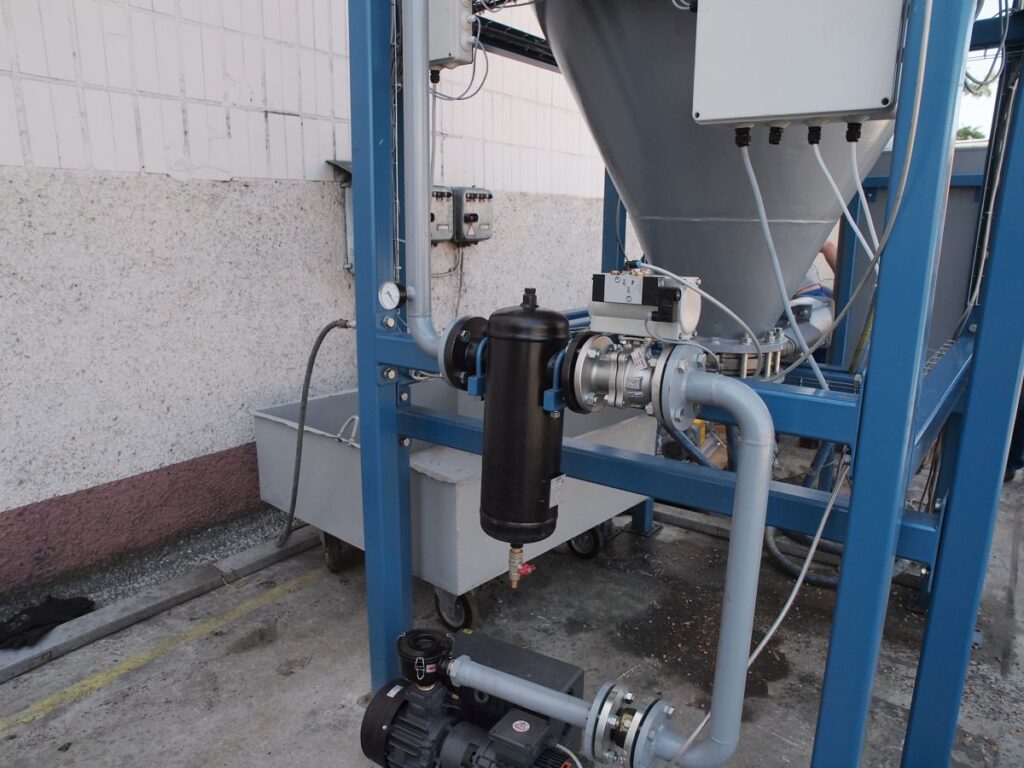

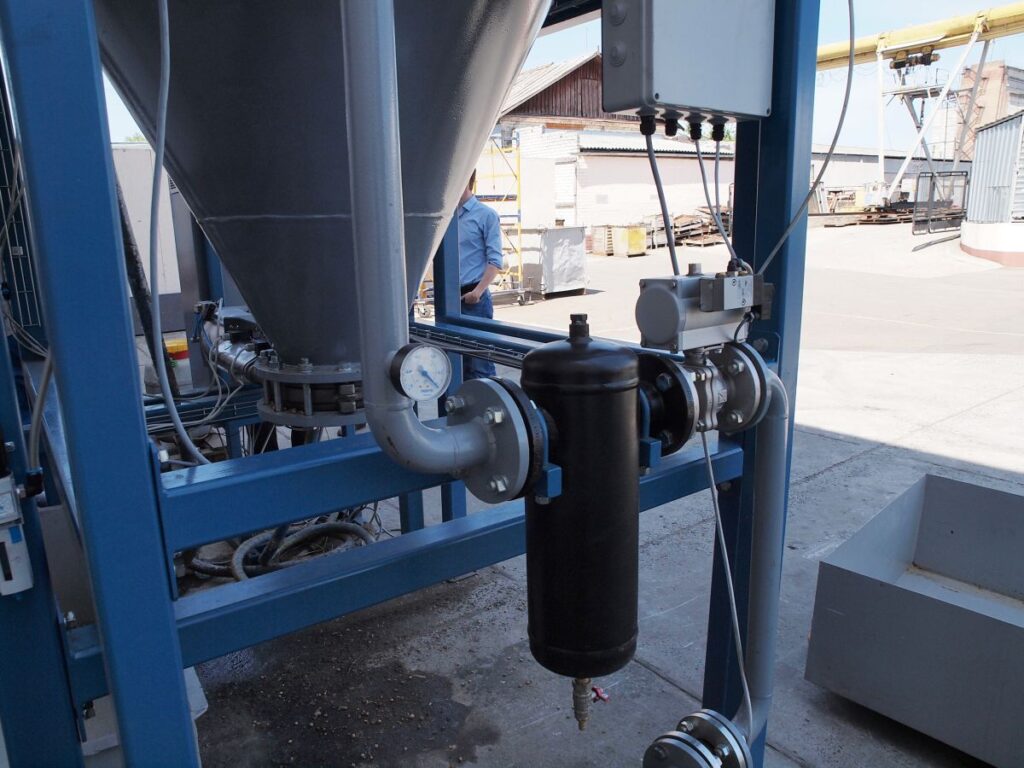

  • Pumping air out of the coater
  • Fat intake
  • Pressure equalization in the coater
  • Application of liquid / hydrated additives
  • Application of dry additives
  • Unloading pellets from coater

QUALITY ASSURANCE

Warranty period – 1 year

  • certified production ISO 9001:2015
  • Our coaters are designed for continuous and trouble-free operation
WARRANTY SUPPORT

All processes are programmed from the control panel
