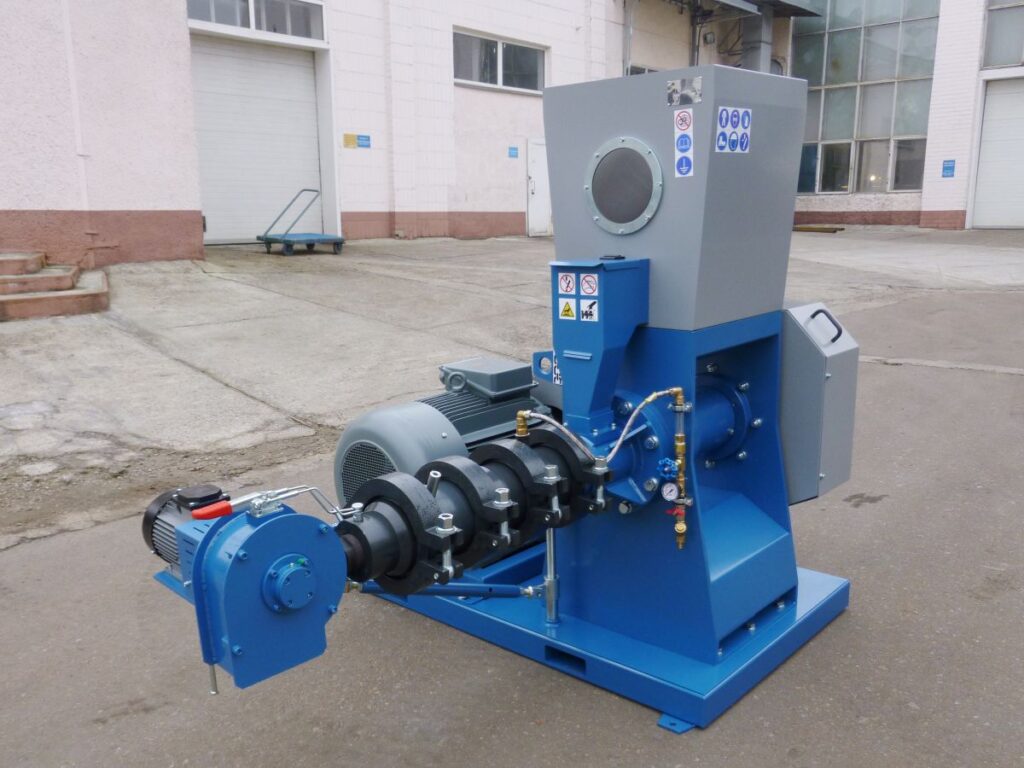

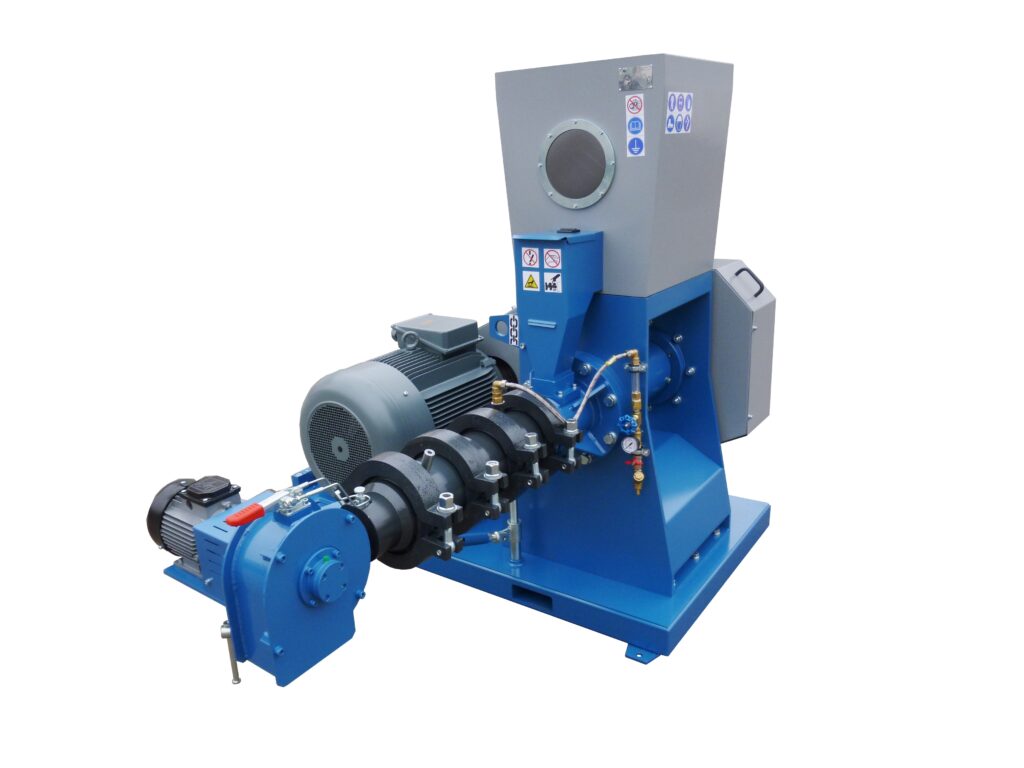

EXTRUDER E-500

USED FOR

for production of mixed feed for domestic animals: cattle, swine and poultry
for rice bran, full-fat extruded meal from soybeans, rape and sunflower seeds with increased digestibility and harmful bacteria purifying

CATALOG (PDF)

FINAL PRODUCT

Full-fat soya, full-fat rape, extruded grain, lupine

RAW MATERIALS

soybean

grain

canola

Lupine

HUMIDITY OF RAW MATERIALS: for soybean: 8 ... 12% / for cereals: 15 ... 17%

TECHNICAL SPECIFICATIONS

Capacity for soybean processing

500 kg / hour

Capacity for grain and pea processing

310 kg / hour

Length

2300 mm

Width

2100 mm

Height

1700 mm

Power

55 kW

Weight

1800 kg

For mixed feed for domestic animals: cattle, swine and poultry

For rice bran, full-fat extruded meal from soybeans, rape and sunflower seeds with increased digestibility and harmful bacteria purifying

ADVANTAGES

urease activity in soybeans is reduced to 0.05 ... 0.2 pH
the trypsin inhibitor content is reduced to 2 ... 4.5 mg / g
production of raw materials for the extraction of oil, for the production of soybean meal
production of poultry feed component - saturated with protein and fats
provides animal feed of a high quality
saves over 40 % of grain for animal feeding
saves over 30 % of electricity while processing the feedstock prior to mechanical oil extraction

SEQUENCE OF OPERATION

The first step is the pretreatment of raw material. It must have the proper moisture and must be cleaned from metal residues and any waste.

Raw material is fed from hopper intoa screw barrel. Magnet catcher is installed within a hopper so it can catch any metal residues you’ve missed. Inside the barrel there is a screw that conveys the raw material forward to outlet die.

Extrusion is a process of thermal treatment, sterilization, dehydration, texturing and granulating of the final product.

The product goes through the barrel while the heat is progressively increased.

During thisprocess most potentially harmful bacteriaand viruses are killed, inhibitor trypsin level in extruded soy is reduced.

The final product is shaped by forcing out through the die.

Soybean assembly of the screw part of the Extruder Е-500:
