BRONTO / Machine catalog / Feeders /

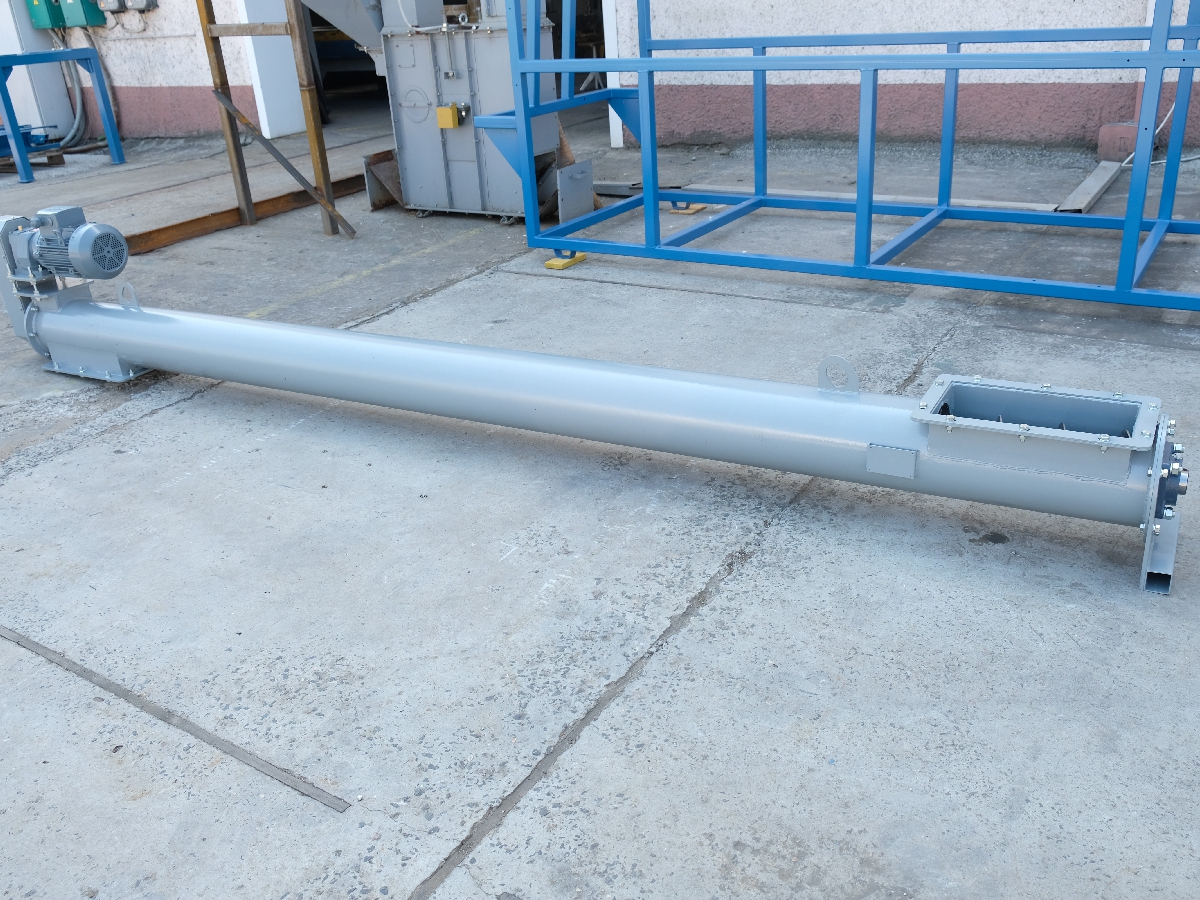

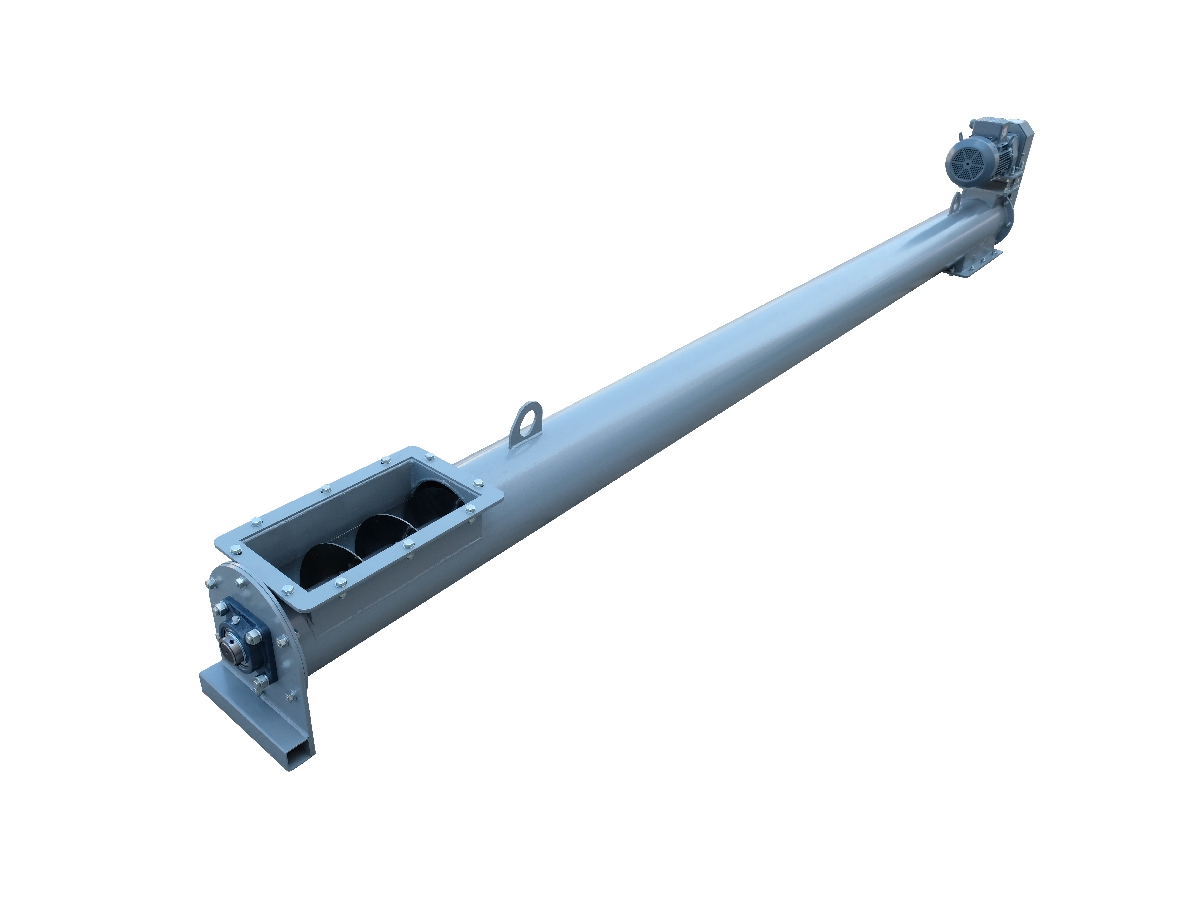

Screw feeder SF-200
FINAL PRODUCT
Grain and products of its processing
RAW MATERIALS
TECHNICAL SPECIFICATIONS
Productivity, t / hour
max 10
Productivity, m³ / hour
max 15
Tilt angle, degrees
max 60
Speed of rotation, rpm
152
Length, mm
max 6000
POWER, kW
2,2
TO MOVE PRODUCTS BETWEEN TECHNOLOGICAL EQUIPMENT
| Model | Overall dimensions (LxBxH), mm | The size between the pipes Т, mm | Mass, kg |
| SF-200 | 1750х280х640 | 1000 | 145 |
| SF-200-01 | 2000х280х640 | 1250 | 155 |
| SF-200-02 | 2250х280х640 | 1500 | 165 |
| SF-200-03 | 2500х280х640 | 1750 | 175 |
| SF-200-04 | 2750х280х640 | 2000 | 190 |
| SF-200-05 | 3000х280х640 | 2250 | 200 |
| SF-200-06 | 3250х280х640 | 2500 | 210 |
| SF-200-07 | 3500х280х640 | 2750 | 220 |
| SF-200-08 | 3750х280х640 | 3000 | 230 |
| SF-200-09 | 4000х280х640 | 3250 | 240 |
| SF-200-10 | 4250х280х640 | 3500 | 250 |
| SF-200-11 | 4500х280х640 | 3750 | 260 |
| SF-200-12 | 4750х280х640 | 4000 | 270 |
| SF-200-13 | 5000х280х640 | 4250 | 280 |
| SF-200-14 | 5250х280х640 | 4500 | 290 |
| SF-200-15 | 5500х280х640 | 4750 | 300 |
| SF-200-16 | 5750х280х640 | 5000 | 310 |
| SF-200-17 | 6000х280х640 | 5250 | 320 |
| SF-200-18 | 6250х280х640 | 5500 | 330 |
The feeder is not designed to work without filling the auger with raw materials.
ADVANTAGES
- Transports raw material heated up to 120 … 150 °С
QUALITY ASSURANCE
Warranty period is 1 year
- all machines are certified according to ISO 9001: 2015
- our feeder are designed for continuous and trouble-free operation
