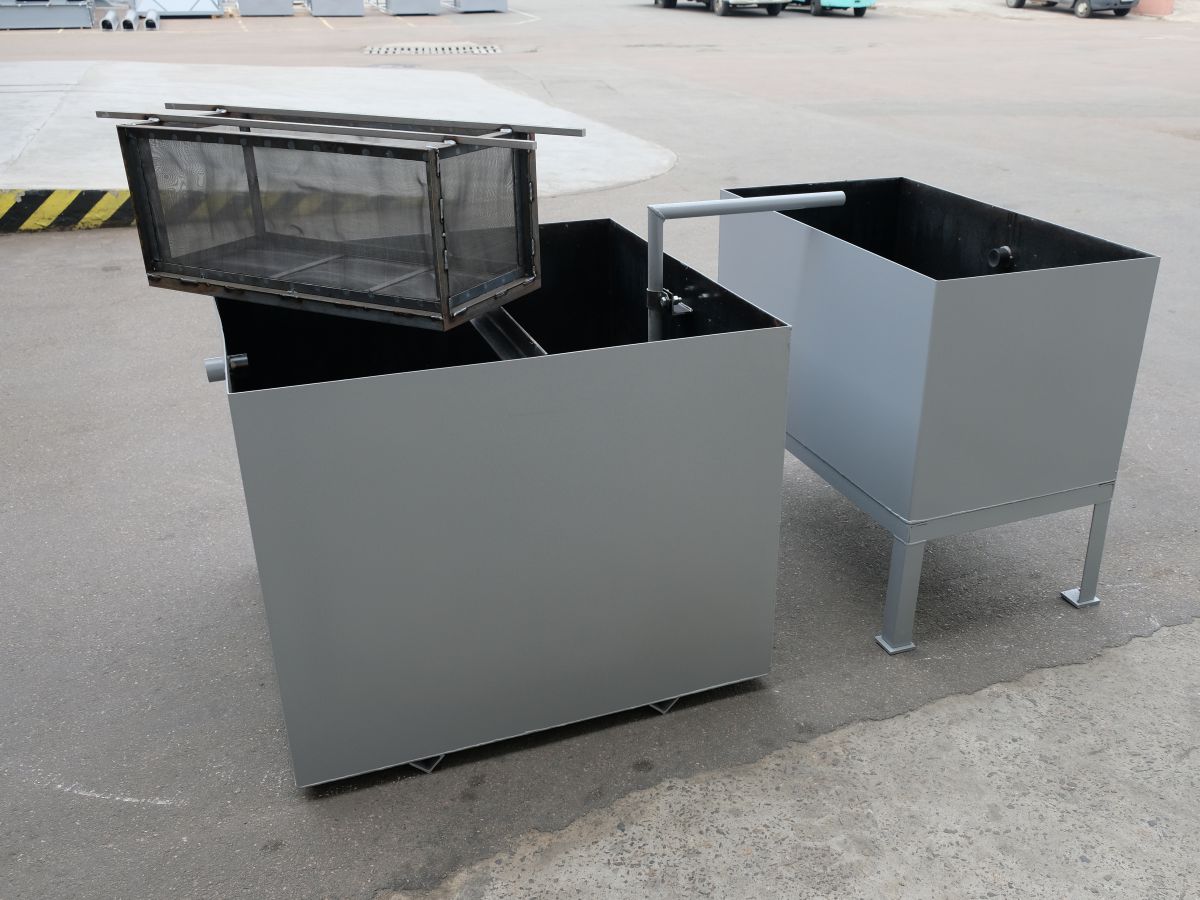

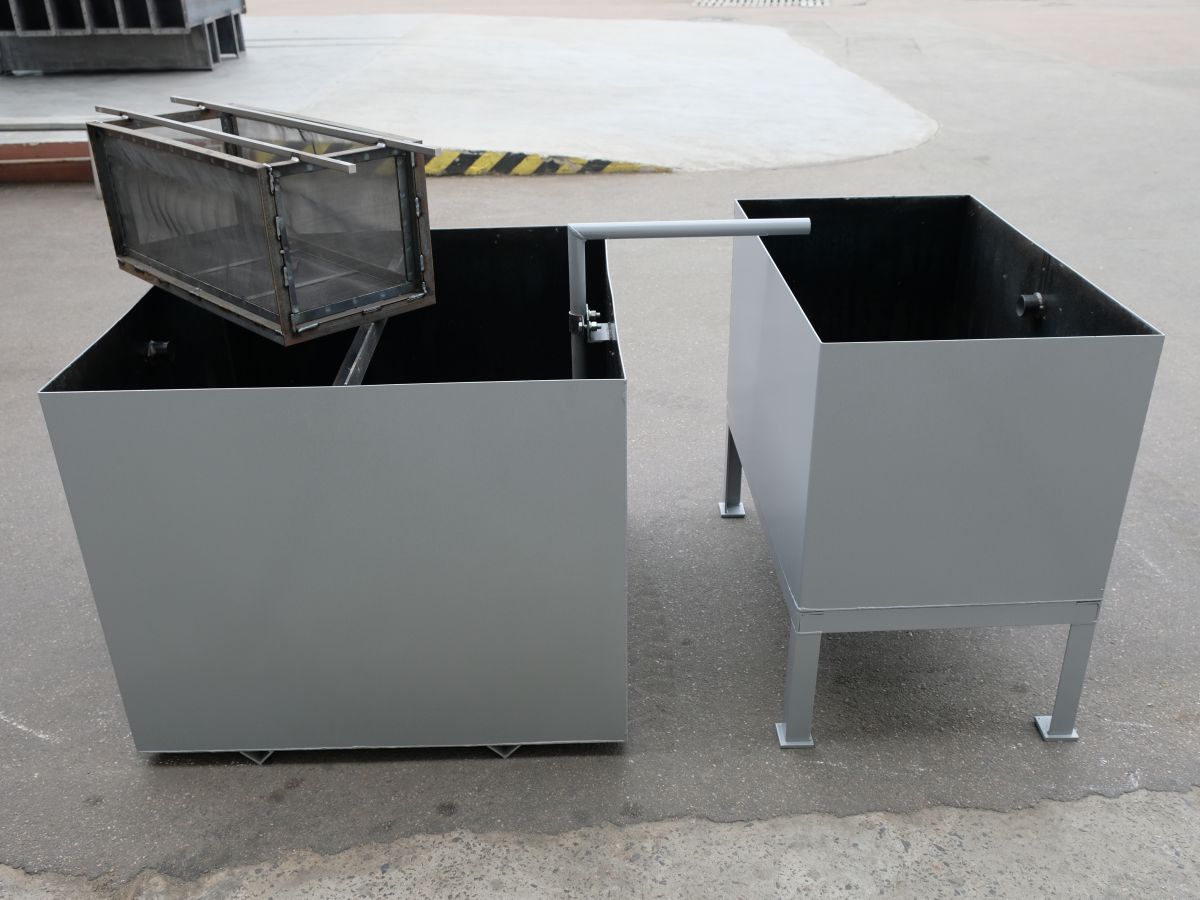

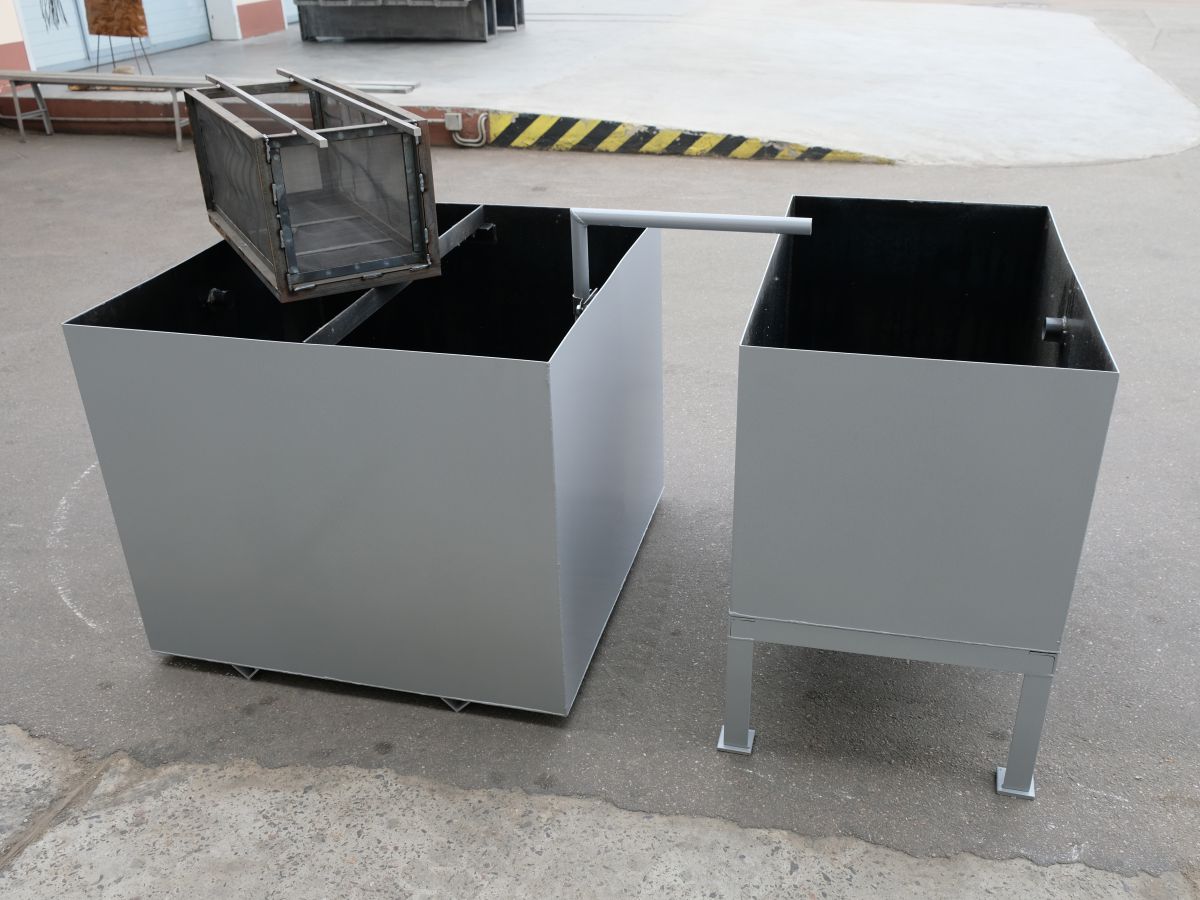

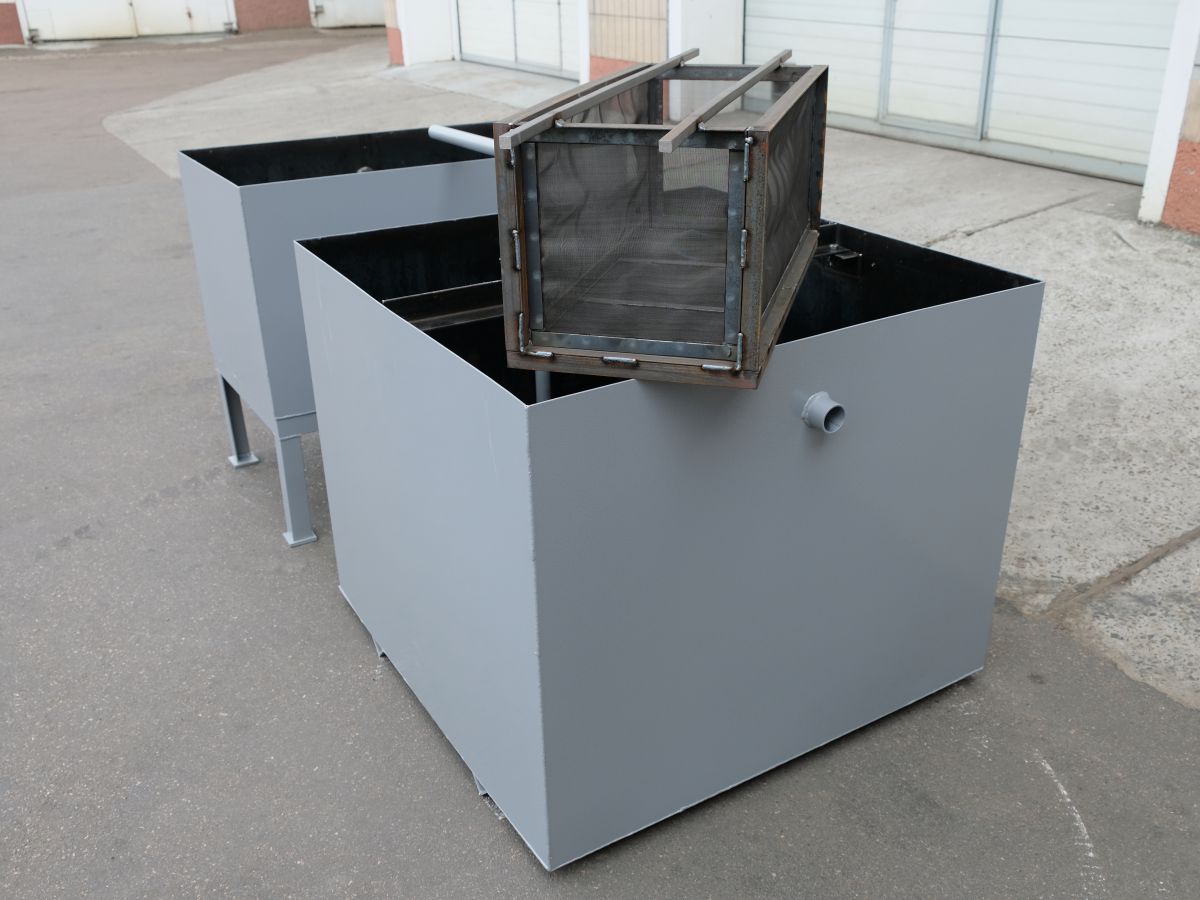

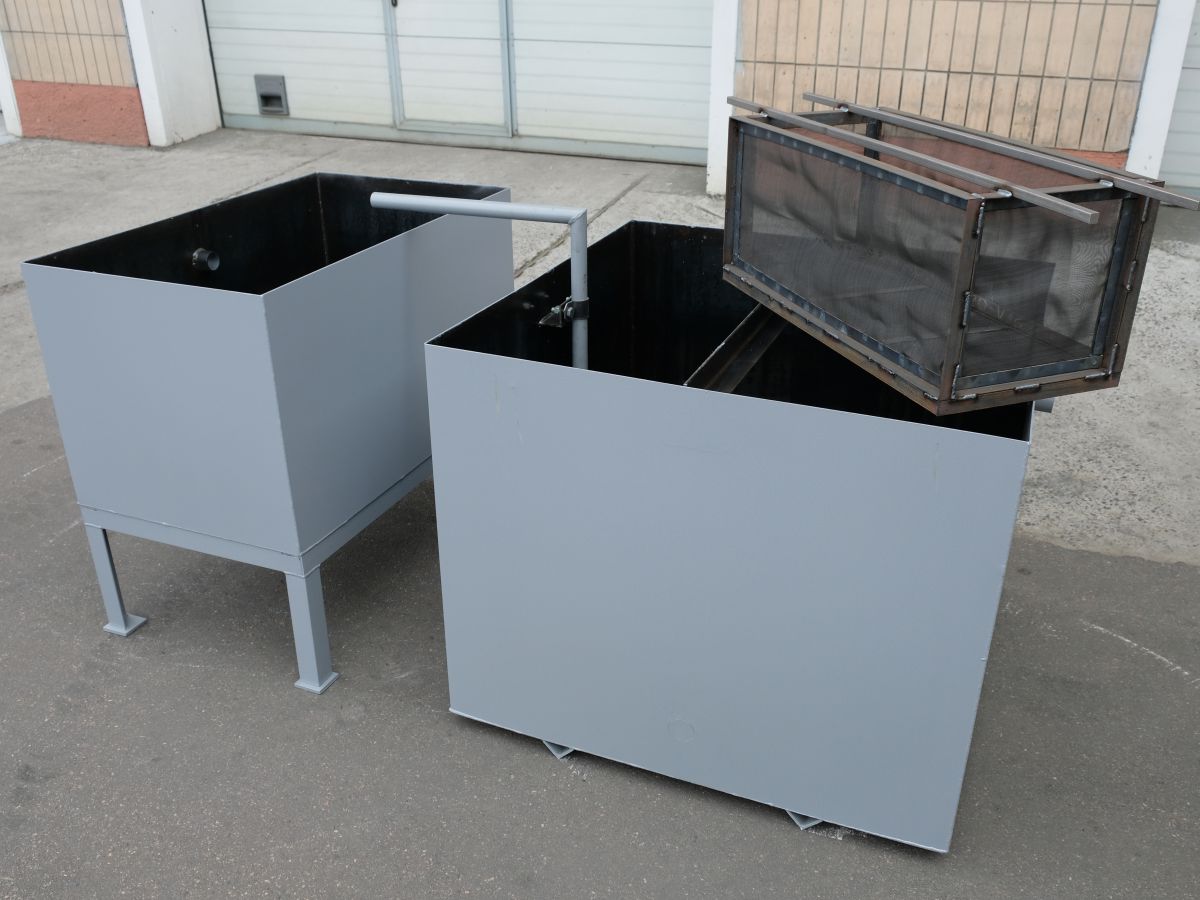

OIL SEDIMENT SEPARATOR GL-1100

TECHNICAL SPECIFICATIONS

Volume

1100 L

Length

1650 mm

Width:

1000 mm

Height

900 mm

Weight

200 kg

About GL-1100 oil sediment separator:

Oil sediment filtration systems



USED FOR:

  • for filtering large, solid residues immediately after pressing the oil in an oil press



RAW MATERIALS:

  • vegetable oil coming from oil press



MORE ABOUT SOYBEAN PROCESSING

ADVANTAGES

  • Rapid cleaning of large solid particles
  • Simplicity of design

QUALITY ASSURANCE

Warranty period is 1 year

  • all machines are certified according to ISO 9001: 2015
  • our oil sediment catcher are designed for continuous and trouble-free operation
WARRANTY SUPPORT

SEQUENCE OF OPERATION

  • Oil with a collapse comes from the oil press to the grounds basket installed in the tank (300 l)

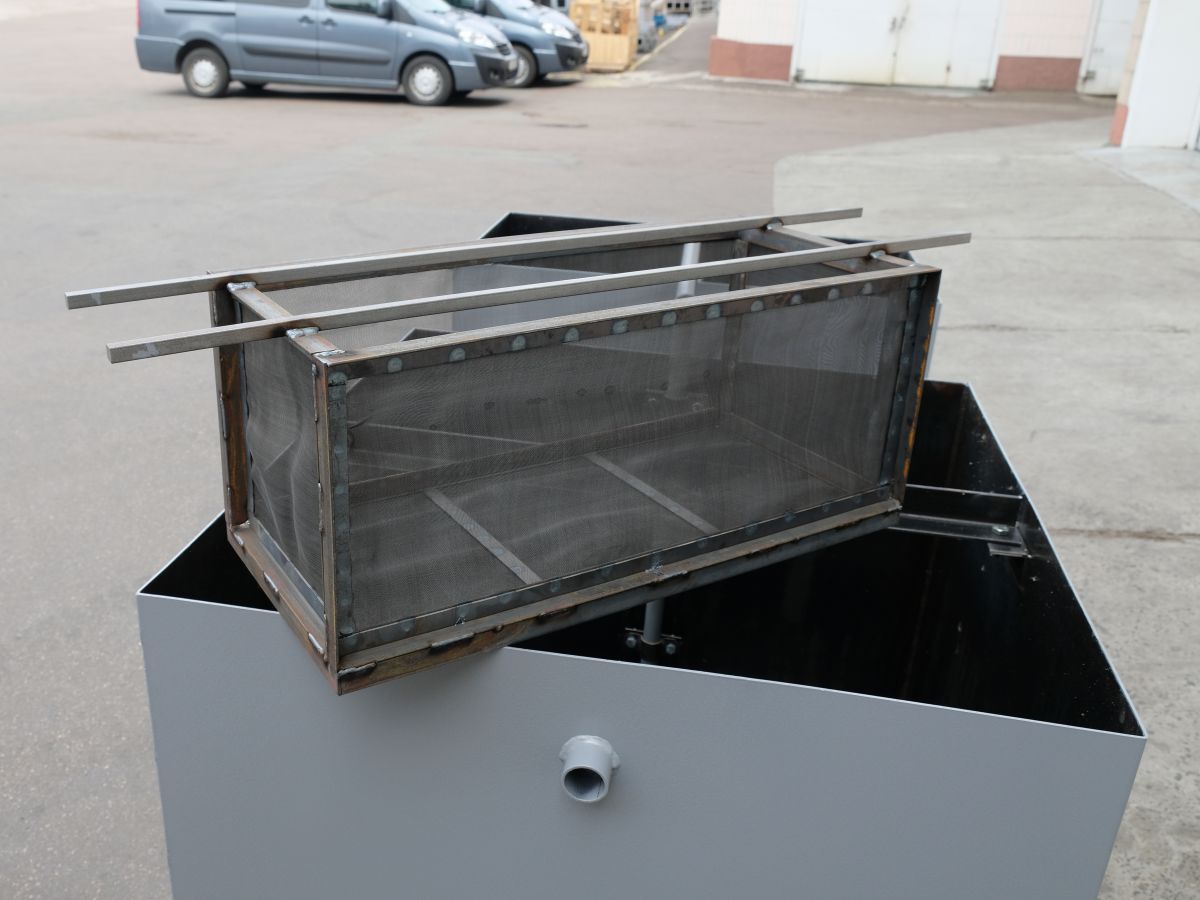

  • The oil passes through the basket net, leaving the largest particles in it
  • Oil flows by gravity into containers (800 l)
  • In the tank, the first stage of sedimentation of microparticles collapses, after which the oil is pumped through the inlet pipe through a pipeline to the tanks for settling oil or to filter
