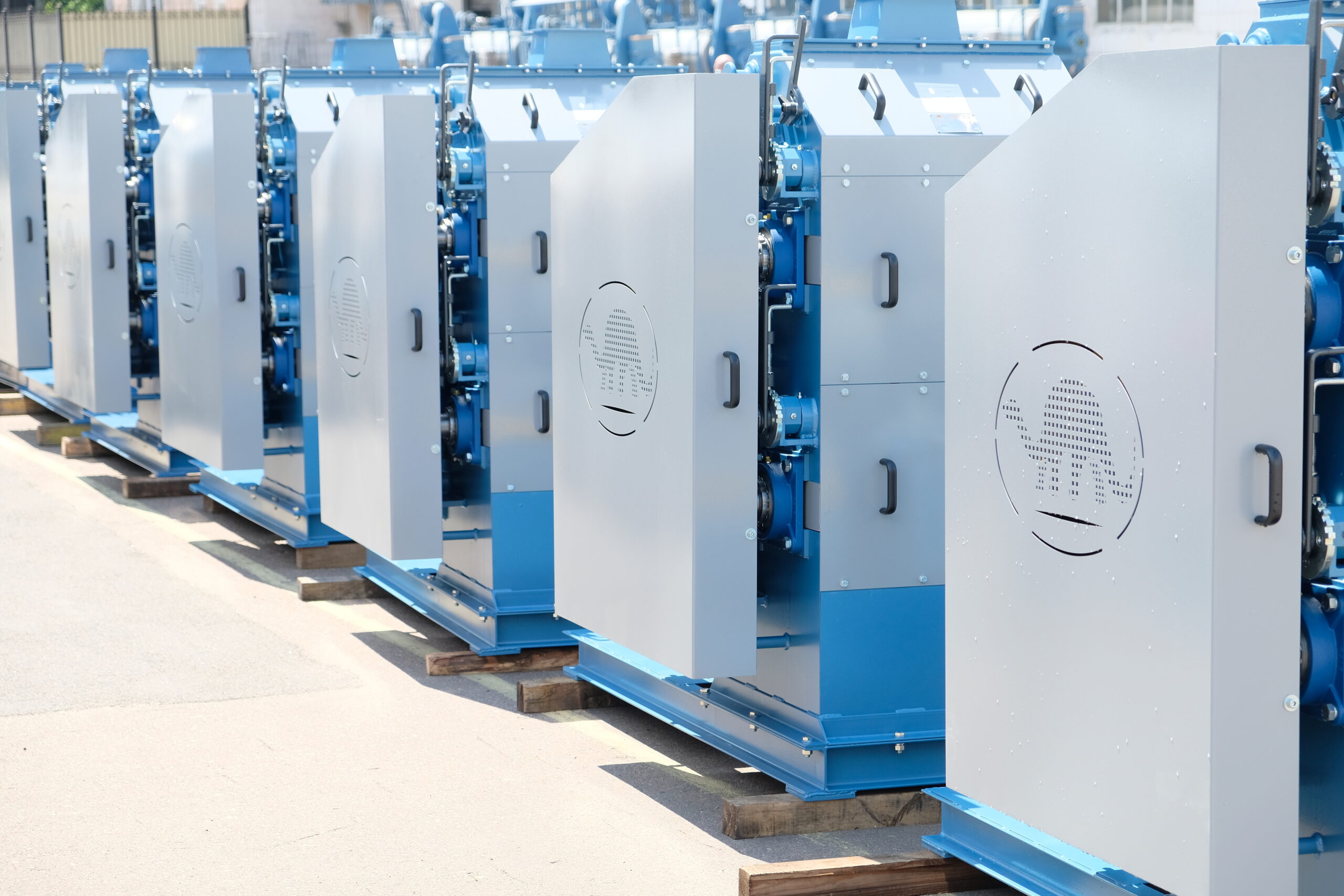

DEHULLER MILL LSG-4

USED FOR

  • get soybean kernels
  • get soybean hulls
CATALOG (PDF)

FINAL PRODUCT

soybean hulls, soybean kernels

RAW MATERIALS

soybeans

Humidity of raw materials: 7 ... 10%

TECHNICAL SPECIFICATIONS

Productivity

max 4000 kg / h

The remainder of the husk in the product (from the initial)

max 1,5%

Length

6000 mm

Width

2400 mm

Height

5500 mm

Weight

4000 kg

POWER

24 kW

Helps to increase protein content  of soy feedstock prior to processing

ADVANTAGES

  • increases the mass fraction of protein (protein) in soy products after processing
  • improves oil yield during spin cycle: by 2 ... 3% continuous operation
  • air flow is regulated by a gate valve

SEQUENCE OF OPERATION

  • Soya dried up to 8 … 9% is fed into a four-roll grinder GS-4
  • Beans are chopped and compressed
  • Beans are compressed between the first pair of crusher rolls. The shell bursts, and the core breaks into several parts
  • Soya mixture falls on the second pair of rolls (a smaller gap is established between them). The grinding process is repeated
  • A mixture of high protein soybean core and shells enters the feeder system and enters the MA-4 air separator
  • The soybean core is lowered through the air separator channels and discharged from the crusher-husk system
  • Soy husk has a low specific gravity and high windage. Therefore, with the help of the air flow created by the fan, it rises up and is removed from the air separator through a cyclone
  • In soybeans, most of the fiber is in the shell, and protein in the soy core
  • The output of the shell (fiber) using a crusher-husk leads to an increase in the mass fraction of protein in soybean meal

QUALITY ASSURANCE

Warranty period is 1 year

  • all machines are certified according to ISO 9001: 2015
  • our peeler are designed for continuous and trouble-free operation
WARRANTY SUPPORT

If you are interested in decreasing the final fiber content, increasing the protein in the product and increasing the extruder efficiency and you will never skip soy dehulling.
