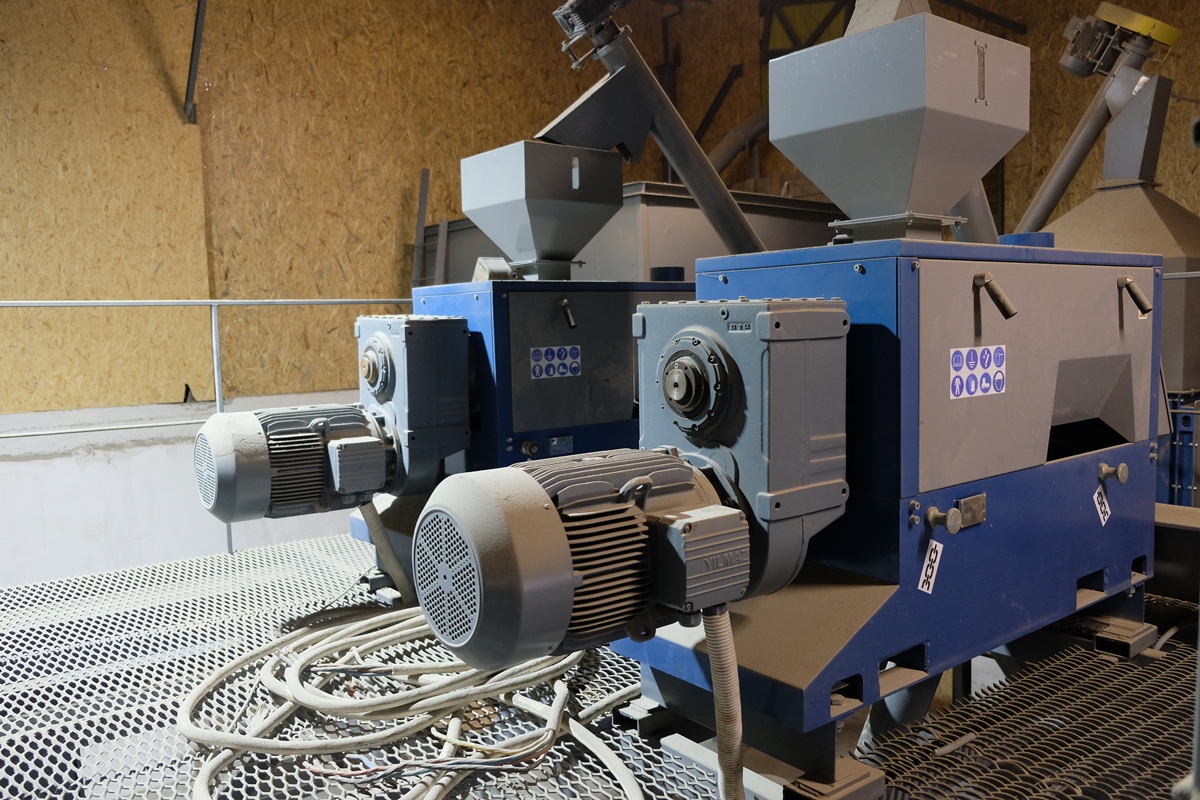

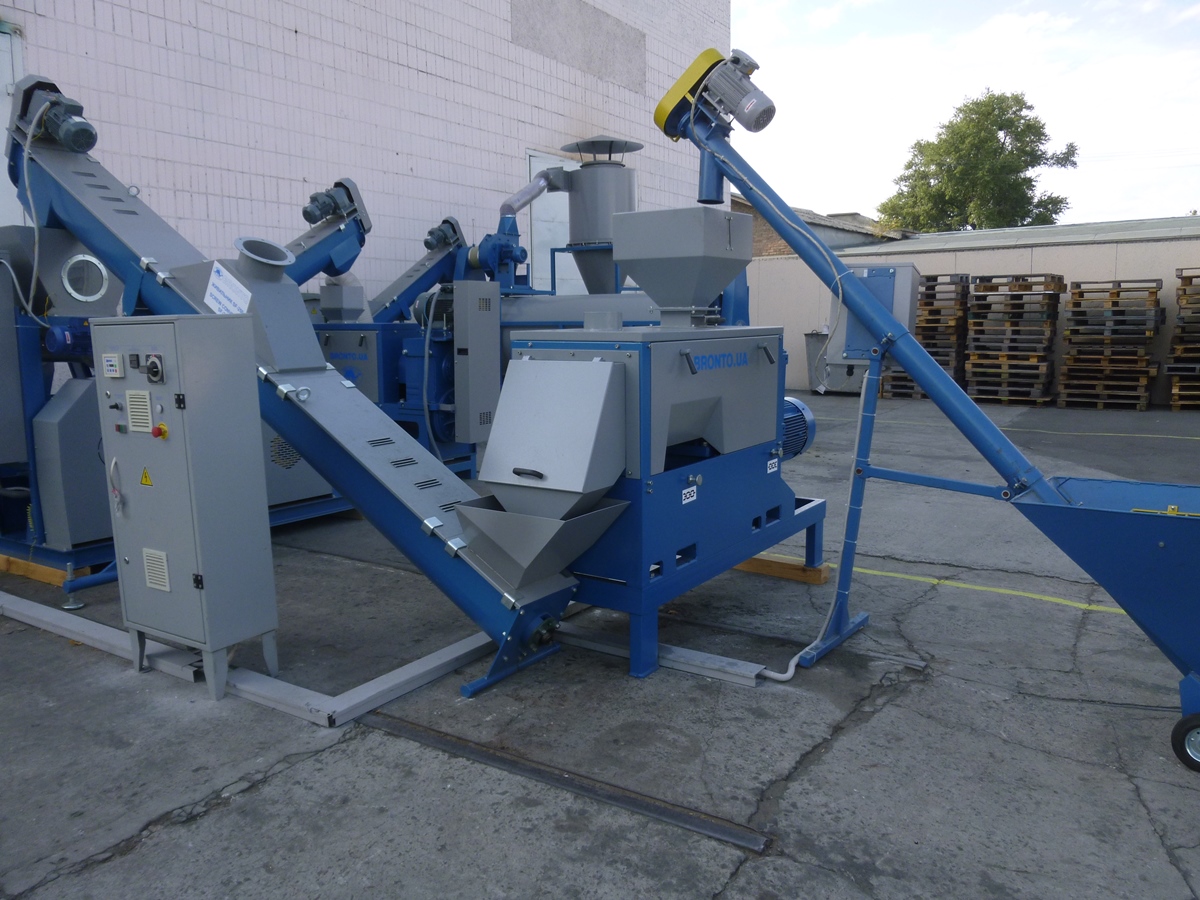

PRESSE A HUILE RP-500
cold pressed vegetable oil, semi-fat-free cake
Humidity of raw materials: 6 ... 8%
500 kg / h
Oil content of cake
22 ... 25% (oil yield up to 27%)
Oil content of raw materials
Humidity of raw materials
6 ... 8%
Raw material processing temperature: max 60 ºC
SÉQUENCE DE TRAVAIL
Raw materials are loaded into the press hopper.
Through the valve under the hopper, the material is lowered into the loading unit.
The helical shaft moves the raw materials from the loading unit to the extraction unit.
The diameter of the hollows of the screws increases, the free volume for raw materials decreases. This leads to compression and grinding of seeds. The process of grinding seeds under pressure heats the mass and leads to the extrusion of vegetable oil.
The oil flows into the collection chamber created by the elements of the press frame, and then through the nozzle in the lower part of the press is discharged to the workshop oil collection system.

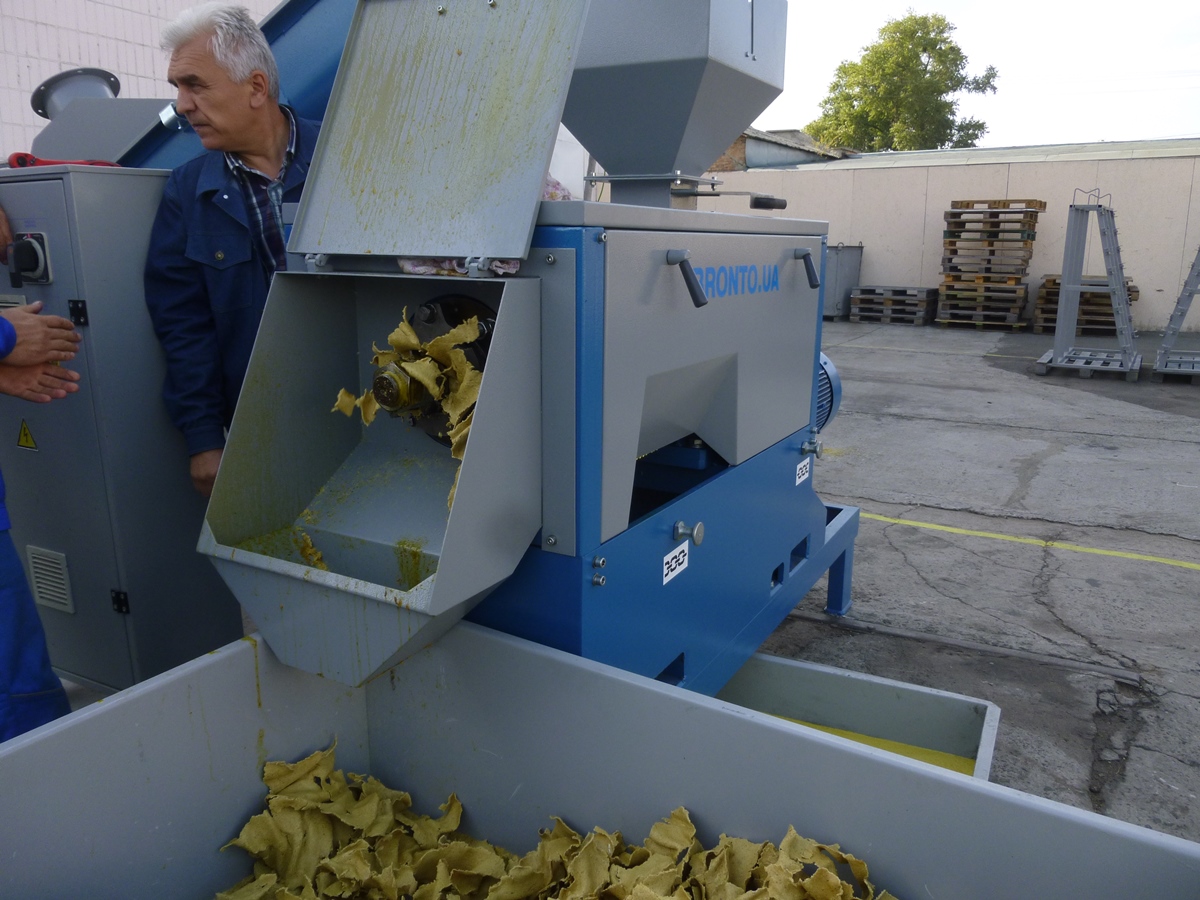

The cake continues to move along the extraction unit, and at the exit it is crushed by the impeller and removed from the press to the workshop system for transporting the cake.
Adjustment of shaft revolutions (from the control panel):
Warranty period is 1 year
Resistance of working parts up to 5000 t
