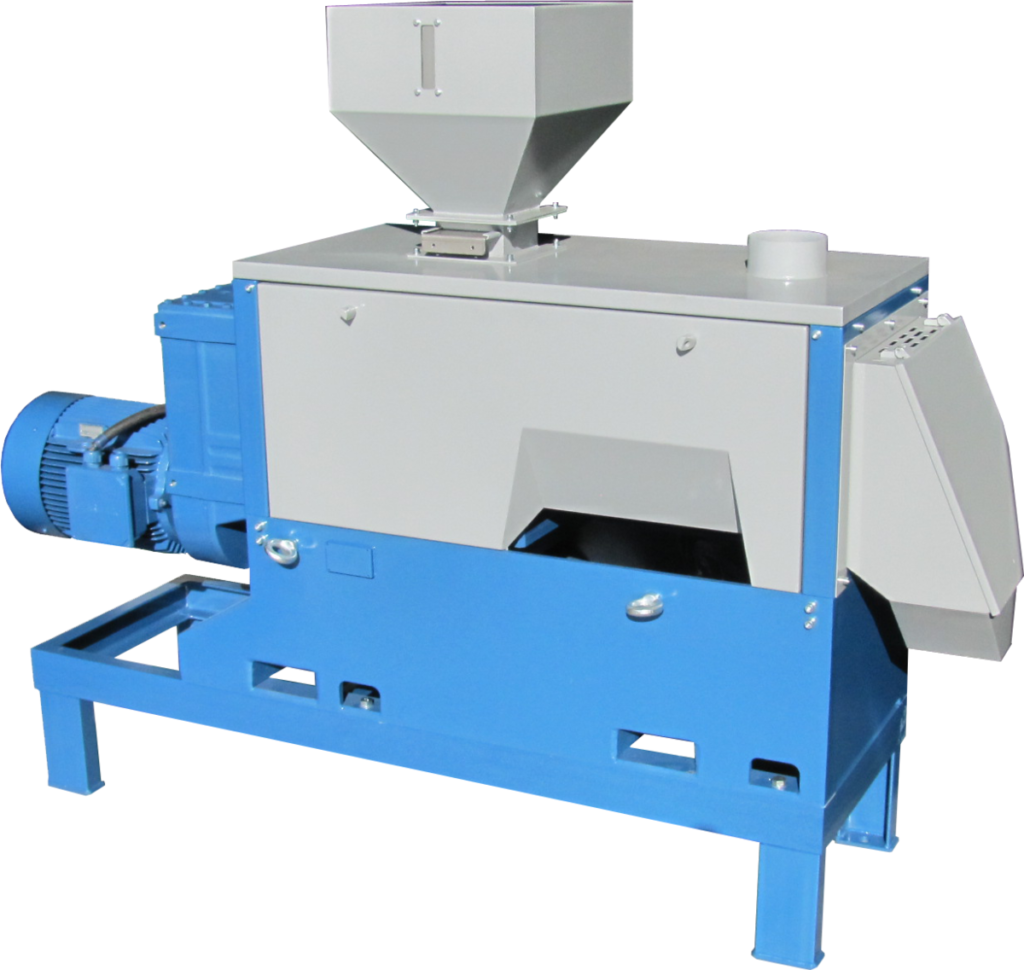

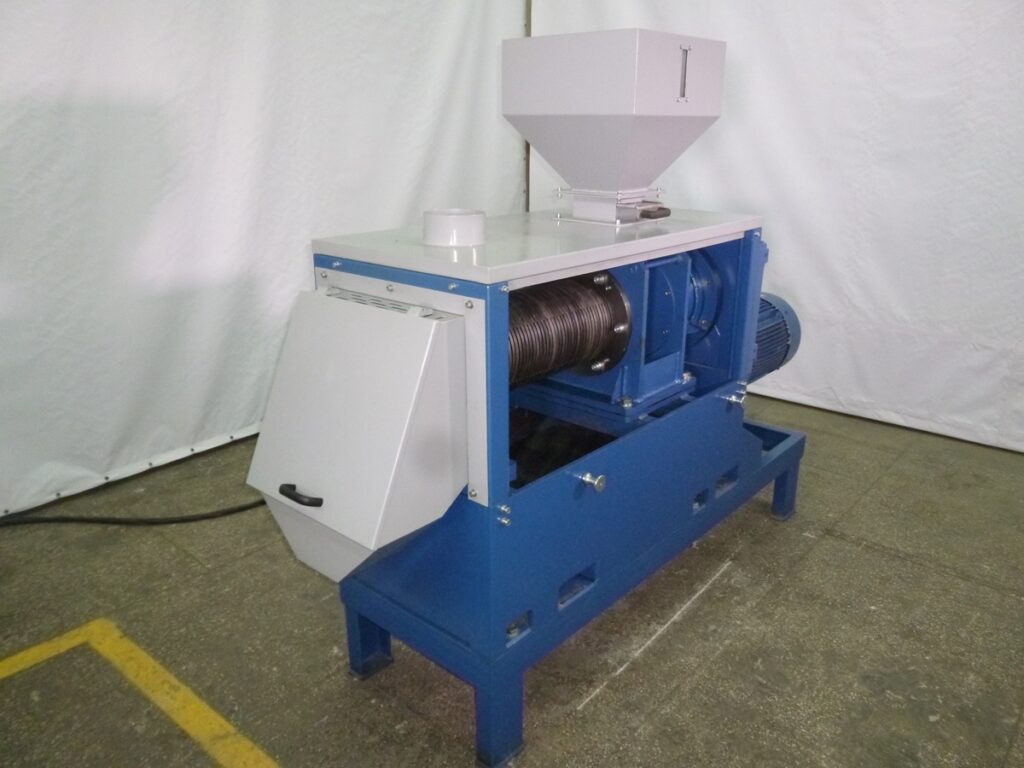

OIL PRESS RP-500

USED FOR

  • for preliminary extraction of oil in double-extraction lines
  • oil extraction at temperatures up to 60 ºC

FINAL PRODUCT

cold pressed vegetable oil, semi-fat-free cake

RAW MATERIALS

Humidity of raw materials: 6 ... 8%

TECHNICAL SPECIFICATIONS

Productivity

500 kg / h

Oil content of cake

22 ... 25% (oil yield up to 27%)

Oil content of raw materials

max 52%

Humidity of raw materials

6 ... 8%

Length

2430 mm

Width

760 mm

Height

1800 mm

Weight

1280 kg

POWER

22 kW

Raw material processing temperature: max 60 ºC

ADVANTAGES

  • shaft speed control - from the control panel
  • resistance of working parts up to 5000 t
  • easy to maintain

SEQUENCE OF OPERATION

Raw materials are loaded into the press hopper.

Through the valve under the hopper, the material is lowered into the loading unit.

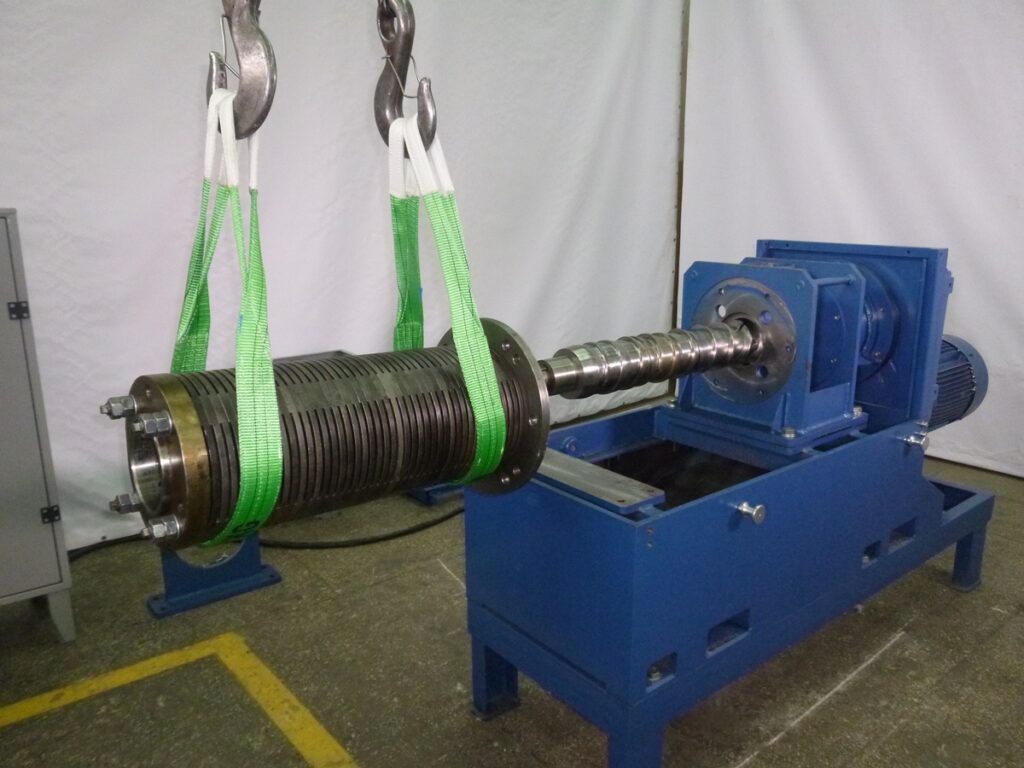

The helical shaft moves the raw materials from the loading unit to the extraction unit.

The diameter of the hollows of the screws increases, the free volume for raw materials decreases. This leads to compression and grinding of seeds. The process of grinding seeds under pressure heats the mass and leads to the extrusion of vegetable oil.

The oil flows into the collection chamber created by the elements of the press frame, and then through the nozzle in the lower part of the press is discharged to the workshop oil collection system.

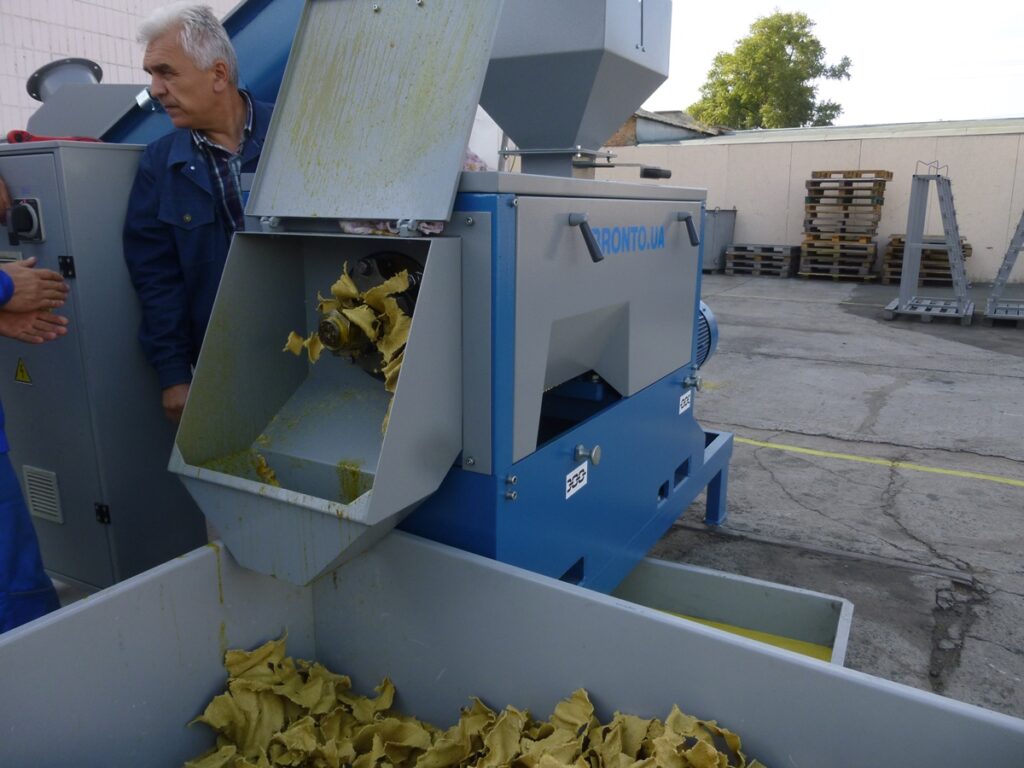

The cake continues to move along the extraction unit, and at the exit it is crushed by the impeller and removed from the press to the workshop system for transporting the cake.

Adjustment of shaft revolutions (from the control panel):

  • increases the efficiency of oil extraction – increases the yield of oil
  • allows you to adjust to the characteristics of raw materials

QUALITY ASSURANCE

Warranty period is 1 year

  • all machines are certified according to ISO 9001: 2015
  • our oil press are designed for continuous and trouble-free operation
WARRANTY SUPPORT

Resistance of working parts up to 5000 t
