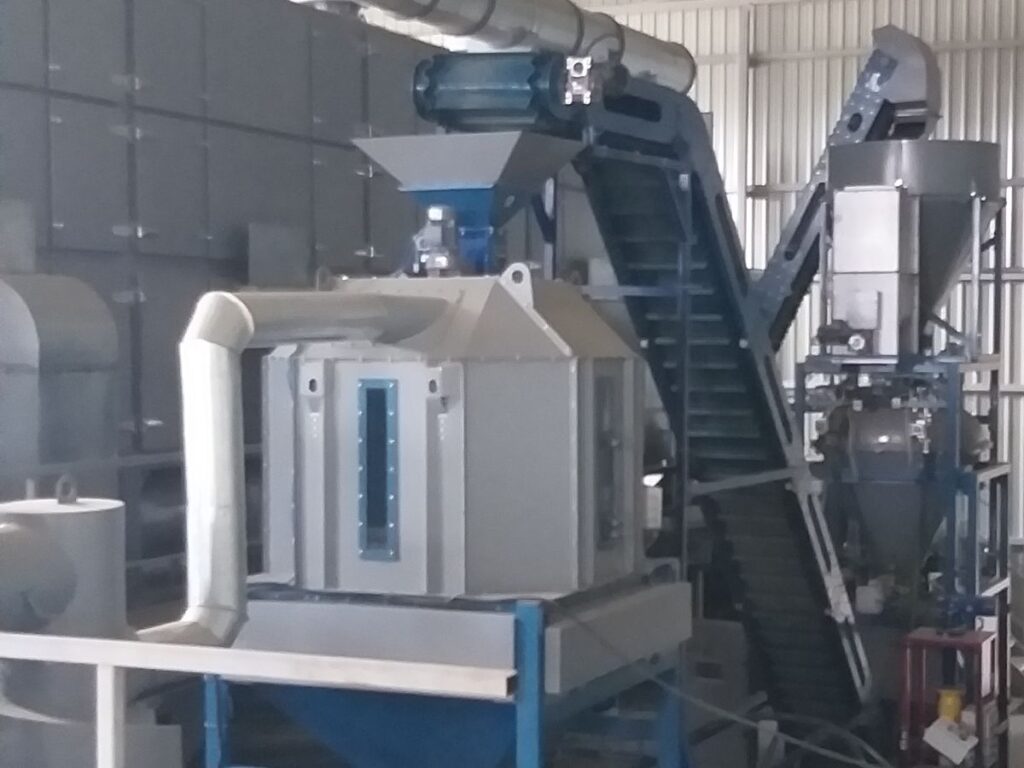

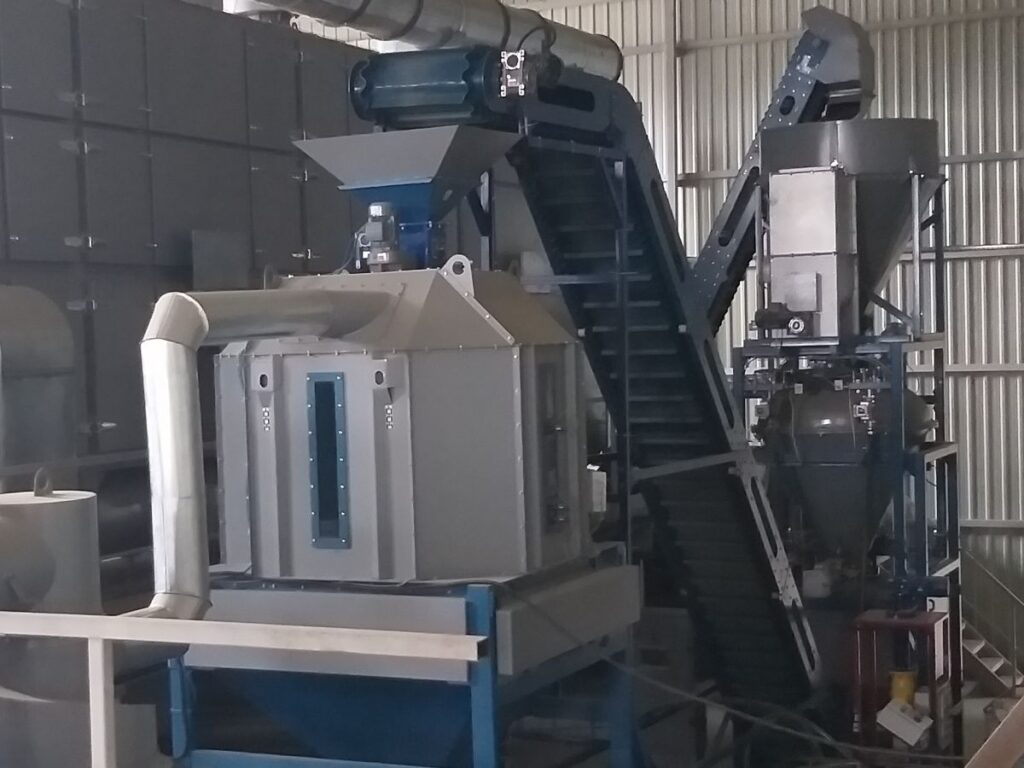

REFROIDISSEUR DE PELLETS GC-1000

CRÉÉ POUR

PRODUIT

EXTRUDED FEED PELLET (Outlet temperature: 40 ± 5 ° C)

Matière première

(inlet temperature: 85 ± 5 ° C)

CARACTÉRISTIQUES

Productivity

max 1500 kg / h

Inlet temperature

85 ± 5 ° C

Outlet temperature

40 ± 5 ° C

Volume of refrigerated product

1 m³

Length

1910 mm

Width

1610 mm

Height

2510 mm

Weight

550 kg

POWER

1.5 kW

All operating modes – set and controlled from the control panel.

POSSIBILITÉ

SÉQUENCE DE TRAVAIL

MAIN COOLER UNITS:

How the product moves:

The granules are fed into the receiving funnel 1.
Further, through the sluice gate 2, the pellet diffuser 11 enters. In the plates of the diffuser, grooves are made for adjustment.
Through the nozzle 10 there is air extraction.
Язык оригинала: русский 115/5000 The air passes through the pellets accumulated in the cooling tank 3, collects heat and is removed through the pipe 10.

As the granules accumulate, their level increases.
When the level reaches the lower sensor level 7, the sensor will signal the activation of the unloading mechanism of the granules 9.
The lower frame of the unloading mechanism is stationary in operation.
The upper frame is reciprocated, periodically opening (moving to the right: the figure above) the passage for the granules, or closing the passage for the granules (when moving to the left).

Assurance qualité

Warranty period – 1 year

All operating modes - set and controlled from the control panel.
