COOLER OE-500

FINAL PRODUCT

oil cake cooling after oil extraction cooling bulk products before storage for removing heat and vapor from oil cake, full fat soy or bulk products

TECHNICAL SPECIFICATIONS

Productivity

max 500 kg / h

Temperature after cooling

10 °C above ambient temperature

Cooler Dimensions (without cyclone):

Length

3260 mm

Width

1200 mm

Height

3000 mm

Weight

500 kg

POWER

1,85 kW

The task of the cooler is to guarantee the prevention of protein denaturation in the meal.

The raw material is fed into cooler. Screw feeder moves the product into the drum of the cooler.

The drum rotates on its axis. There are welded planks inside the press drum .
During rotation planks stir hot cake (raw) inside the drum in the direction of discharge.

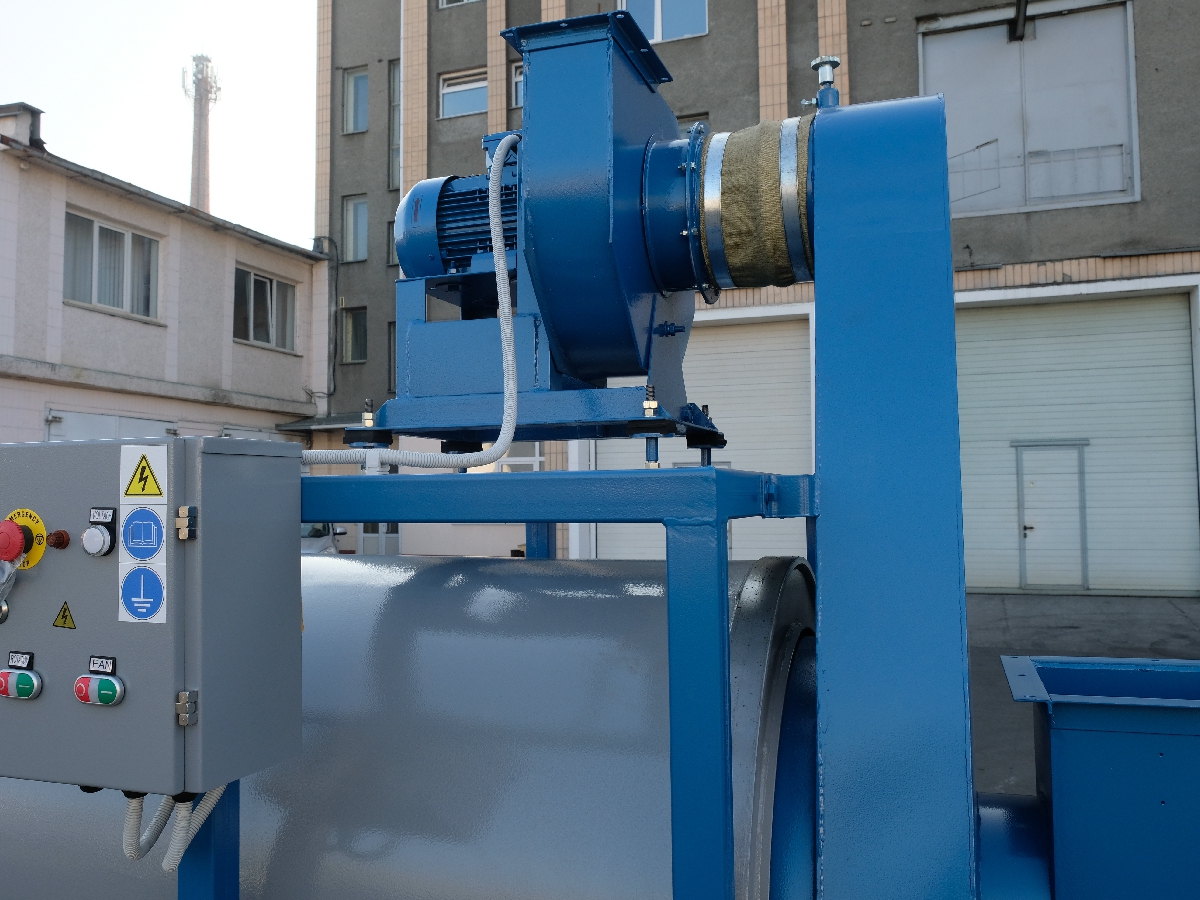

Fan is installed on the cooler near input side.
It creates a flow of air through the raw material which is stirred inside the drum.

Heat exchange occurs between the cold air and the hot extrudate.The fan inhausts the heated air from the cooler.The cooled product is discharged from the drum cooler.

Ask a Question

QUALITY ASSURANCE

Warranty period is 1 year

  • all machines are certified according to ISO 9001: 2015
  • our cooler are designed for continuous and trouble-free operation
