Extruders

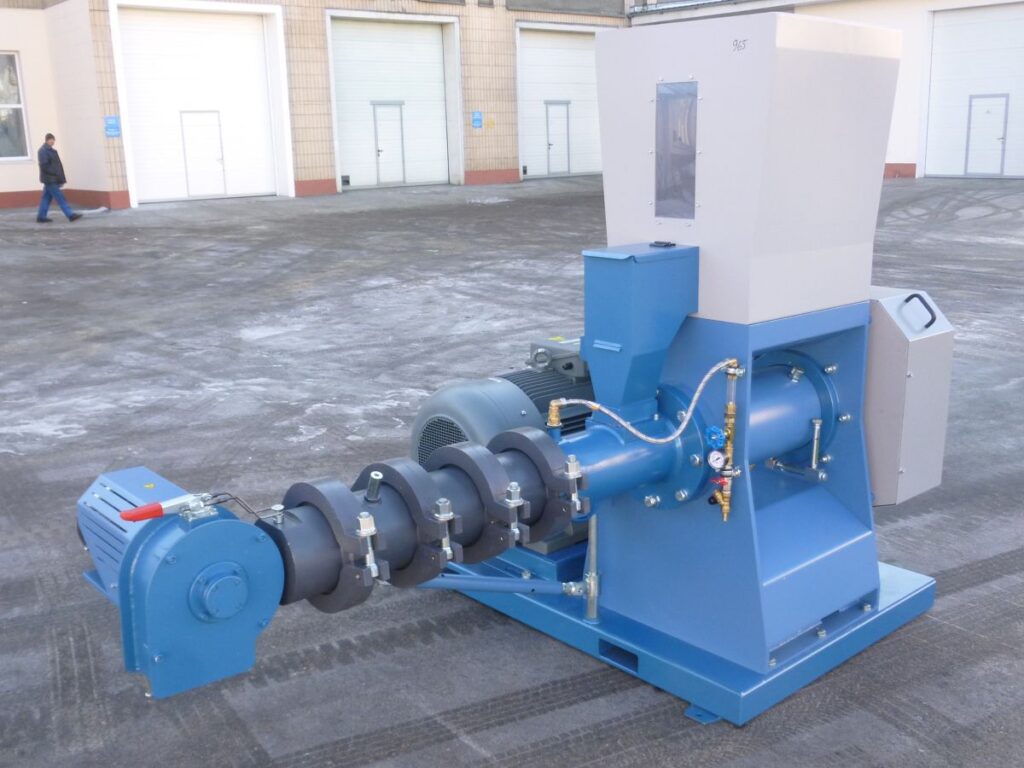

EXTRUDER E-1000

USED FOR

  • mixed feed for poultry, livestock and domestic animals such as cattle, swine etc
  • full fat extruded meal from soybeans, sunflower and rapeseed with increased digestibility and harmful bacteria purifying

FINAL PRODUCT

Full-fat soya, full-fat rape, extruded grain, lupine

RAW MATERIALS

HUMIDITY OF RAW MATERIALS: for soybean: 8 ... 12% / for cereals: 15 ... 17%

TECHNICAL SPECIFICATIONS

Capacity, kg/hour

1000

Length, mm

2500

Width, mm

2600

Height, mm

2000

Power, kW

92,5

Weight, kg

2000

The raw material is processed in the extruder for no more than 30 seconds.

Therefore, both proteins and fats in soybeans retain their nutritional qualities.

ADVANTAGES

  • urease activity in soybeans is reduced to 0.05 ... 0.2 pH
  • the trypsin inhibitor content is reduced to 2 ... 4.5 mg / g
  • production of raw materials for the extraction of oil, for the production of soybean meal
  • production of poultry feed component - saturated with protein and fats
  • provides animal feed of a high quality
  • saves over 40 % of grain for animal feeding
  • saves over 30 % of electricity while processing the feedstock prior to mechanical oil extraction

SEQUENCE OF OPERATION

  • Raw material is fed into the working body of the extruder by a screw feeder (with frequency control of speed)
  • The beans are ground and shrunk
  • Due to compression and friction, the self-heating of the raw material takes place to a temperature of 120 … 140 ° C
  • Soybeans are processed in the working body of the extruder 25 … 40 seconds
  • Short processing time with pressure and temperature – does not allow denaturing (spoil condition) of protein in soybean
  • There is a decrease in the activity of urease in soybeans to pH = 0.05 … 0.2







Soybean assembly of the screw part of the Extruder Е-1000:



Grain assembly of the screw part of the Extruder Е-1000:





QUALITY ASSURANCE

Warranty period is 1 year

  • all machines are certified according to ISO 9001: 2015
  • our extruders are designed for continuous and trouble-free operation
WARRANTY SUPPORT

More than 1 500 E-1000 extruders have been mass-produced
