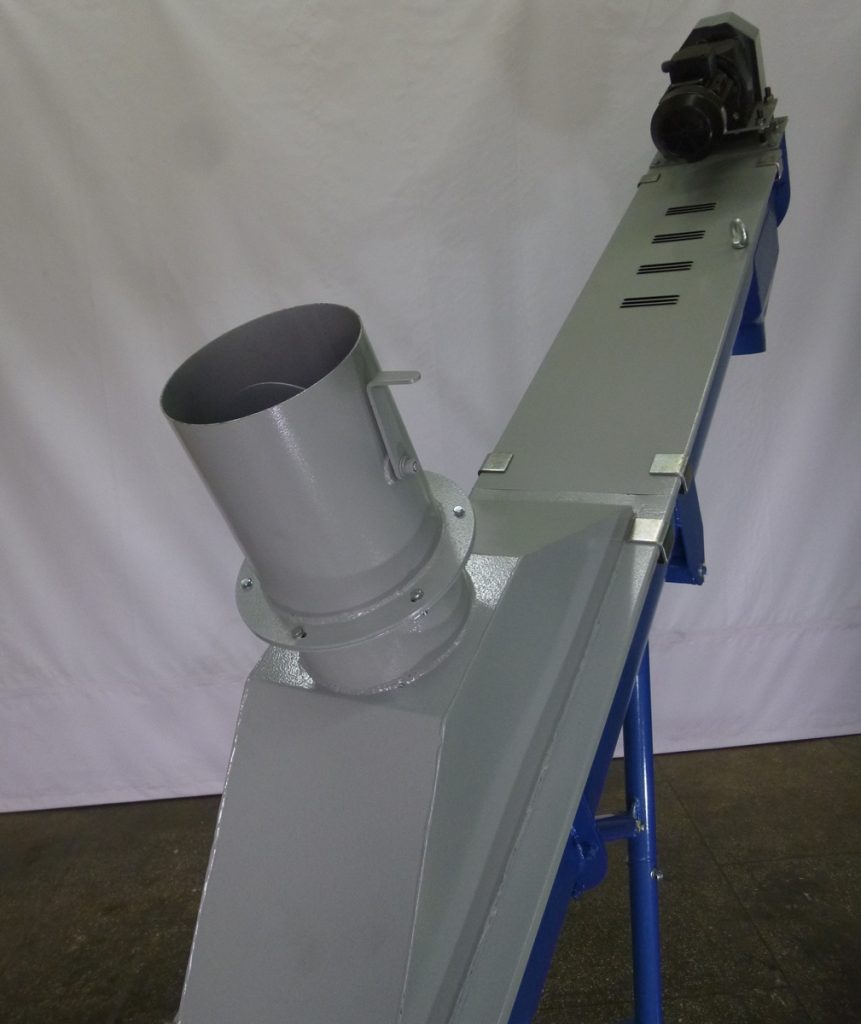

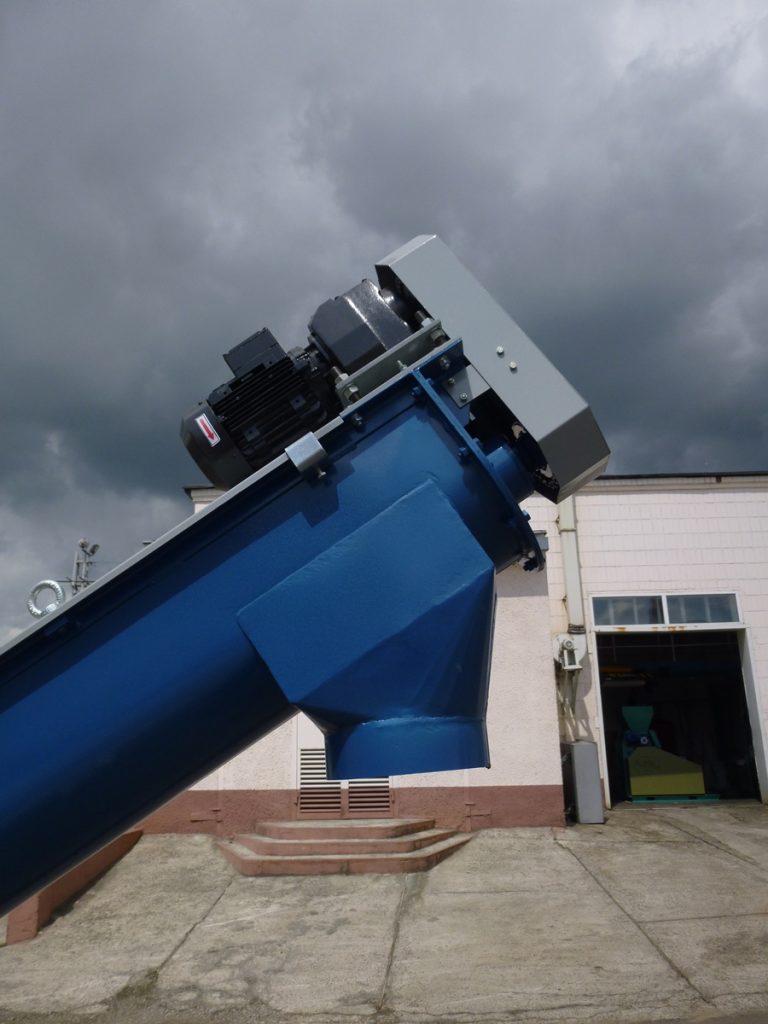

SCREW CONVEYOR SF-250



Transports raw material heated up to 120 … 150 °С

USED FOR

  • cooling of transported product
  • controlled steam removing
  • bulk products handling between processing equipment

FINAL PRODUCT

full-fat soy, rapeseed extrudate, oilcake and other bulk materials with a specific weight of 150-850 kg / m³

RAW MATERIALS

Transports raw material heated up to 120 … 150 °С

TECHNICAL SPECIFICATIONS

Productivity

max 6000 kg/h

Tilt Angle:

30 °

Unloading height

1800 mm

Loading height

700 mm

Screw diameter

250mm

Length

4250 mm

Width

456 mm

Height

732 mm

Weight

350 kg

POWER

1.1 kW

The feeder can be biased relative to other technological units – for maintenance.



In this case besides the transportation screw conveyor is used to cool the product and remove the steam.

ADVANTAGES

  • nozzles for the removal of steam
  • perforated cover
  • not attached to the floor
  • installation of frequency regulation of the shaft

SEQUENCE OF OPERATION





HOW TO SET UP THE SCREW FEEDER? PRE-OPERATION STAGE.

First of all, inspect equipment for foreign matter prior to starting the screw feeder.

Check grease availability in the bearing assembly.

Check the gear motor shaft rotation. The right shaft rotation is clockwise, according the arrow on the gear motor surface.

Make sure there are no foreign objects in the inner part of the screw feeder.

Run a short idle start (no more than 1 min.) Make sure of proper operation and the absence of extraneous sounds.

Check whether the pipe exhaust ventilation and the screw feeder are joint securely.

Open the gate mounted on the exhaust ventilation pipe.



HOW TO START THE SCREW FEEDER?

Turn ON the exhaust ventilation connected to the screw feeder.

Start the screw feeder using the control panel.

Feed the raw material into the loading hopper.





CAUTION! Feed must not exceed 8 cubic meters per hour.



HOW TO STOP THE SCREW FEEDER?

Stop the product from feeding into the screw feeder.

After the residual material has been discharged, stop the machine.

Turn OFF the exhaust ventilation connected to the screw feeder.

After the drive has completely stopped, if raw material is sticking, clean the screw, pipes and trough.



Thank you for watching! We wish you success and ease operating the screw feeder SF-250!

QUALITY ASSURANCE

Warranty period is 1 year

  • all machines are certified according to ISO 9001: 2015
  • our feeder are designed for continuous and trouble-free operation
WARRANTY SUPPORT

The feeder can be biased relative to other technological units - for maintenance.
