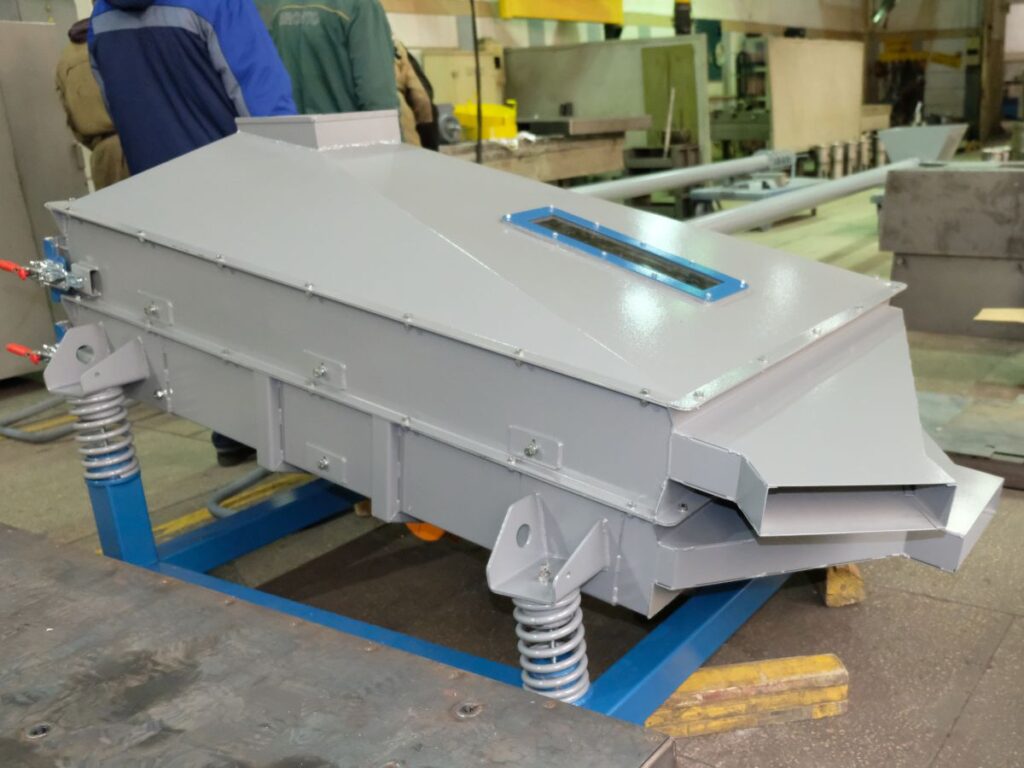

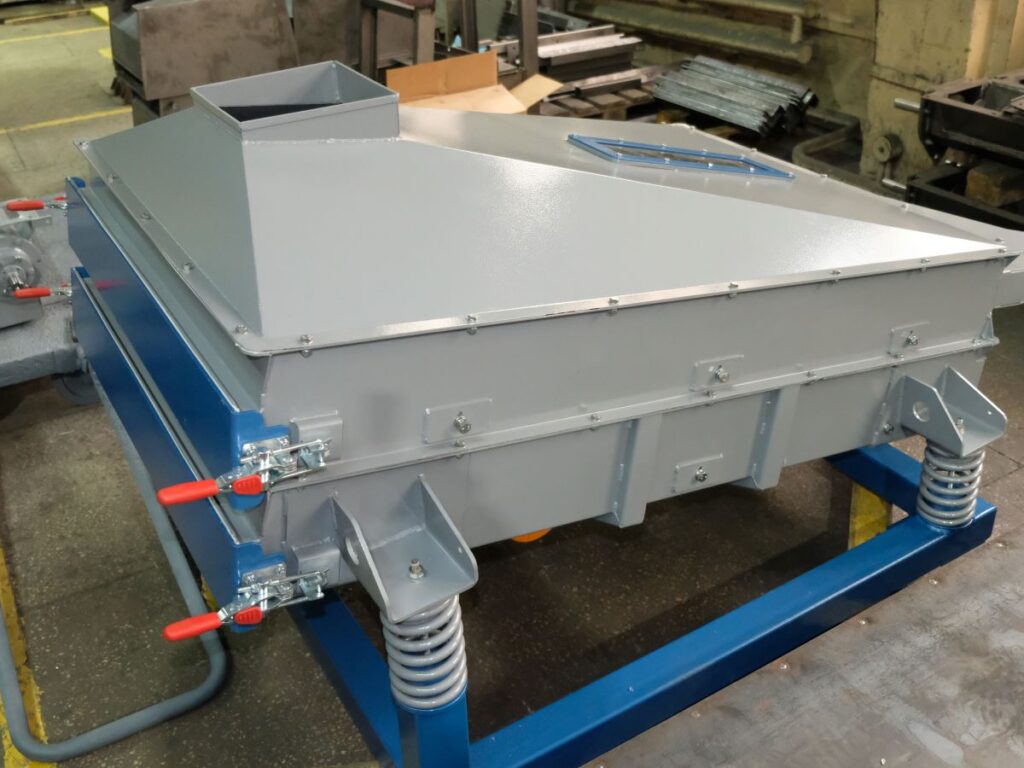

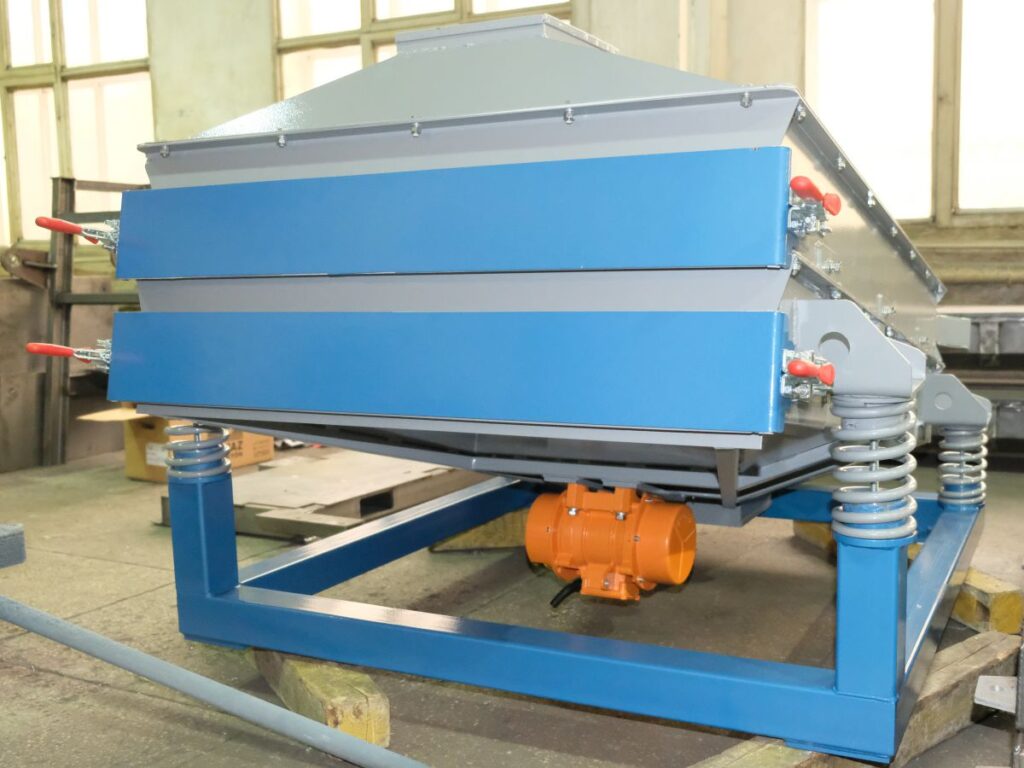

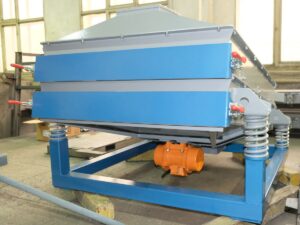

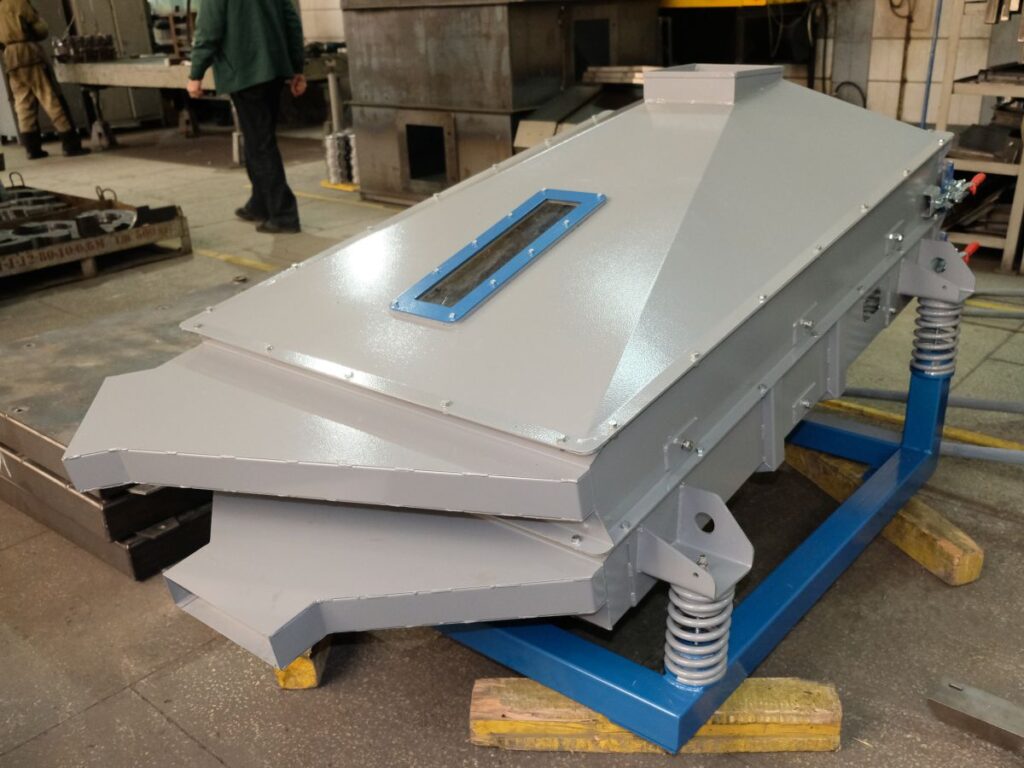

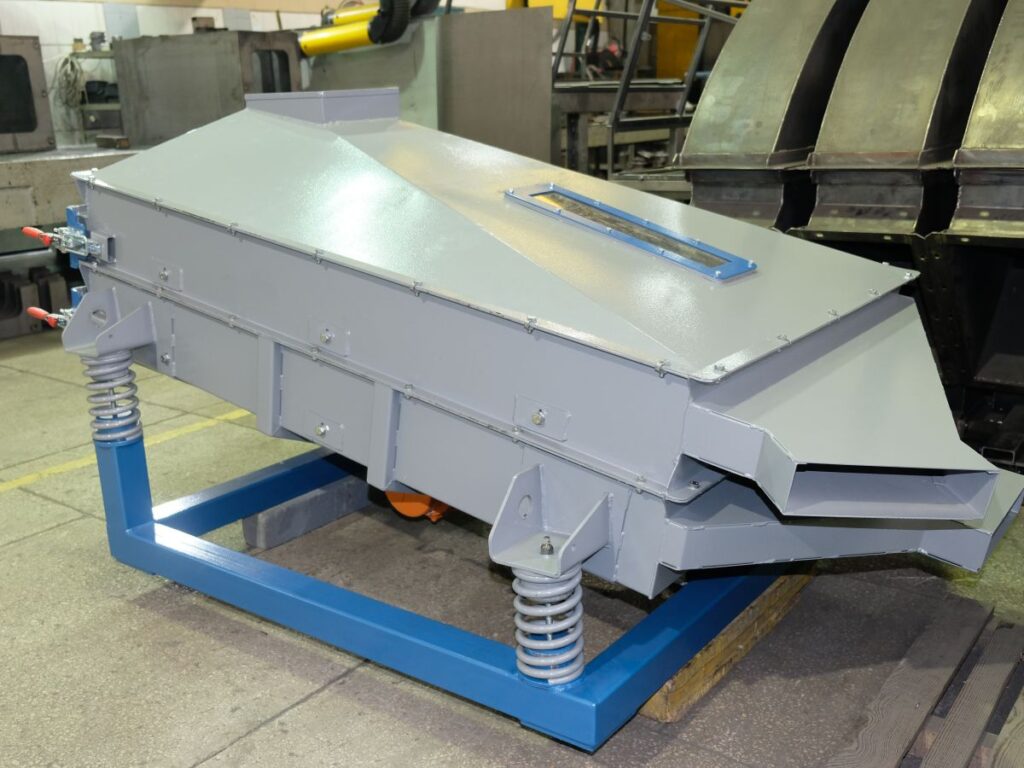

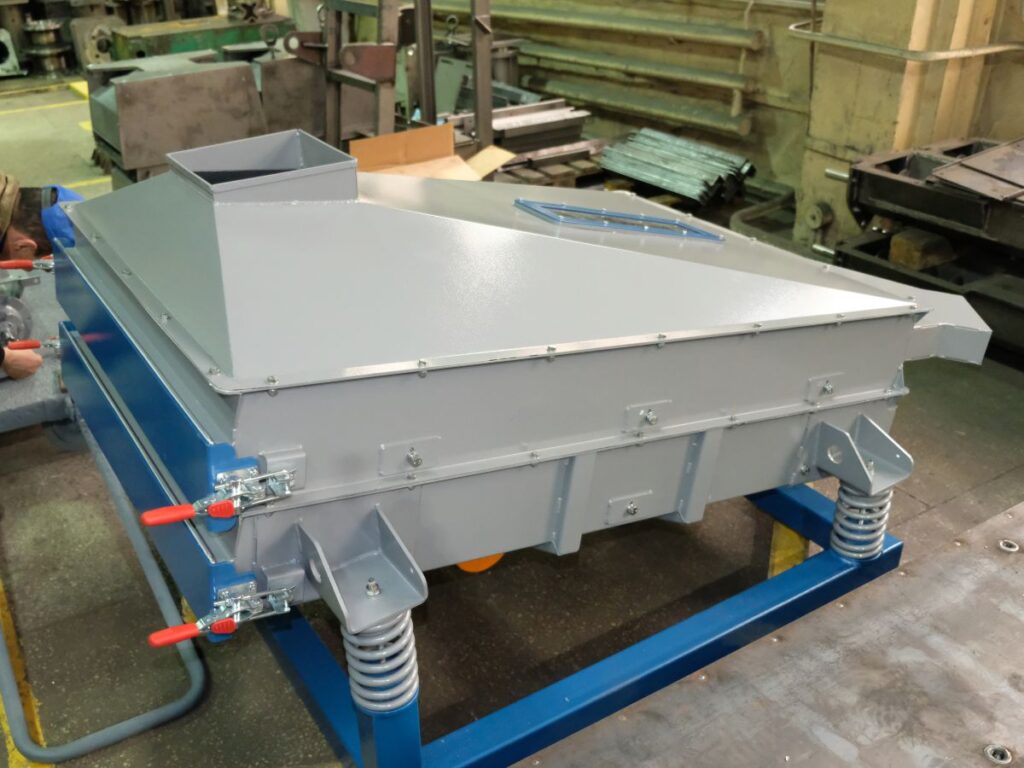

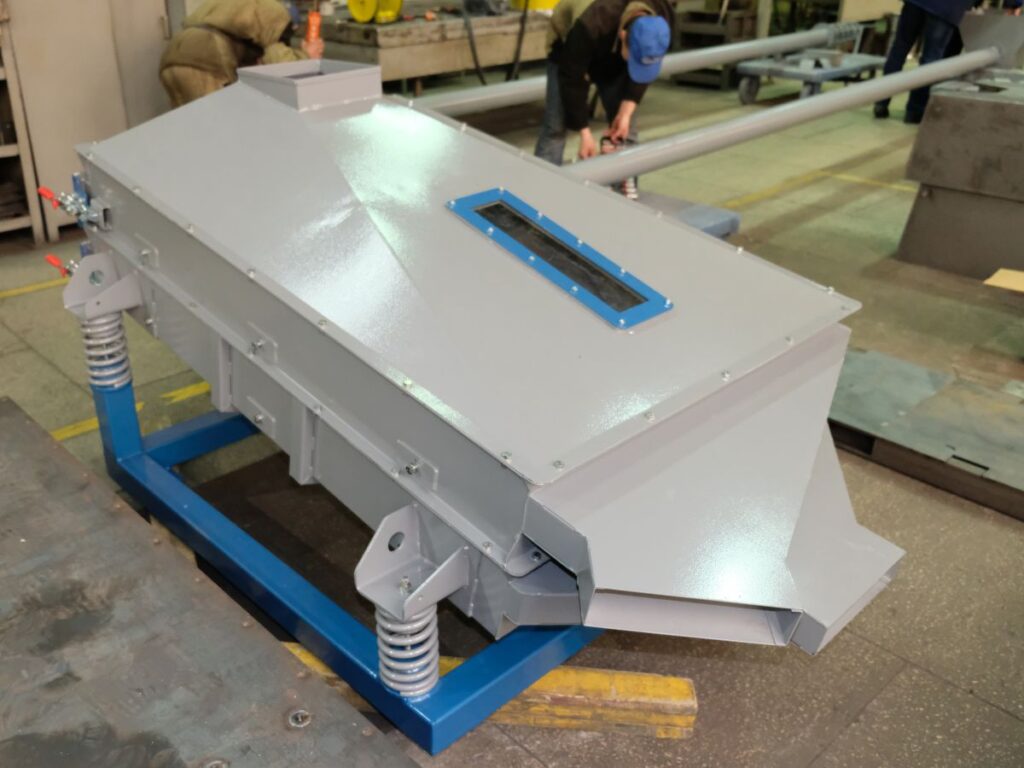

VIBRATORY SIEVE VS-2

USED FOR

  • For cleaning granules from crumbs, dust and debris

FINAL PRODUCT

feed pellet, fuel pellet

RAW MATERIALS

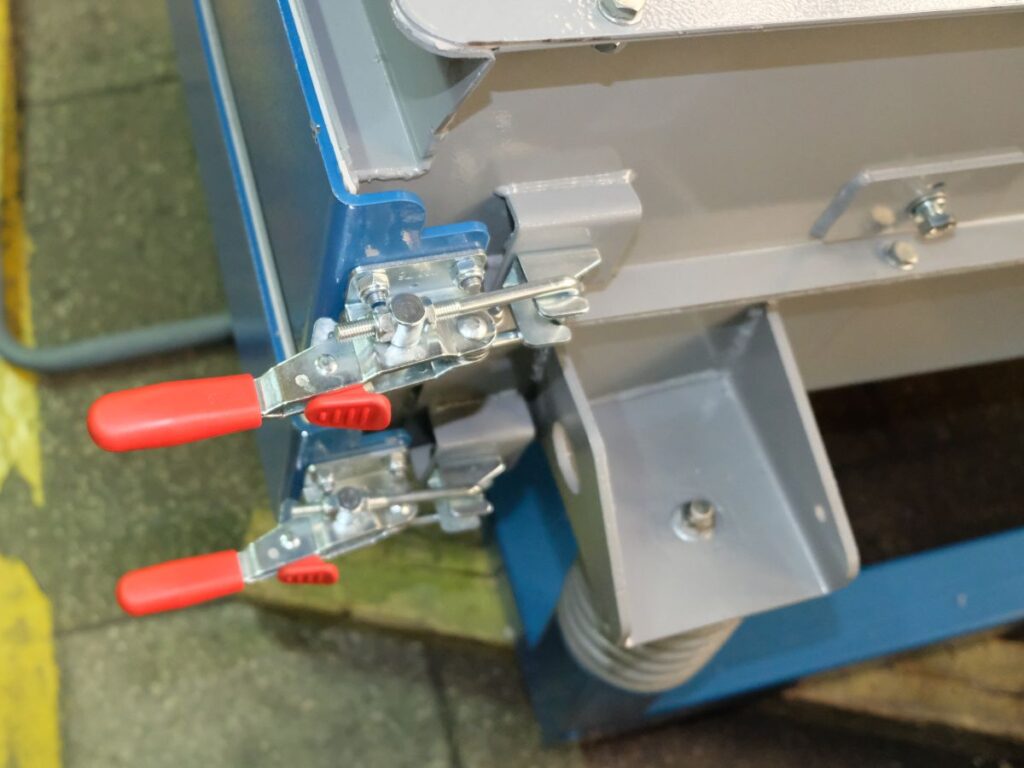

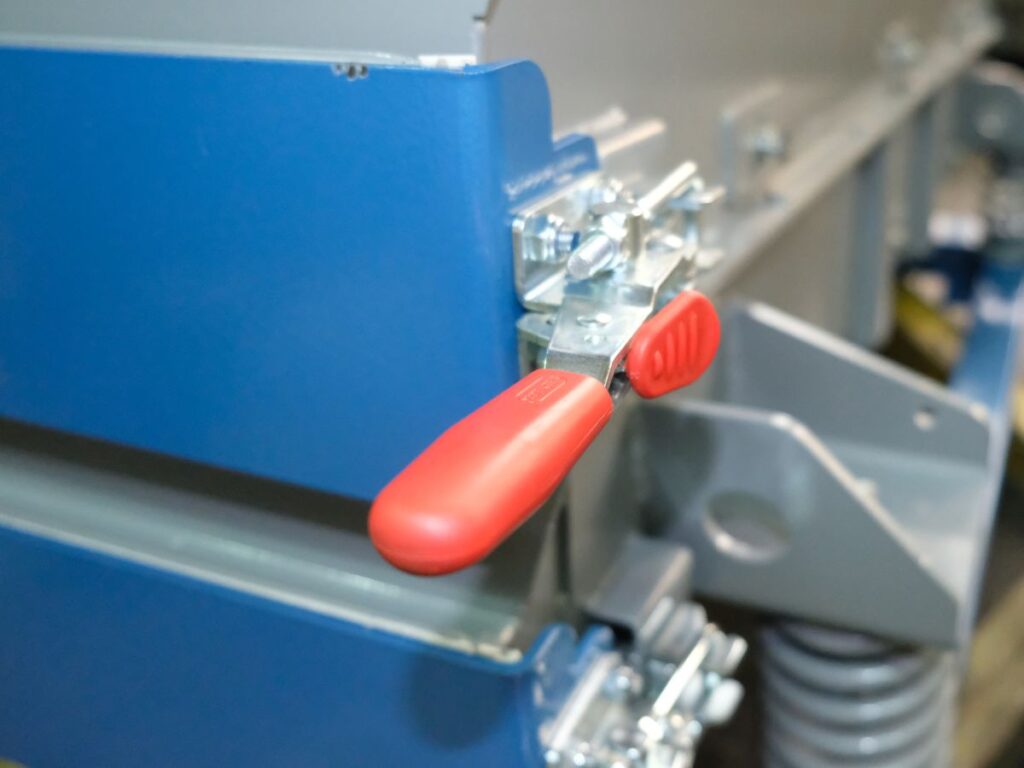

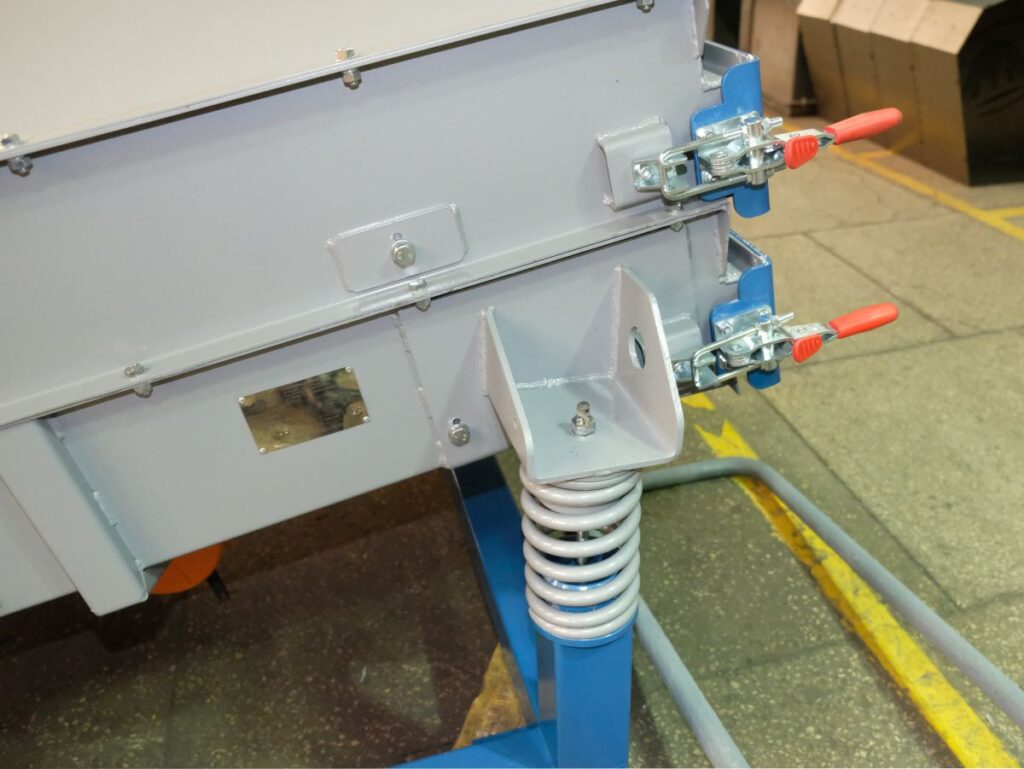

The design provides for quick replacement of screens.

TECHNICAL SPECIFICATIONS

Capacity

max 1000 kg / hour

Lenght

2070 mm

Width

1310 mm

Height

1070 mm

Weight

310 kg

POWER

0,47 kW

INPUT MATERIAL:  feed pellet, fuel pellet

The design provides for quick replacement of screens.

ADVANTAGES

  • high productivity
  • low power consumption
  • comparability

SEQUENCE OF OPERATION

How the product moves:

  • The raw material is continuously filled into the receiving pipe of the vibrating screen.

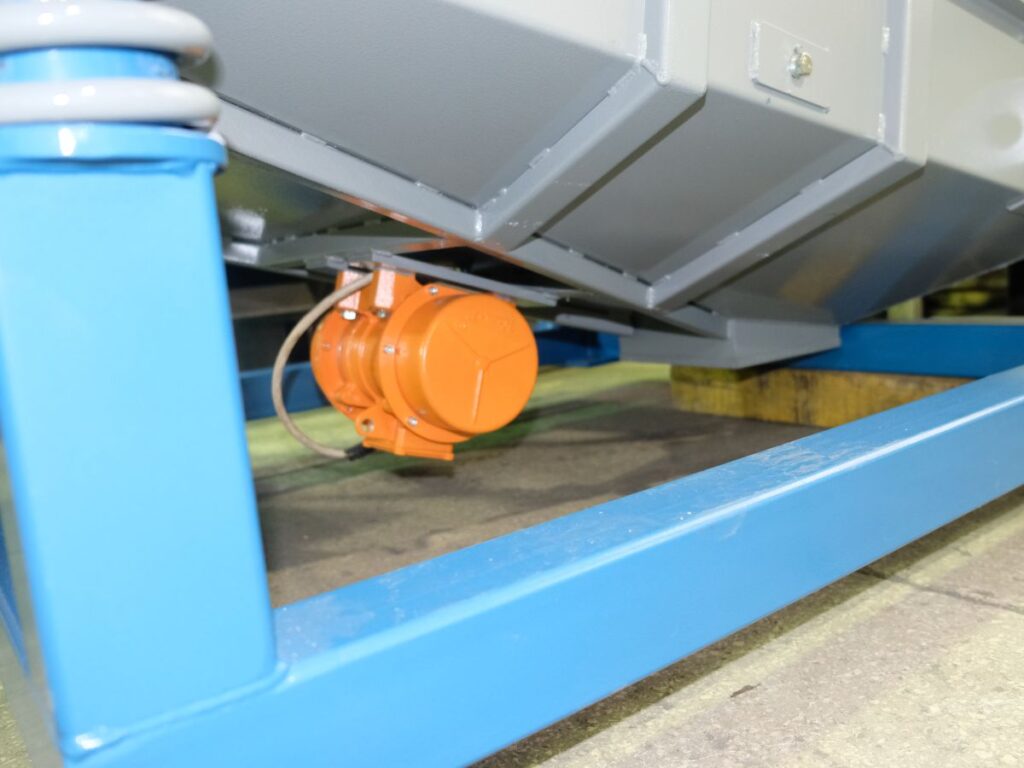

  • The product moves along a vibrating sloping top sit.

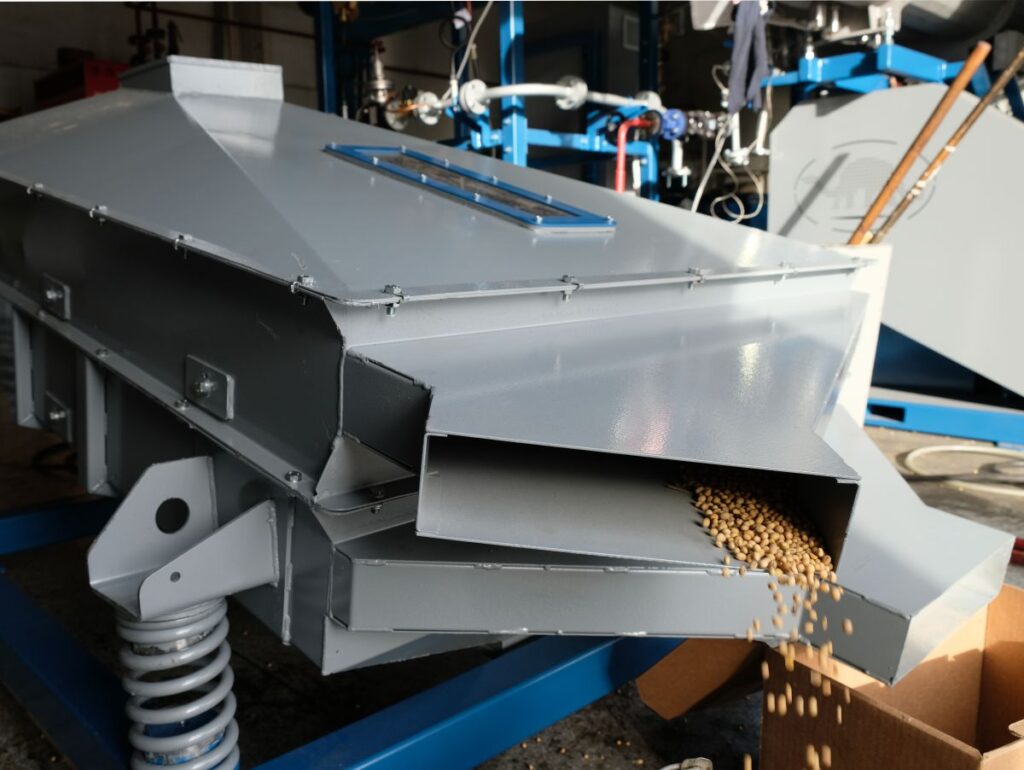

  • Separated on sieve – large, sticky granules and large debris – is discharged through the upper side pipe. Separated under sieve enters the lower sieve.
  • The descent from the lower sieve – a cleaned, sorted product – is discharged through the lower side pipe.
  • The passage from under the lower sieve – small dusty particles – is discharged through the lower pipe (under the vibrating screen).

QUALITY ASSURANCE

Warranty period – 1 year

  • certified production ISO 9001:2015
  • Our VIBRATORY SIEVE are designed for continuous and trouble-free operation
WARRANTY SUPPORT

for cleaning granules from crumbs, dust and debris
