Heating screw feeder HSF-110
FINAL PRODUCT
RAW MATERIALS
TECHNICAL SPECIFICATIONS
Volumetric capacity, up to m3/h
0.7 (rapeseed)
Volumetric capacity, up to m3/h
0.8 (black soldier fly larvae)
Volumetric capacity, up to m3/h
1.0 (sunflower)
Tilt angle, degrees
25
Screw diameter, mm
110
Screw speed, up to min-1
77
Initial raw material temperature, from °C
0
Final raw material temperature, up to °C
60
Heating time, up to sec.
104
Average steam temperature (3 bar), up to °C
133
Steam supply/condensate discharge
Flange DN15 PN10 DIN 2576
Loading nozzle, mm
400х450
Discharge pipe, mm
Ø 150
Steam consumption for heating raw materials, up to kg/h
17
Installed capacity, kW
1,5
Weight, not more than kg
390

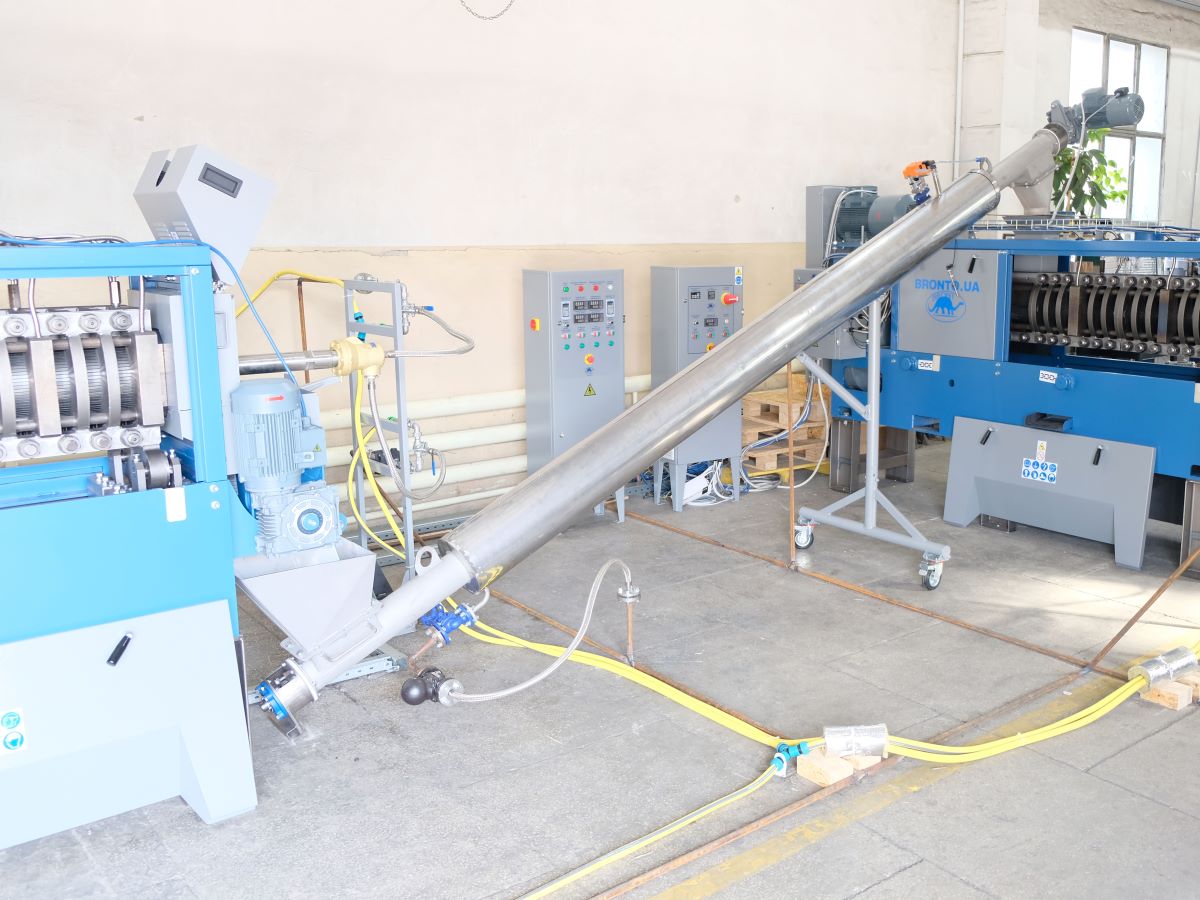

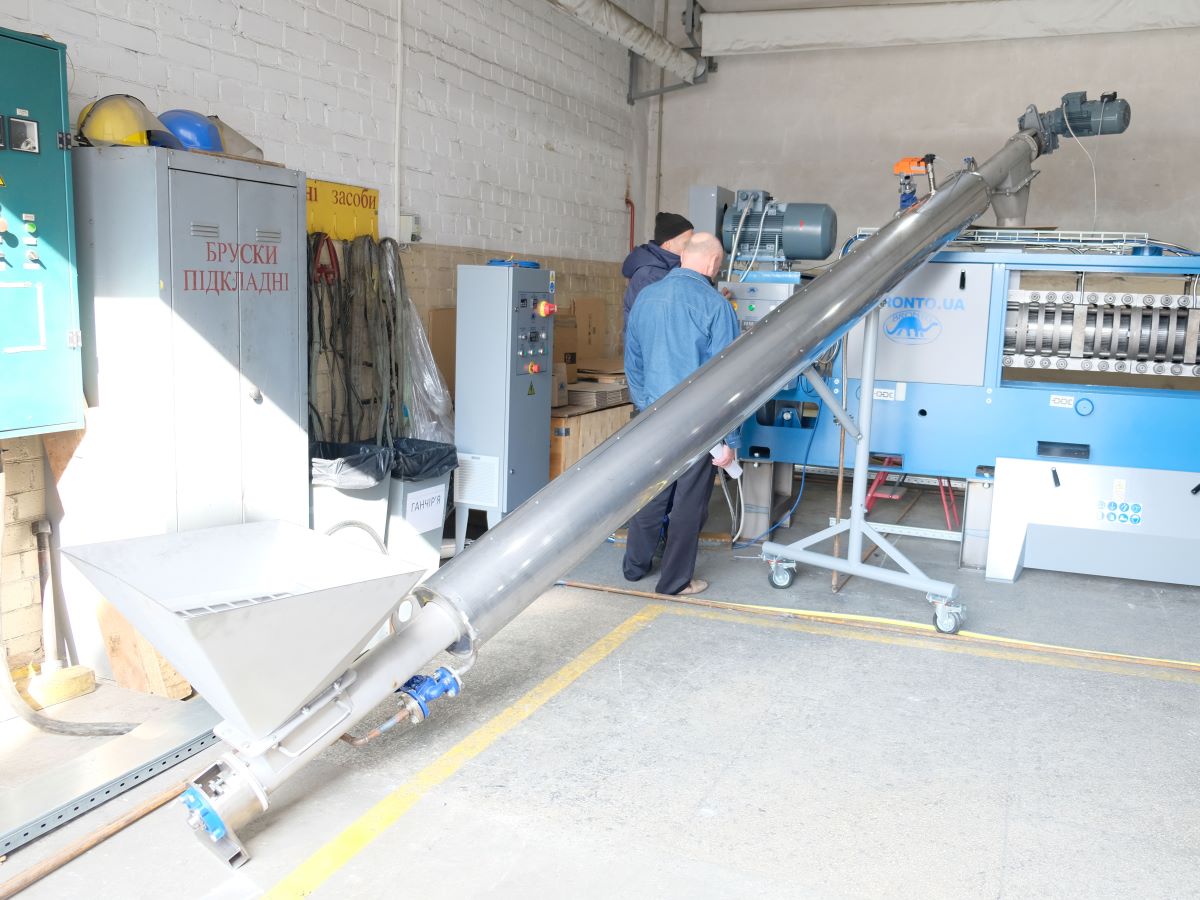

Screw feeder (heating) HSF-110: An effective solution for transporting and heating bulk products
Looking for reliable equipment for transporting and heating bulk products? Our HSF-110 screw feeder is the ideal solution, designed specifically for crops such as black olives, sunflowers and rapeseed.
Versatility and adaptability
The HSF-110 feeder provides efficient and gentle material movement while simultaneously heating it. Due to its design, it can be adapted to transport other bulk products upon prior agreement with the manufacturer. This makes it a versatile tool for various production needs.
Operating conditions
To ensure long-term and uninterrupted operation of the HSF-110 feeder, certain operating conditions must be observed:
- Temperature range: The equipment is designed to operate indoors at temperatures from +5°C to +40°C.
- Humidity: Maximum relative air humidity should not exceed 80% at a temperature of +25°C.
- Ventilation: The room where the feeder is installed must be equipped with supply and exhaust ventilation to ensure an optimal microclimate.
- Air quality: The content of vapors and dust in the air of the working area of the room must not exceed the permissible values established by GOST 12.1.005.
By choosing the HSF-110 feeder, you get high-quality equipment that will help optimize your production processes and ensure reliable work with bulk materials.
Would you like to learn more about the HSF-110 feeder or discuss its use for your needs? Contact us!
Operating principle and design features

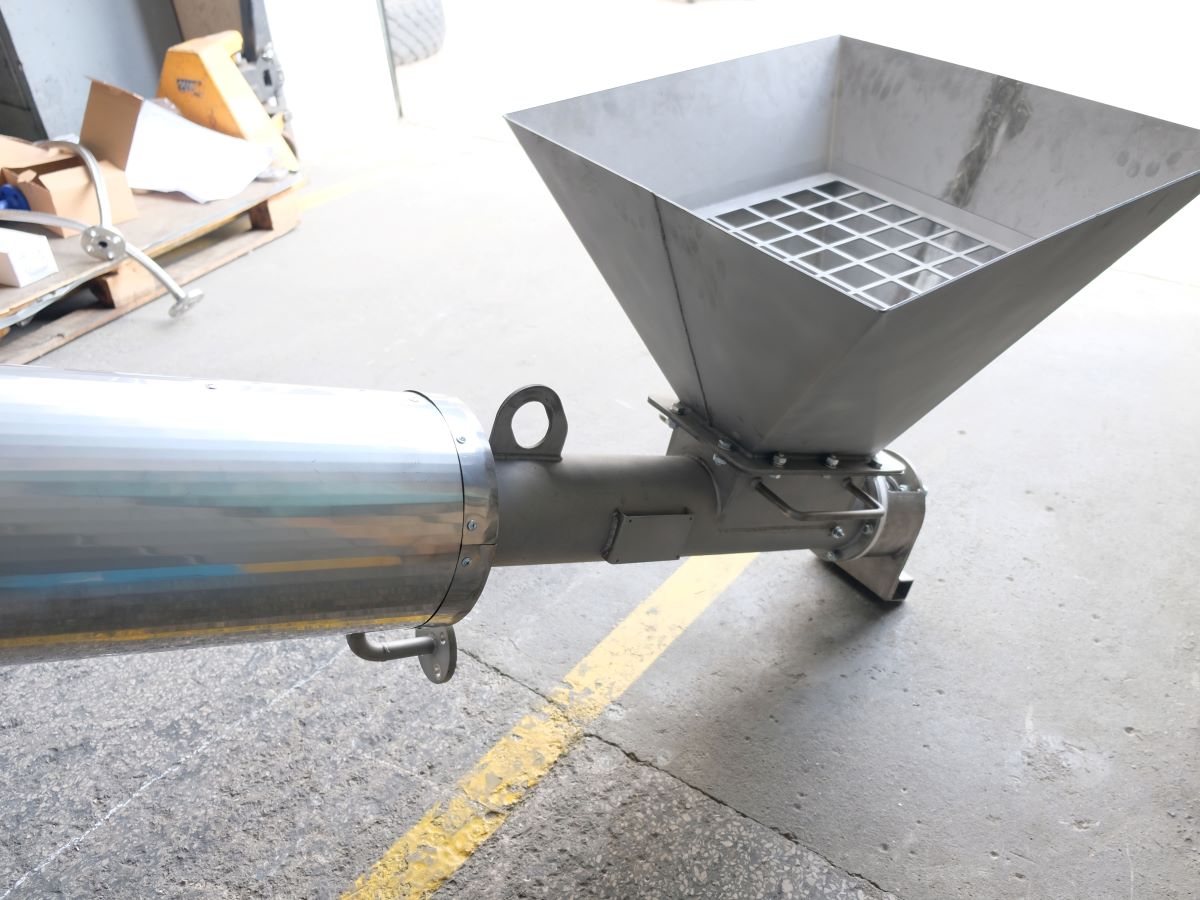

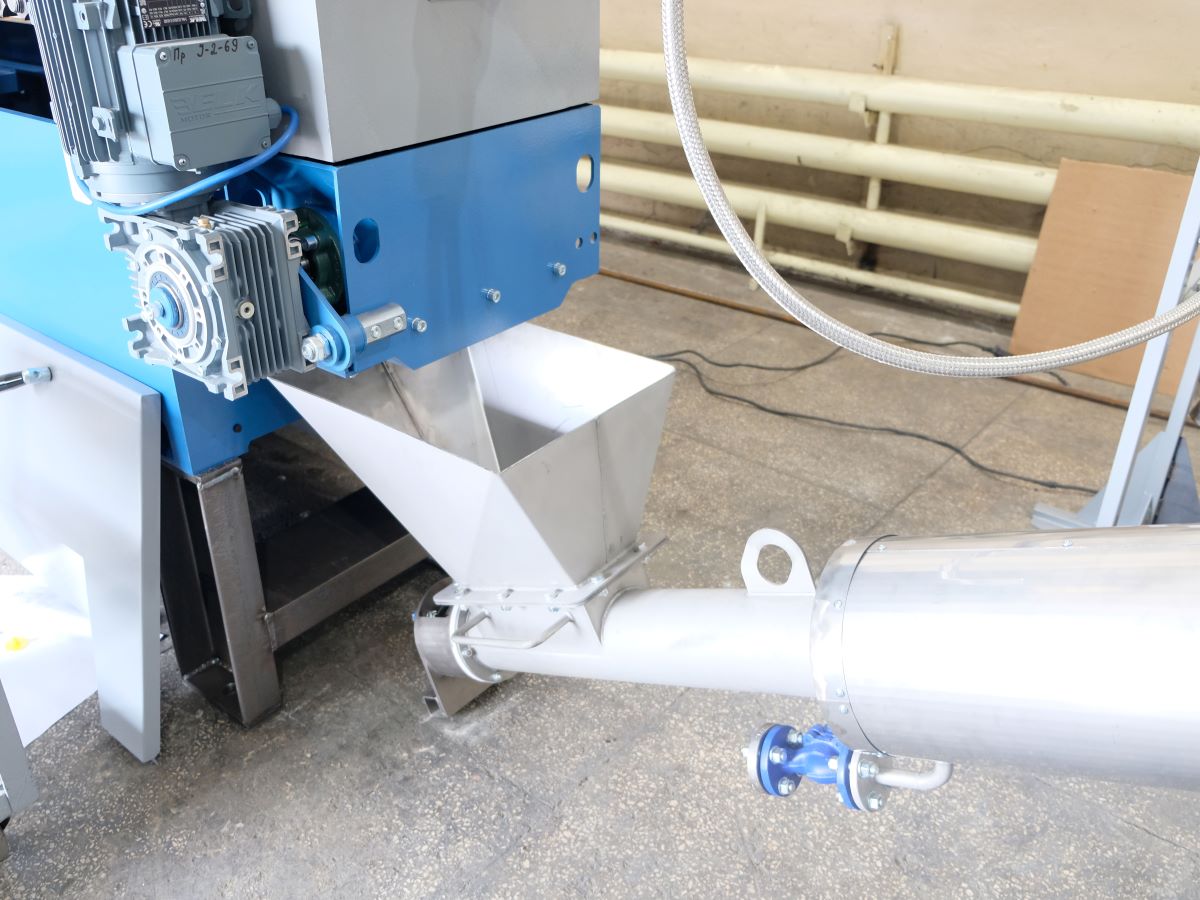

The raw material enters the feeder through the loading nozzle. Using the auger screw, it moves smoothly along the axis of the feeder and exits through the discharge nozzle to the next unit.

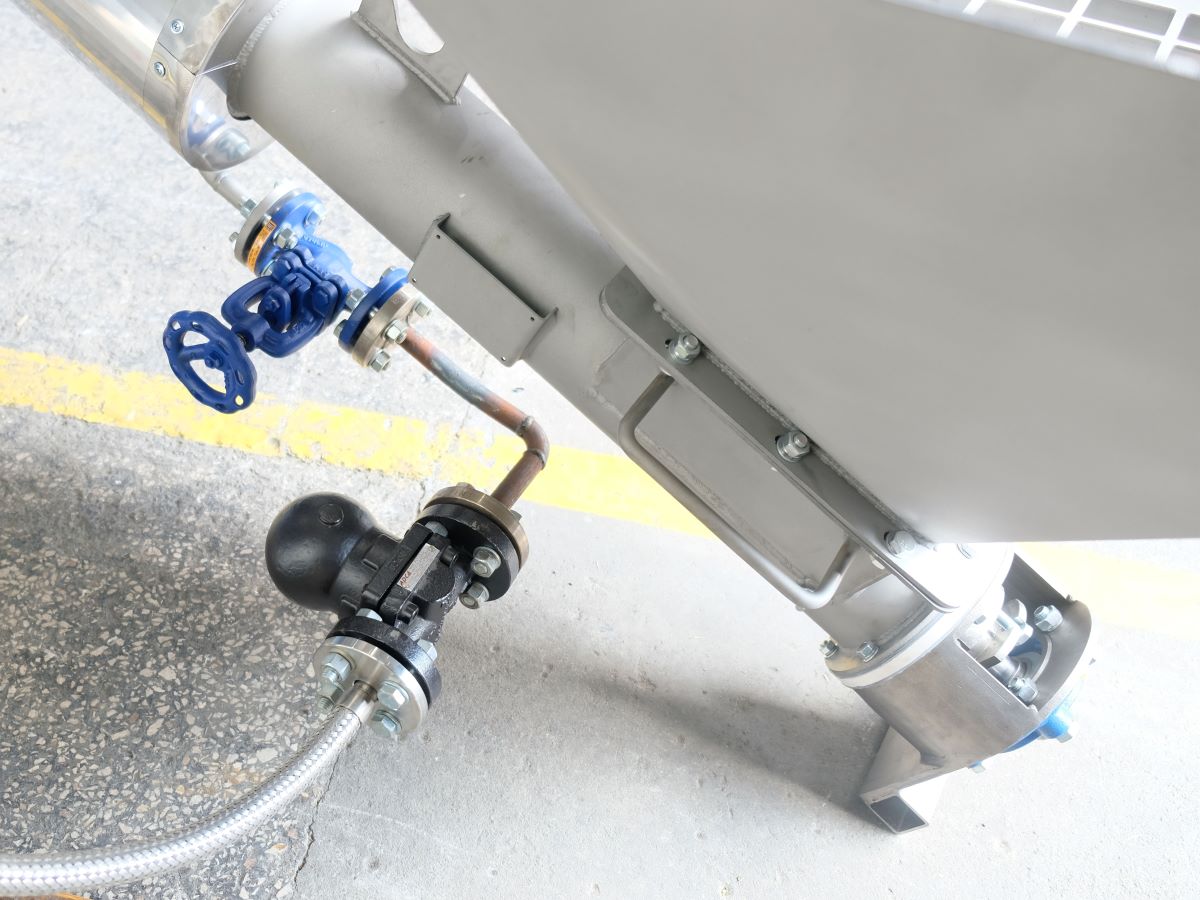

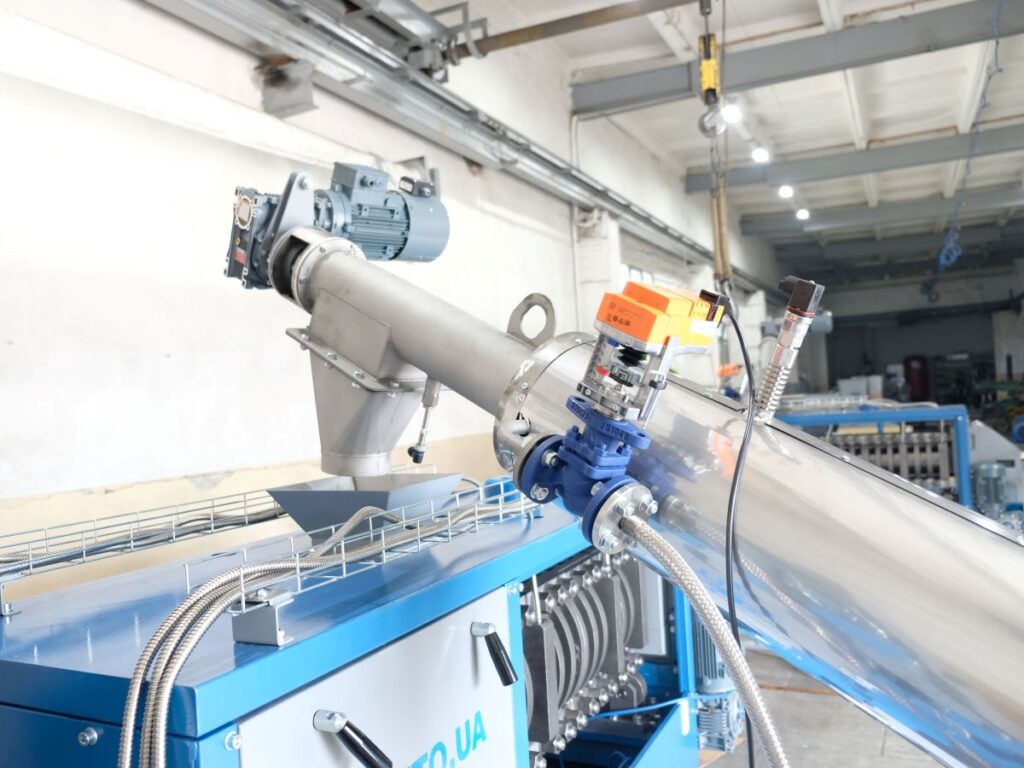

A key feature of the HSF-110 feeder is its steam jacket. Thanks to the steam supply, heat is efficiently transferred to the raw material through the walls of the housing, ensuring its heating during transportation. This allows the required product temperature to be reached without additional processing steps.
