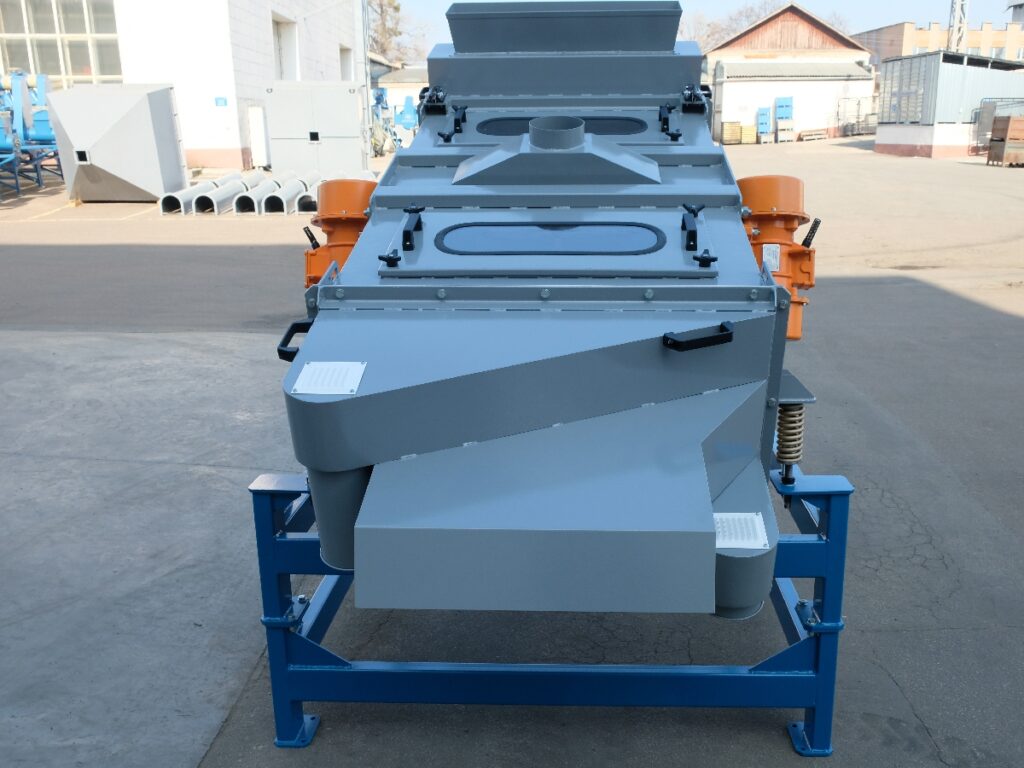

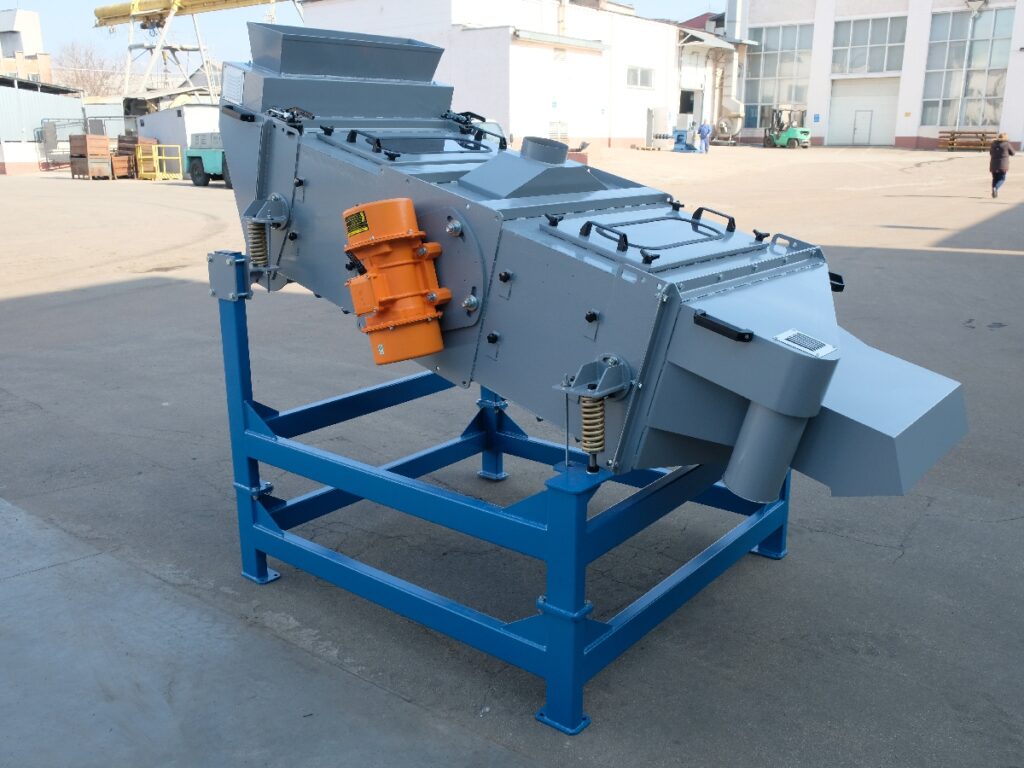

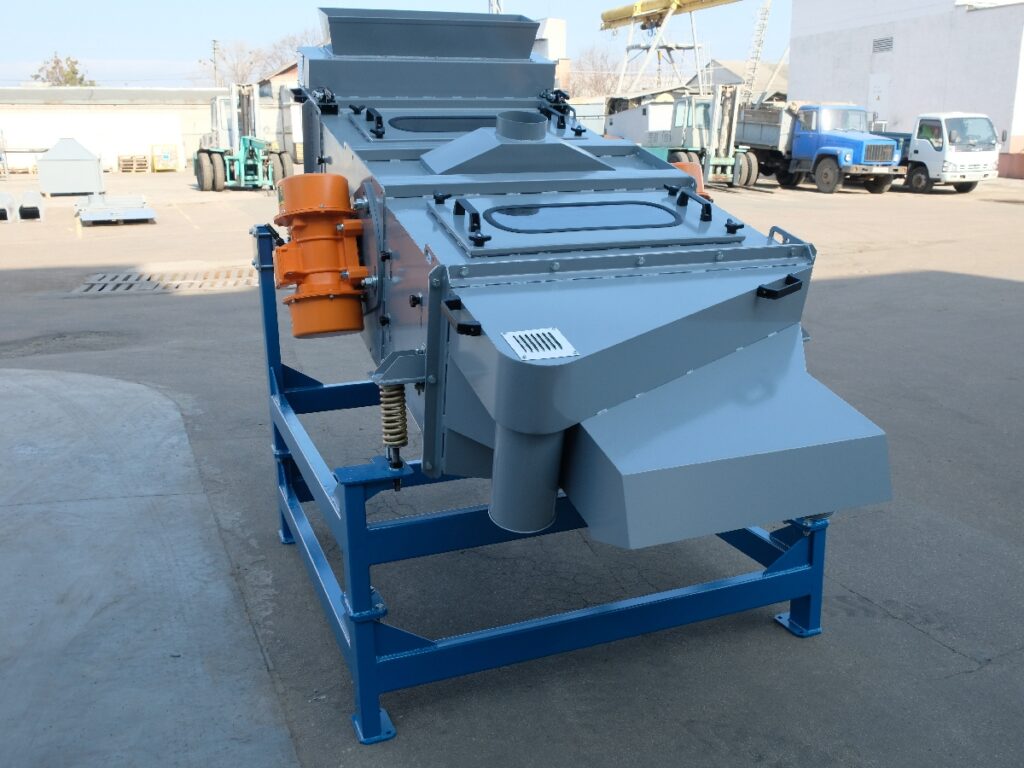

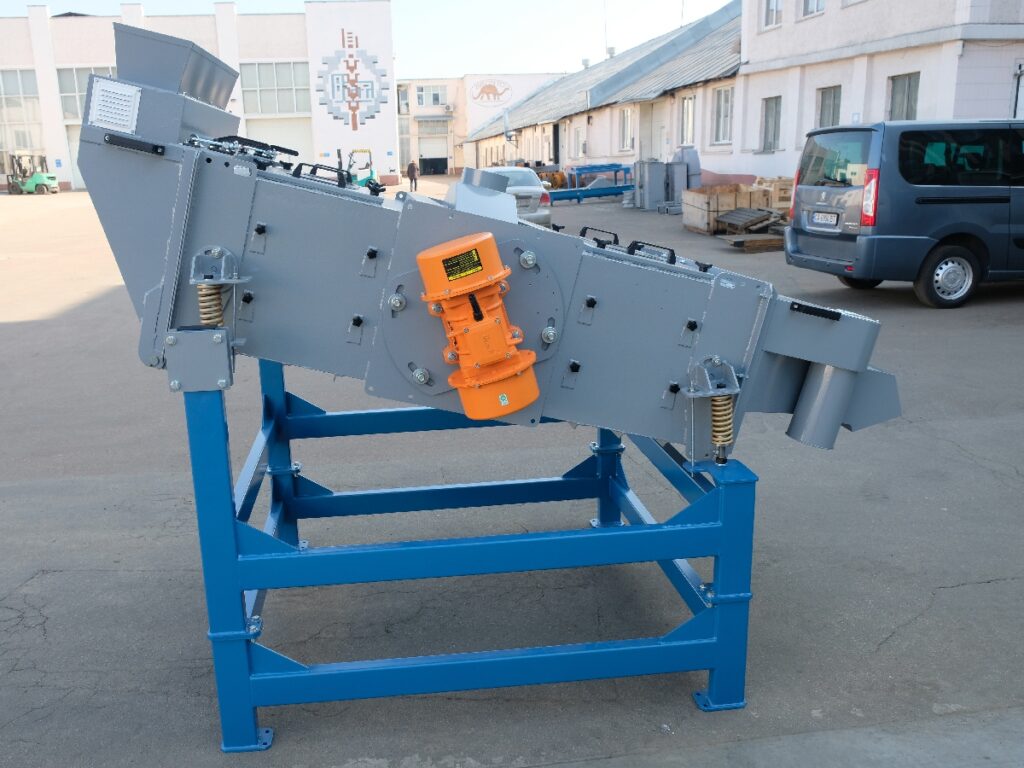

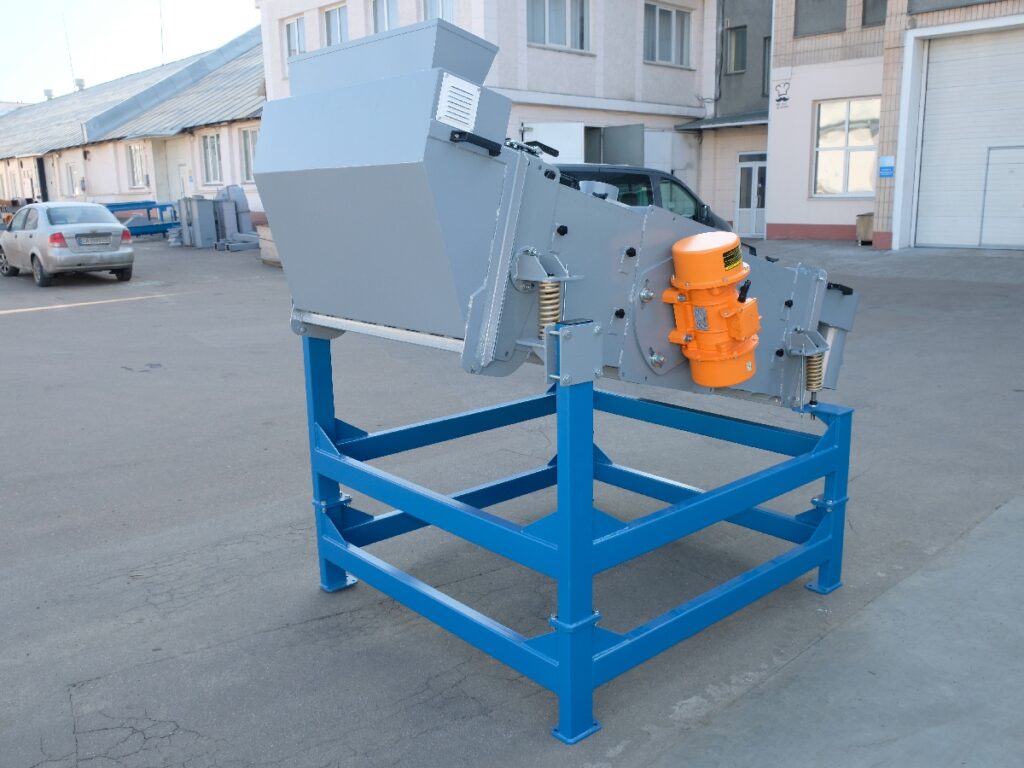

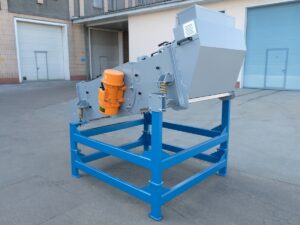

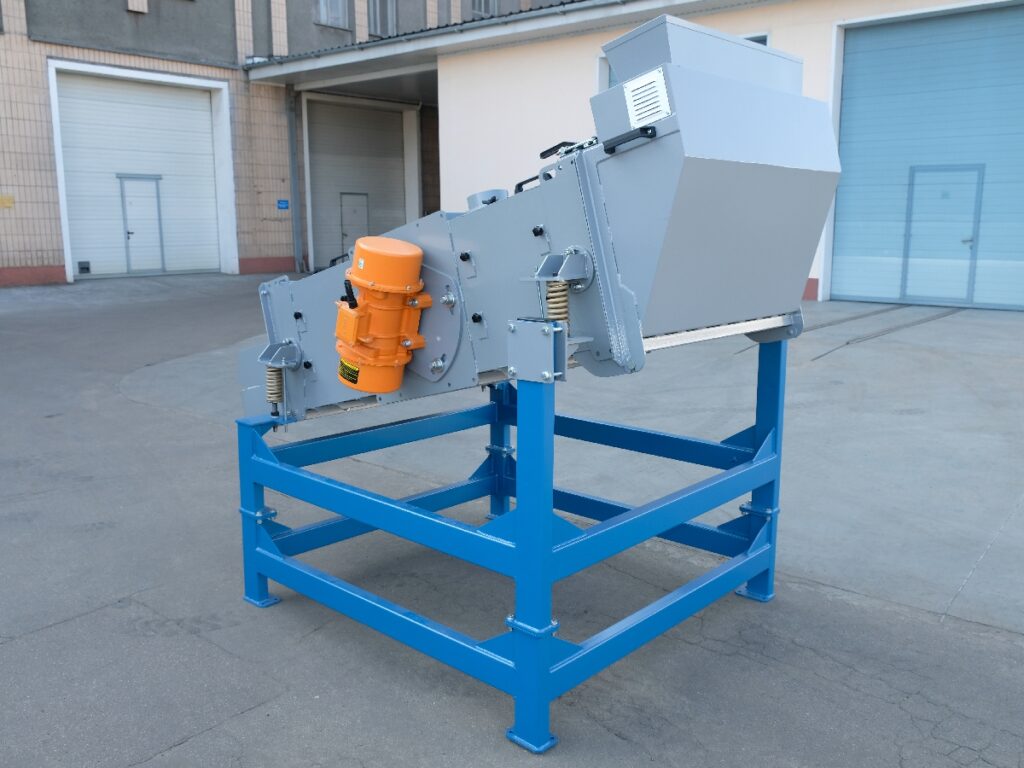

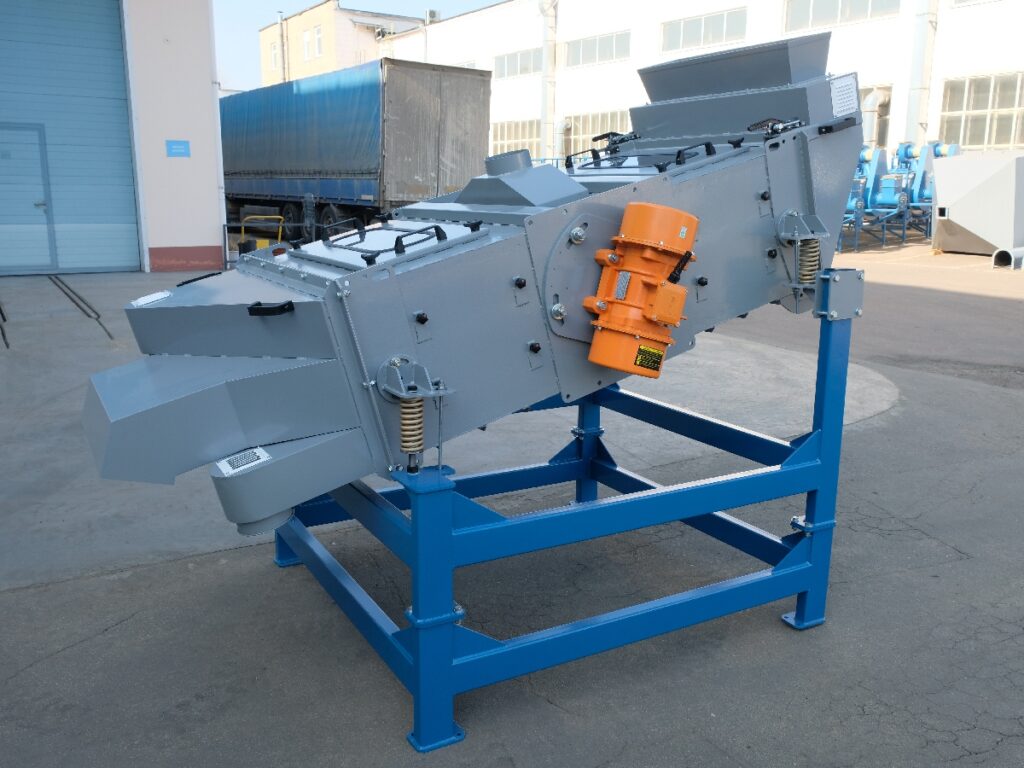

VIBRATORY SIEVE VS-1000

USED FOR

  • The vibrating sieve is intended for separation of a product of the set size from inclusions of the bigger and smaller sizes

FINAL PRODUCT

feed pellet, fuel pellet

RAW MATERIALS

feed pellet, fuel pellet

TECHNICAL SPECIFICATIONS

Productivity

max 50 t / h

Frequency of rotation of vibromotors

1000 rpm

Screen surface dimensions

1700 х 1000 mm

The angle of inclination of the sieve

max 15 grad

Length

2600 mm

Width

1560 mm

Height

1750 mm

Mass

250 kg

POWER

1.5 kW

Can be used as part of feed production lines.

ADVANTAGES

  • high productivity
  • low power consumption
  • comparability

SEQUENCE OF OPERATION





  1. Housing
  2. Entrance box
  3. Nut
  4. Inspection hatch
  5. Support
  6. Spring
  7. Inlet outlets
  8. Frame
  9. Vibromotor
  10. Sieve
  11. Dust extraction pipe
  12. Clamp
  13. Hatch locking handle
  14. Sieve locking handle
  15. The support is movable
  16. Product outlet



There are two tiers of sieves in the case. Sieves are fixed by handles.

The angle of the sieve can be changed by means of a movable support.

The operation of the vibrating screen is controlled from the control cabinet.

Power the electrical cabinet with a wire with copper cores with a cross section of at least 1.5 mm2.



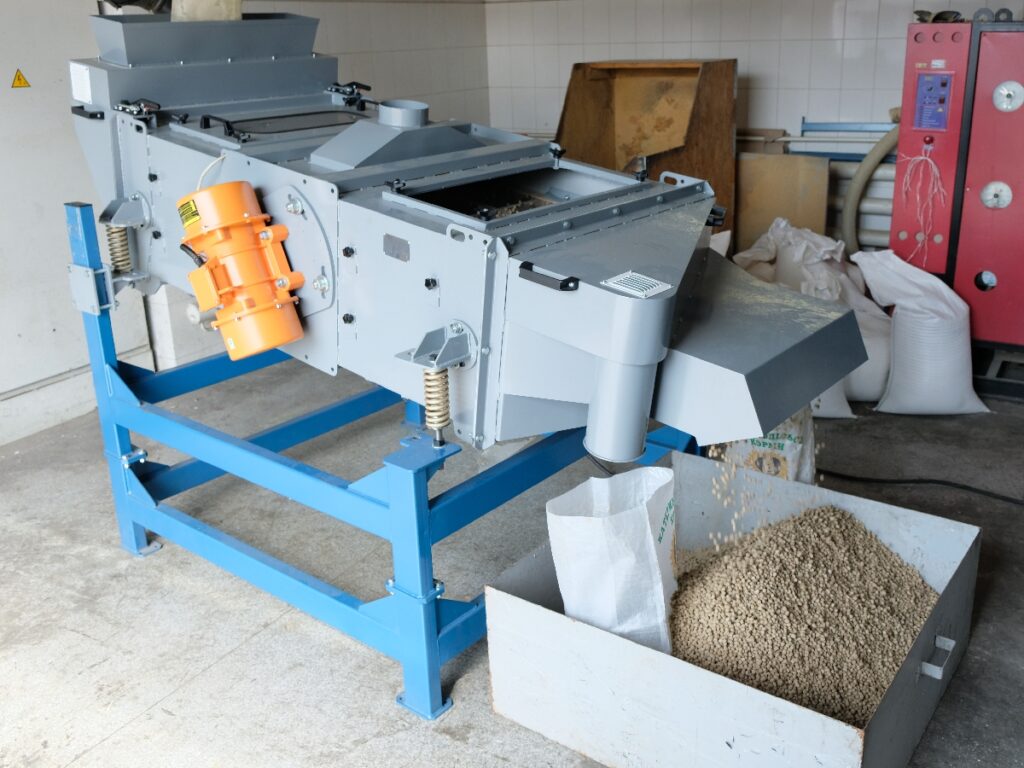

Vibration motors create reciprocating motion of the housing. The product, through the inlet pipe, falls on the upper sieves and also begins to move. The product of a given size passes through the upper sieve and, moving along the lower sieve, does not pass through the holes of this sieve and exits through the tray.

Inclusions smaller than the specified size pass through the holes of the lower sieve and are discharged through the pipe. The inclusions are larger than the specified size, move along the upper sieve and go into the appropriate pipe. The angle of the vibratory motors can be changed. The marks on the case allow to expose vibromotors in the set position.

To adjust the performance, the angle of the housing can be changed.

QUALITY ASSURANCE

Warranty period – 1 year

  • certified production ISO 9001:2015
  • Our VIBRATORY SIEVE are designed for continuous and trouble-free operation
WARRANTY SUPPORT

As a result, to adjust the performance, the angle of the housing can be changed.
