Oil press with thermocontrol OP-500H

Oil Press with Automatic Temperature Control OP-500H

A New Level of Control and Quality in Oil Production

The OP-500H oil press is an advanced modification of the time-tested OP-500 press, designed to provide maximum control over the key parameter of the pressing process — temperature. Thanks to innovative technical solutions, this press allows for precise adherence to technological requirements and the production of the highest quality products.

Key Features of the OP-500H Model:

Unlike the standard OP-500 model, the OP-500H version is equipped with specialized systems for precise temperature management:

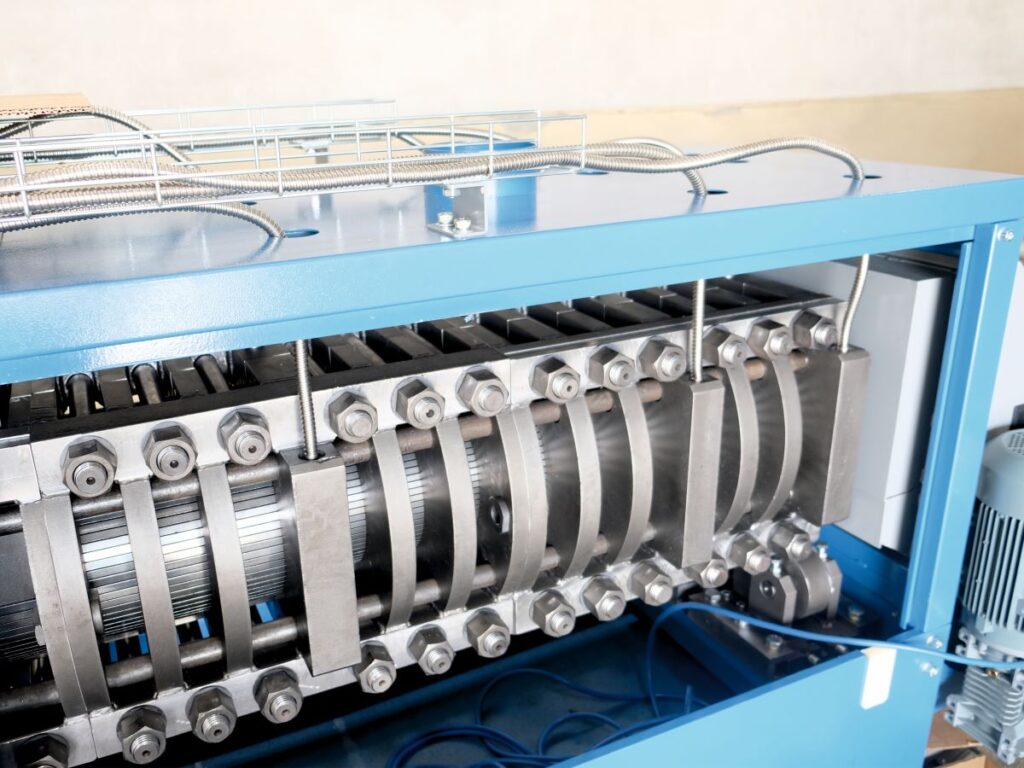

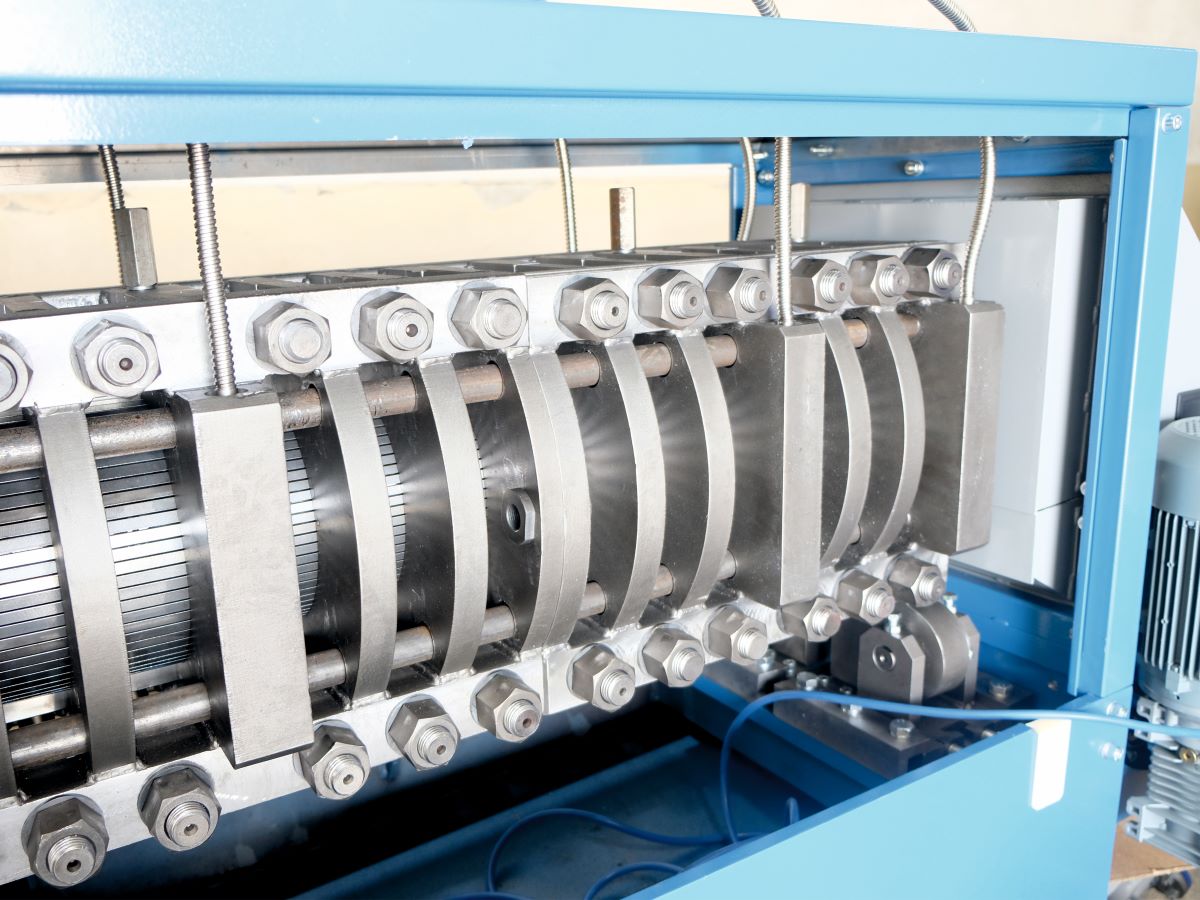

• Electric Heating Elements: Integrated directly into the press cage for quick and uniform heating of the raw material.

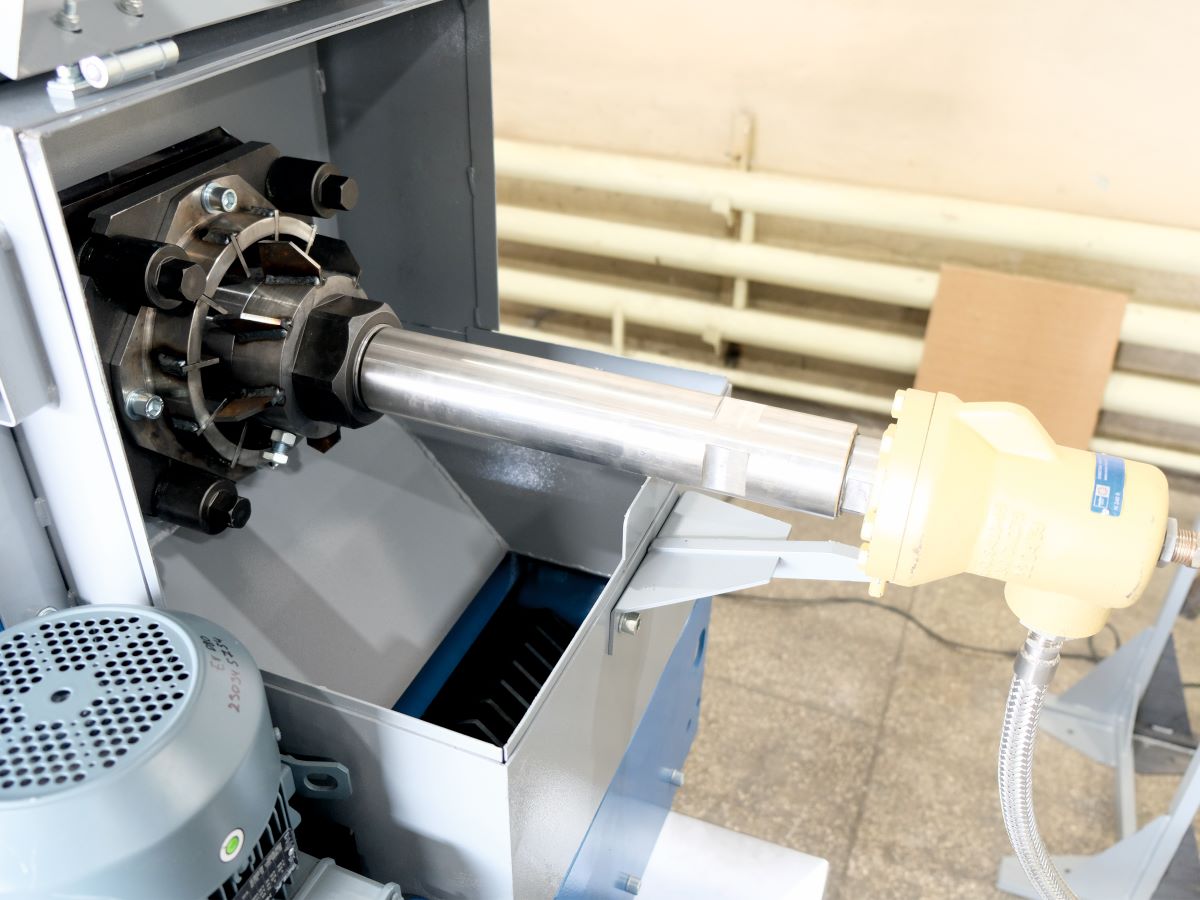

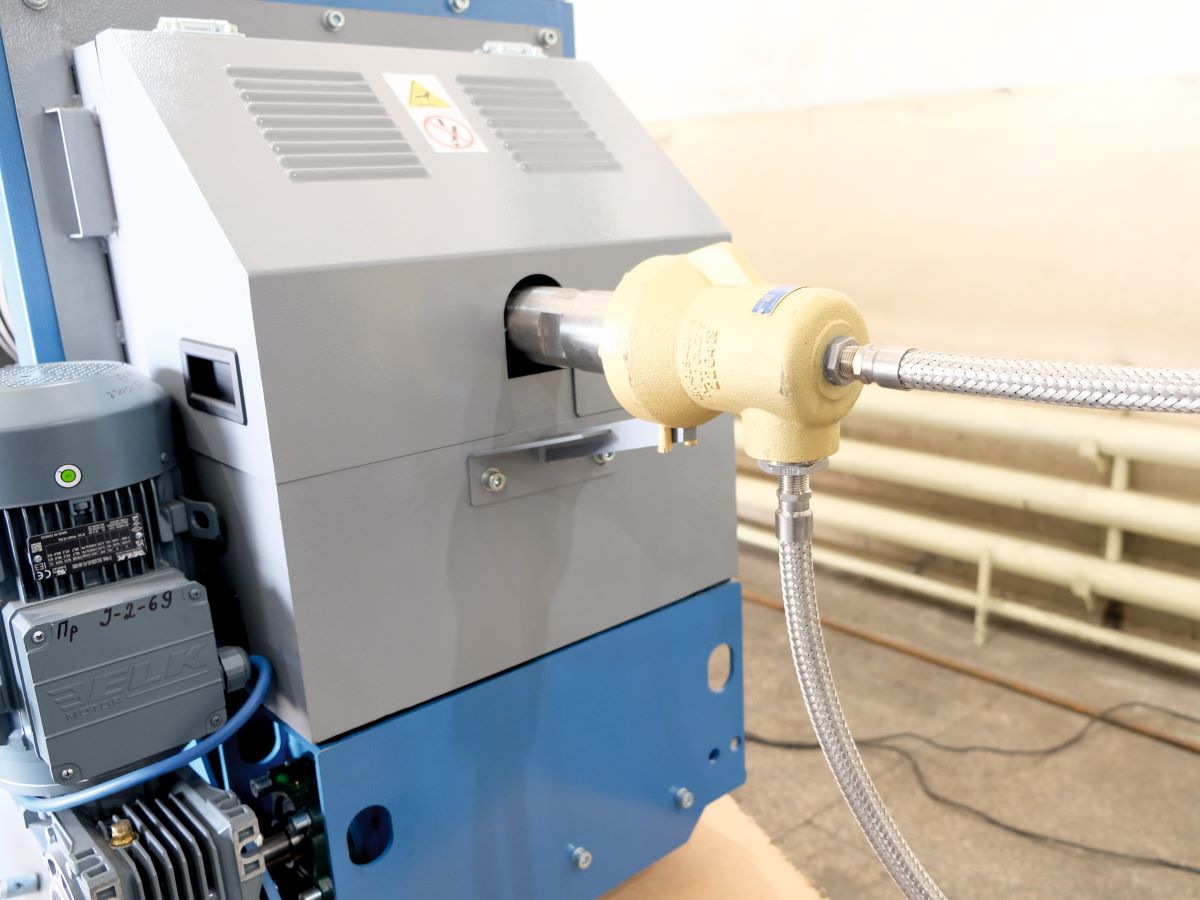

• Water and Steam Supply System to the Press Shaft: A unique feature that allows for both heating the shaft with steam and cooling it with running cold water.
• Advanced Control Cabinet: The intelligent center of the press, which automatically maintains the set temperature in the press cage with high accuracy.

In all other respects, the OP-500H press retains the reliability and productivity of its predecessor, the OP-500.

Your Technological Advantages with OP-500H:

We developed the OP-500H with automatic temperature control to give you complete control over the production process:

Increase Temperature for Maximum Oil Yield: Ensure optimal heating of the oil raw material to 60 °C by combining heating elements on the press cage and supplying hot steam to the working shaft of the press. This increases the fluidity of the oil and the efficiency of its extraction.

Decrease Temperature for “Cold Pressing”: Have the ability, according to technological needs, to quickly reduce the temperature in the press cage below 60 °C. This is achieved by supplying cold water to the working shaft, which is ideal for producing cold-pressed oil while preserving all its beneficial properties.

Guarantee of Stable Quality

Automatic temperature control is not just an additional feature, but a guarantee of the stability of your production. It ensures:

• Strict adherence to technological requirements: Eliminates the human factor and guarantees that each batch of product will be produced at ideal temperature parameters.
• Preservation of the condition of the oil and oilcake: A precise temperature regime allows for the preservation of nutrients, taste qualities, and the marketable appearance of both the final oil and the oilcake.

Choose the OR-500H for flexible, controlled, and efficient vegetable oil production!
