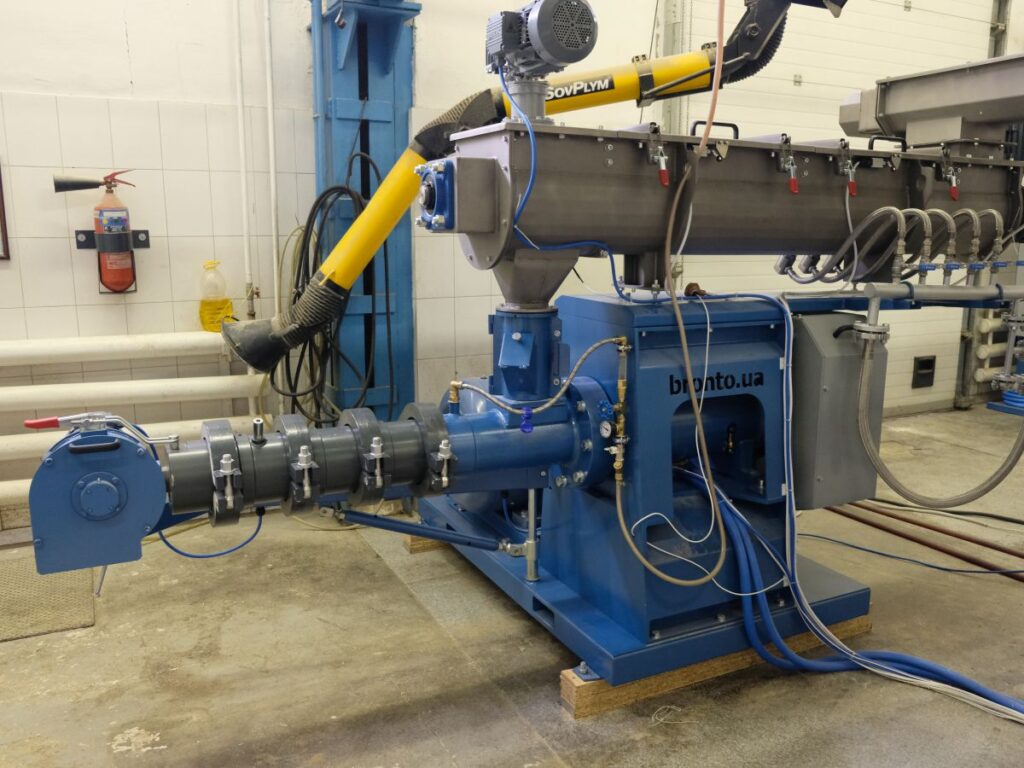

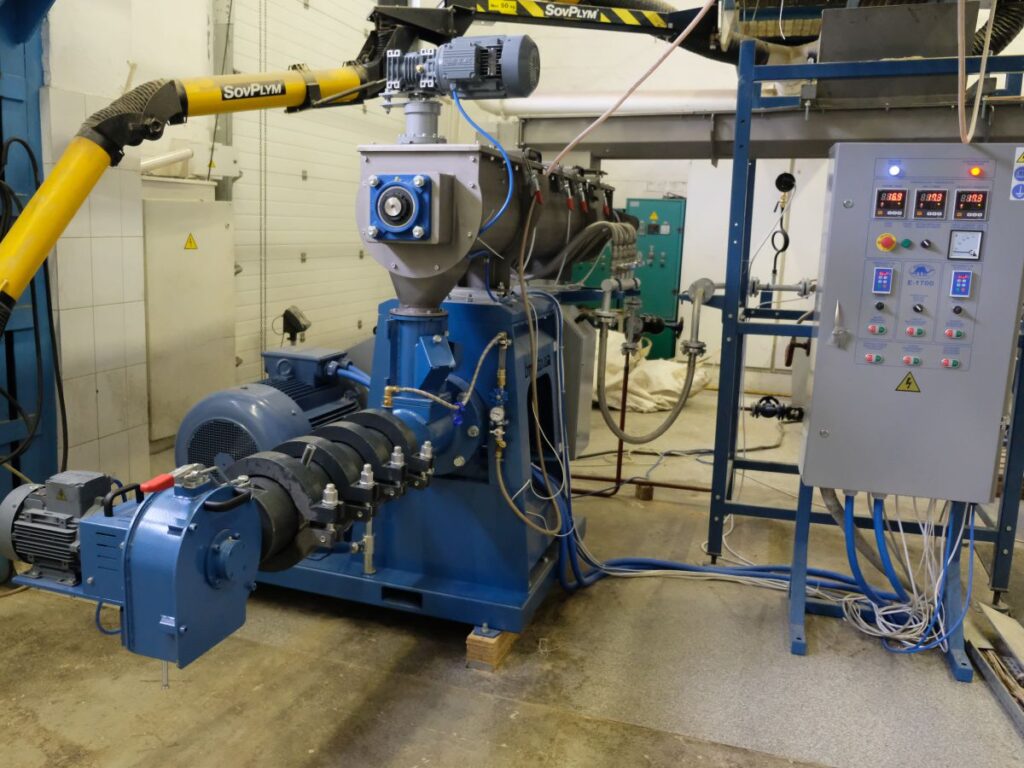

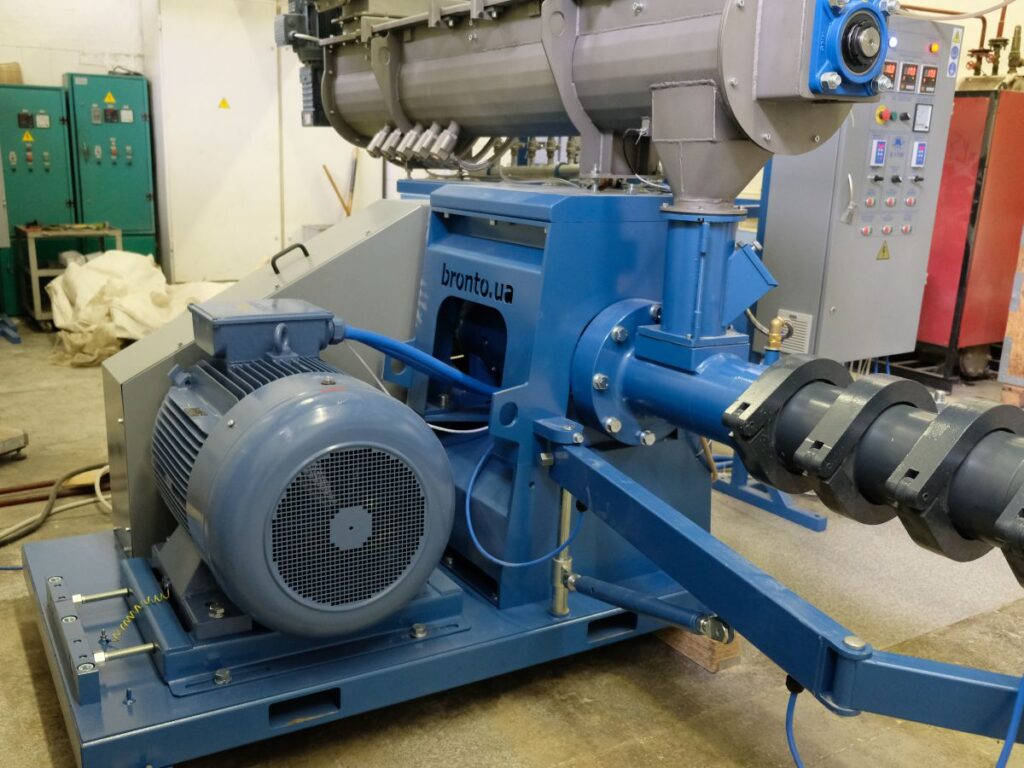

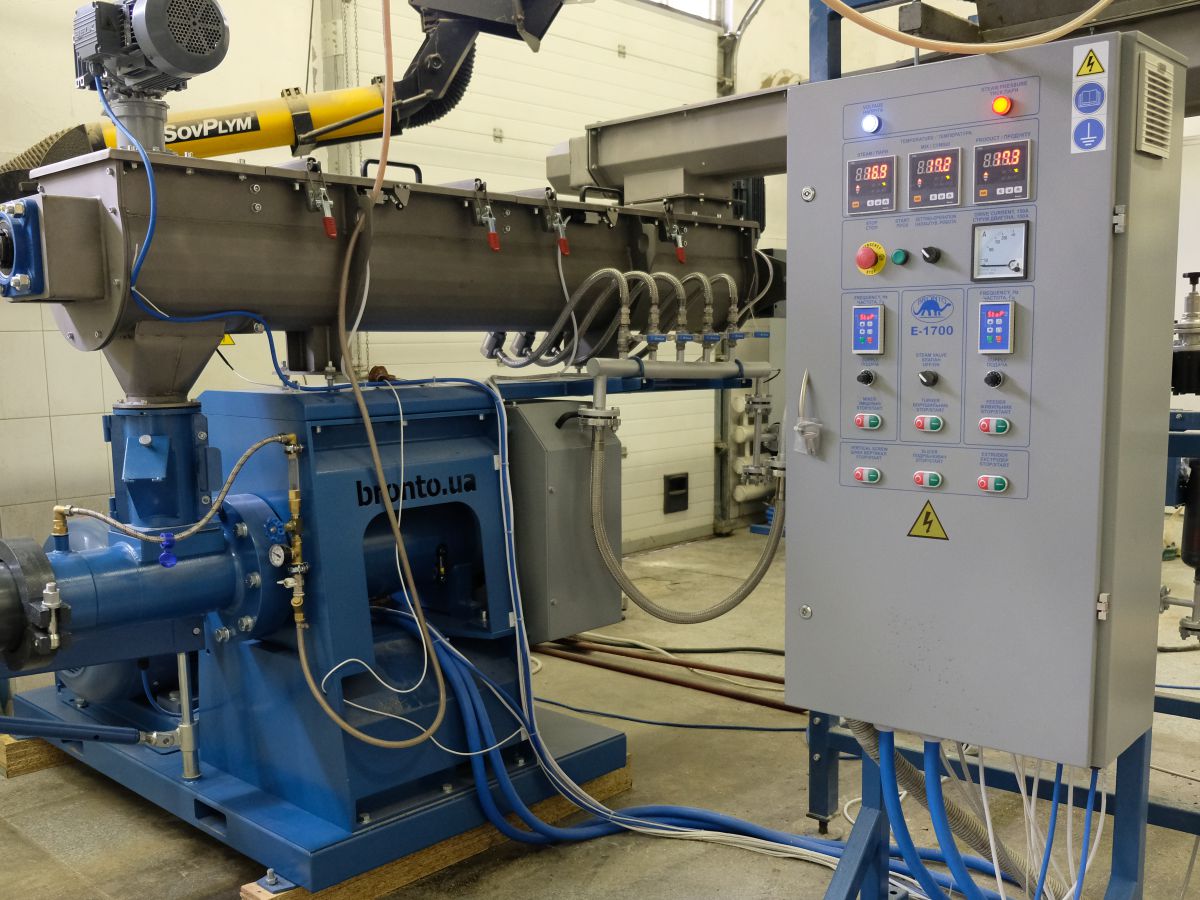

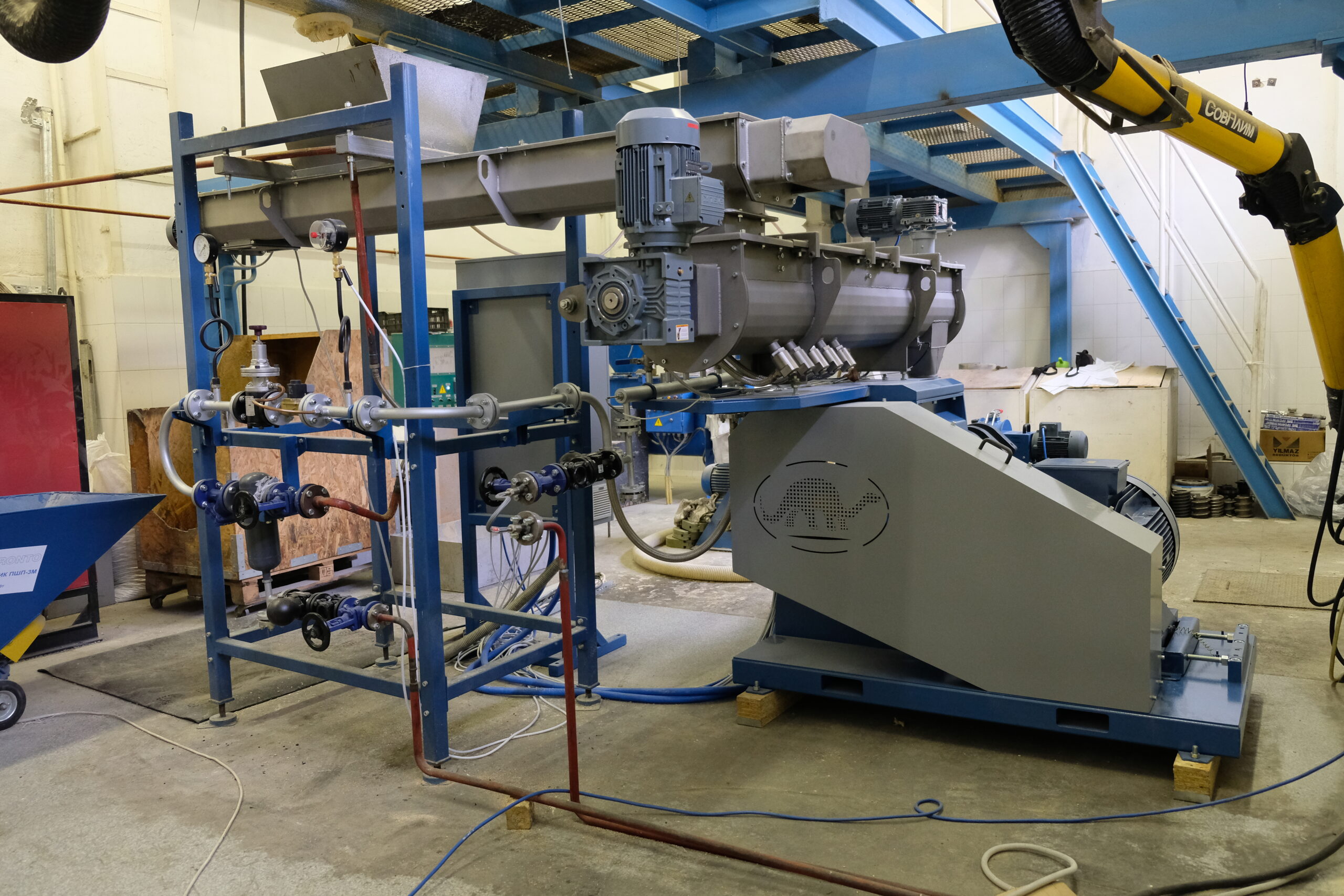

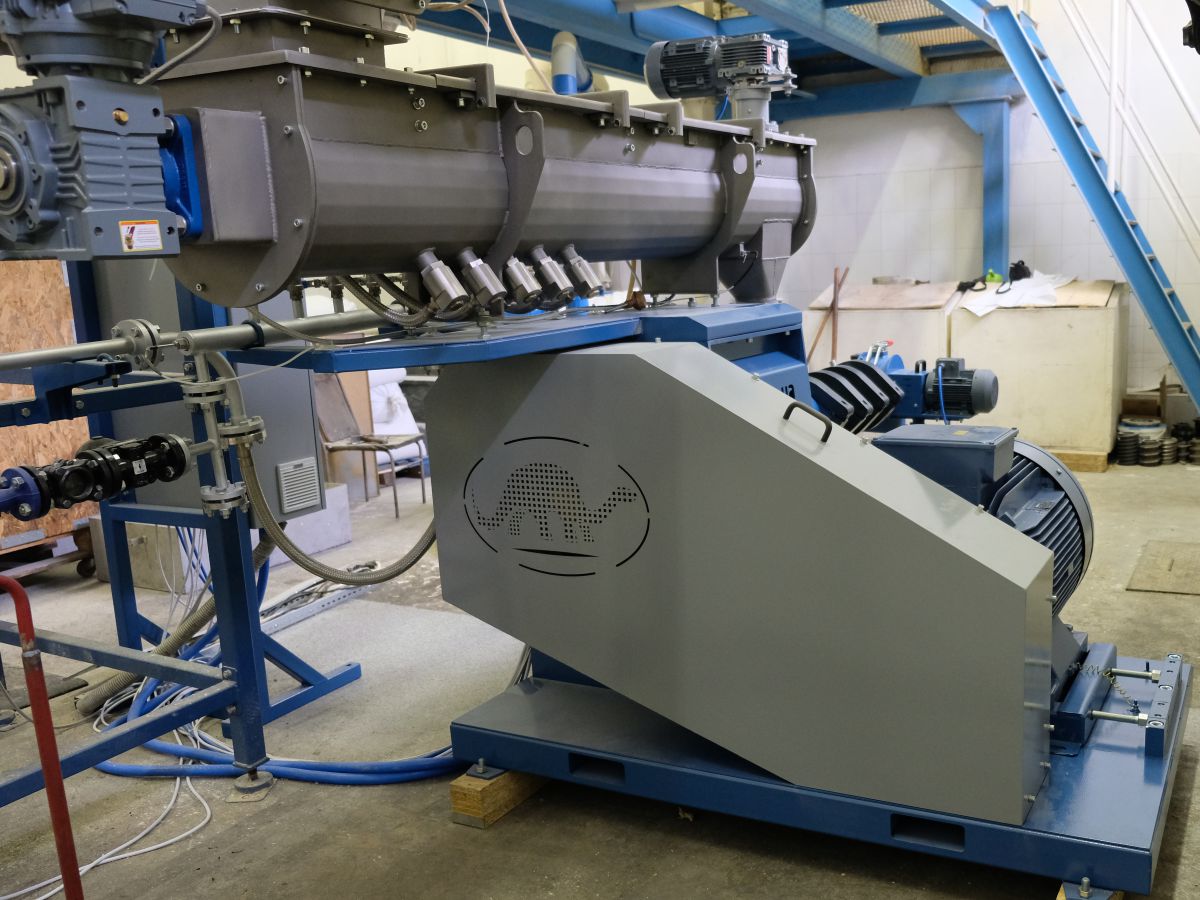

EXTRUDER E-1700

USED FOR

  • for production of high quality full-fat soybean meal and grain extrudates

FINAL PRODUCT

Full-fat soya, full-fat rape, extruded grain

RAW MATERIALS

Humidity of raw materials: 10 ... 16%

TECHNICAL SPECIFICATIONS

Capacity for soybean processing

1700 kg / hour

Humidity of raw materials

10 ... 16 %

Humidity of the product

15 ... 16 %

Steam consumption

0,08 kg per 1 kg of feed

Water pressure

0,2 – 0,6 (2-6) MPa (kg/cm²)

The vapor pressure supplied to the extruder

0,3 – 0,6 (3–6) MPa (kg/cm²)

Steam temperature

393 – 443 (120-140) K (°C)

Steam temperature

393 – 443 (120-140) K (°C)

Water consumption, not more

not more 40 L / h

The temperature in the working zone of the extruder

363 (90) K (° C)

Length

3125 mm

Width

1769 mm

Height

2379 mm

Weight (without steam)

2500 kg

Power (without steam)

90 kW

The usage of steam-conditioning for raw material, increases the production capacity of extruder, improves the quality of full-fat soybean meal and reduces the wear of the working parts of the extruder for about 20%

ADVANTAGES

  • high quality of full fat soybeans
  • low level of anti-nutritional soy factors such as trypsin inhibitors to 10 ... 15%
  • the digestibility of soy protein is increased

SEQUENCE OF OPERATION

Preliminary crushed soybeans or other grain crops are supplied into hopper and preconditioner of extruder.

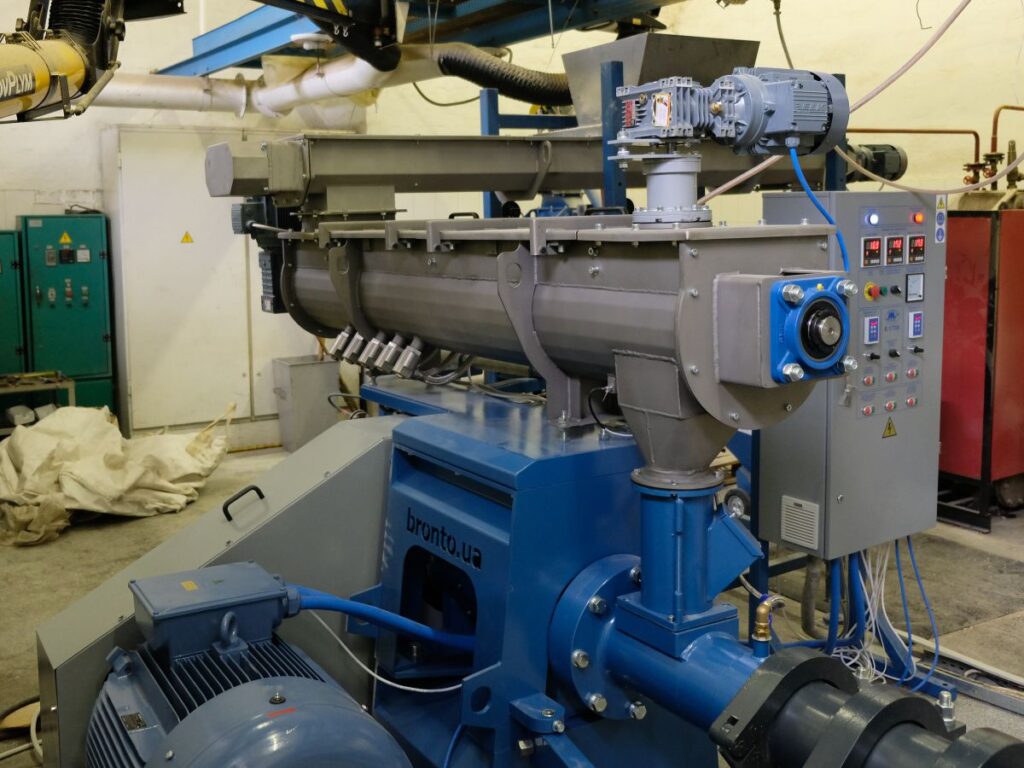

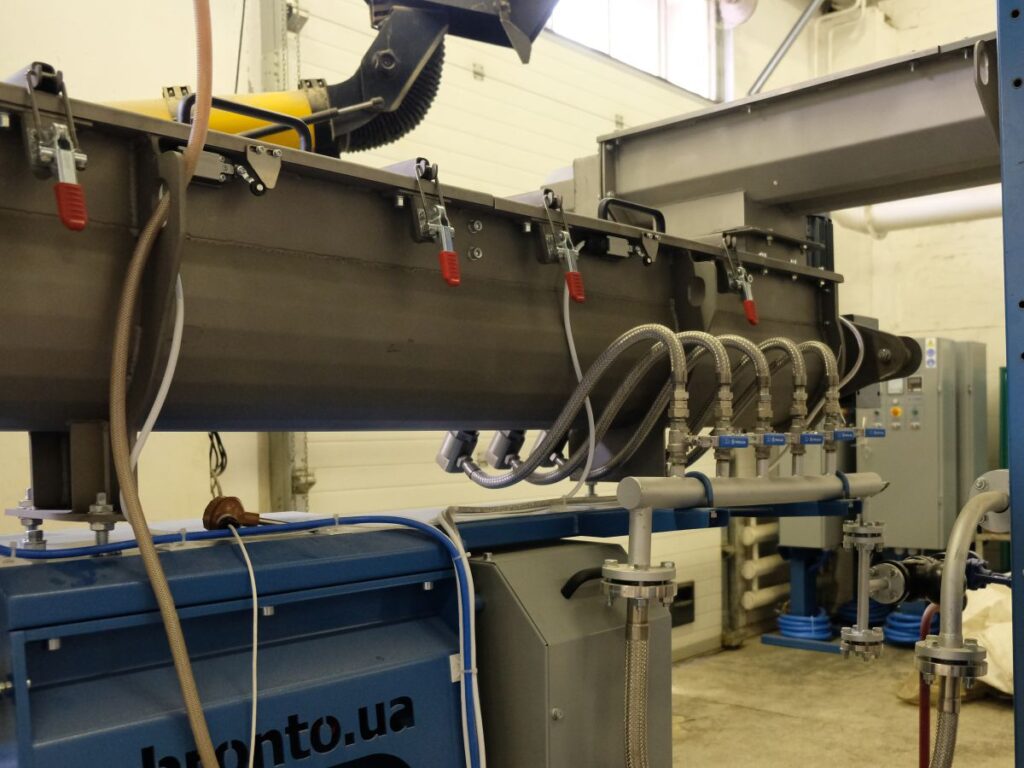

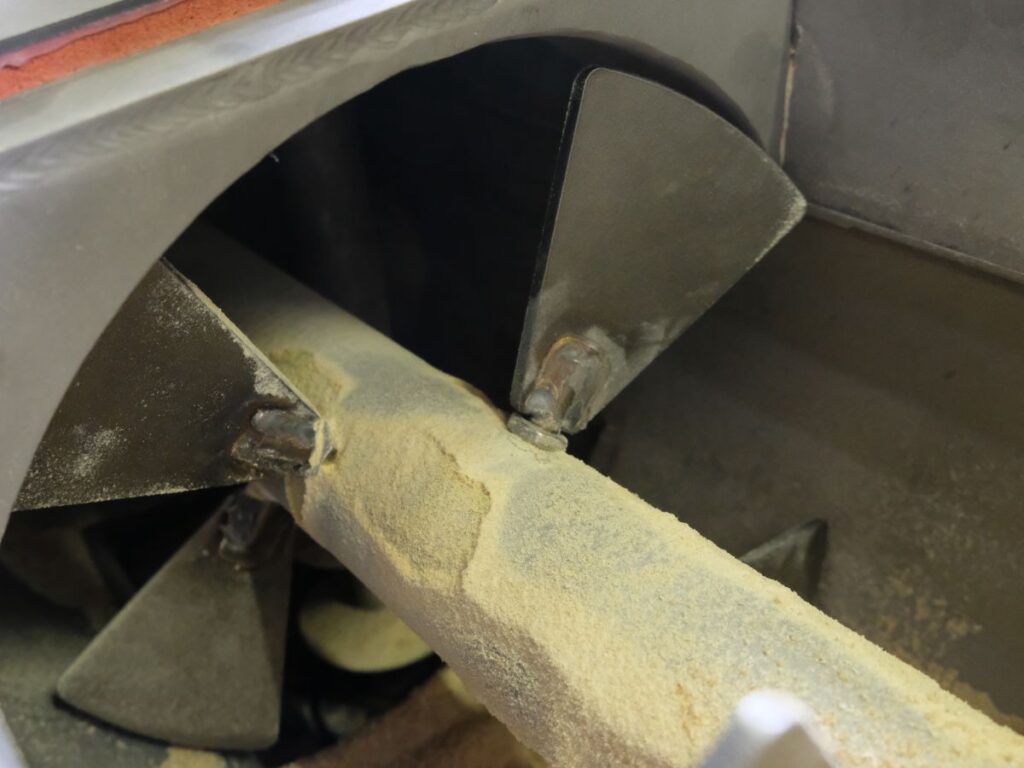

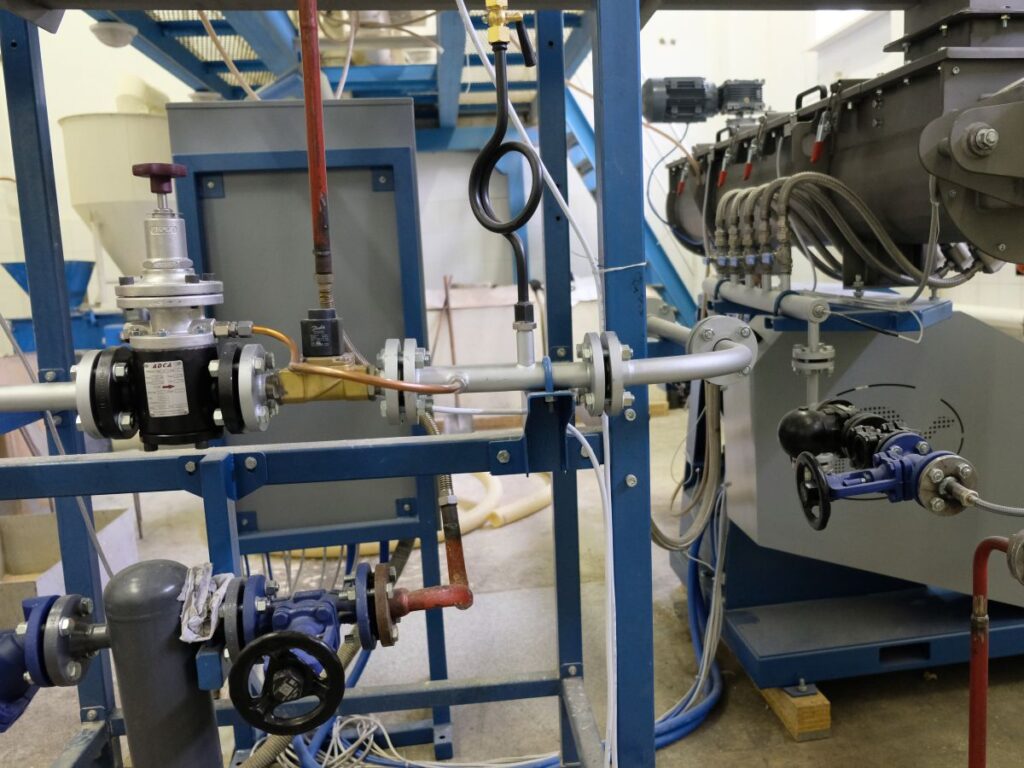

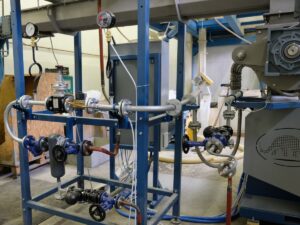

The preconditioner is a component that pre-heats, moistures and at the same time mixes and injects hot steam into raw material. Dry steam pressure is 0.2-0.5 MPa and temperature – 110-130 °C. The raw material is softened and heated to 65-75 °C.

Preconditioning  increases the production capacity of extruder, improves the quality of raw material and reduces the wear of the working parts over 20%.

Extrusion is a process of thermal treatment, sterilization, dehydration, texturing and granulating of the final product.

Raw material is heated by steam during a short-term (4-6 sec.) and pressed to 30 atmospheres. During the time of thermal process (which is less than 6 seconds) the protein and lysine content is not reduced.

Moisture is vaporized and starch cells are ruptured and availability of carbohydrates action of digestive enzymes is increased. In the process of extrusion the amount of protein increases.

The output of finished product increased by 3.4% compared to dry extrusion. After extrusion with preconditioning, for example full-fat soya does not require any drying.

Short but intensive heat, moisture and pressure is an effective way to destroy salmonella and other pathogenic bacteria, fungi and mould.

QUALITY ASSURANCE

Warranty period is 1 year

  • all machines are certified according to ISO 9001: 2015
  • our extruders are designed for continuous and trouble-free operation
WARRANTY SUPPORT

Preconditioning is an important stage in technological process; its purpose is moisturizing and heating of ground soybeans by hot dry steam with pressure of 0.2-0.5 MPa and a temperature of 110-130 °C. Under this influence raw material is softened and heated to 65-75 °C.
